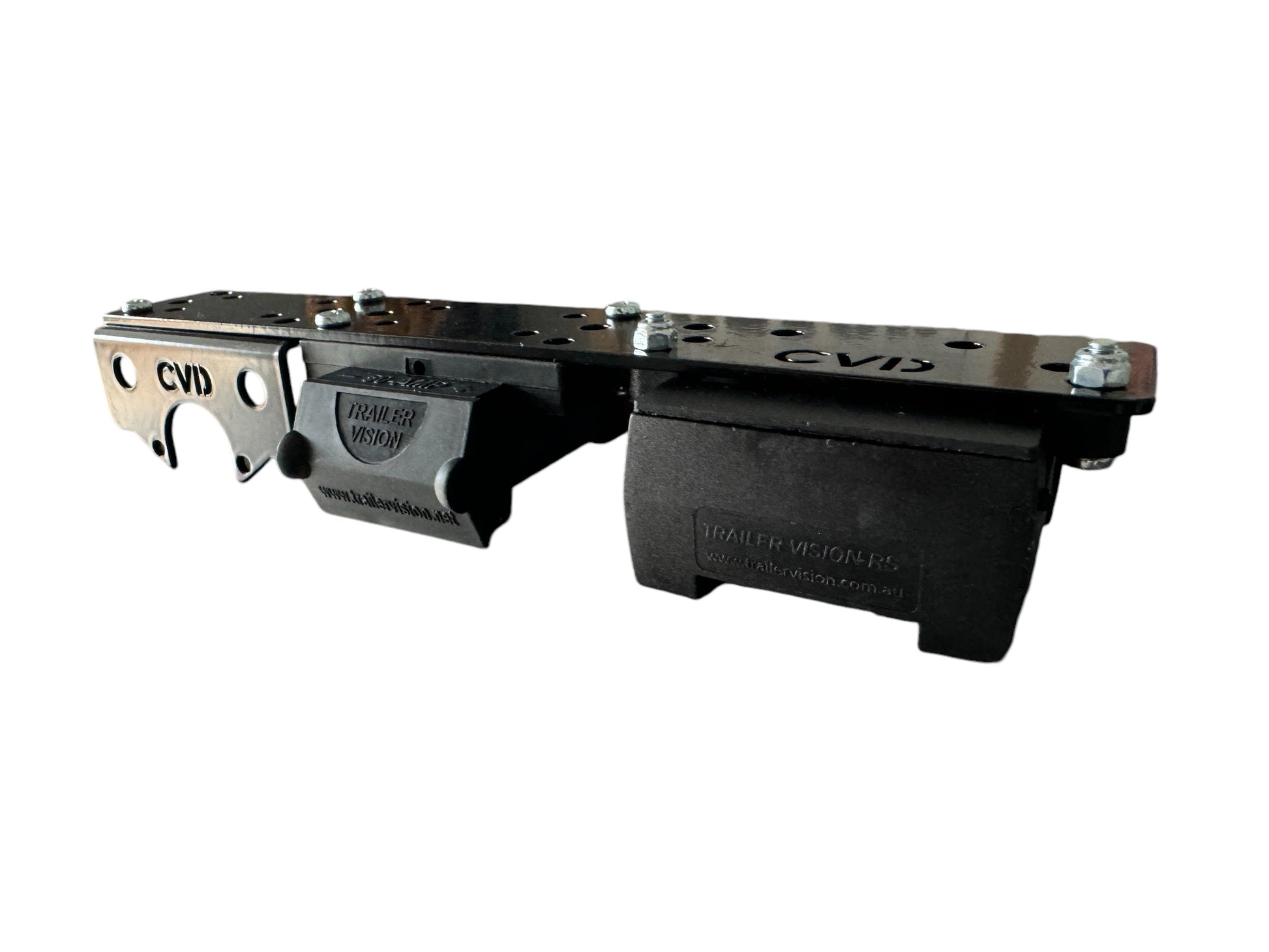

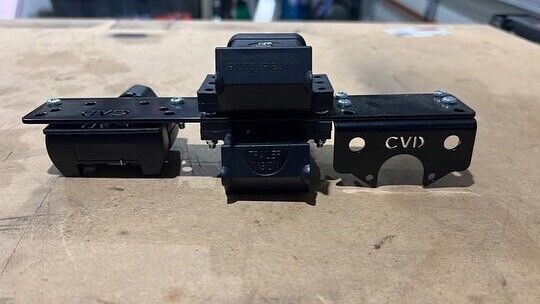

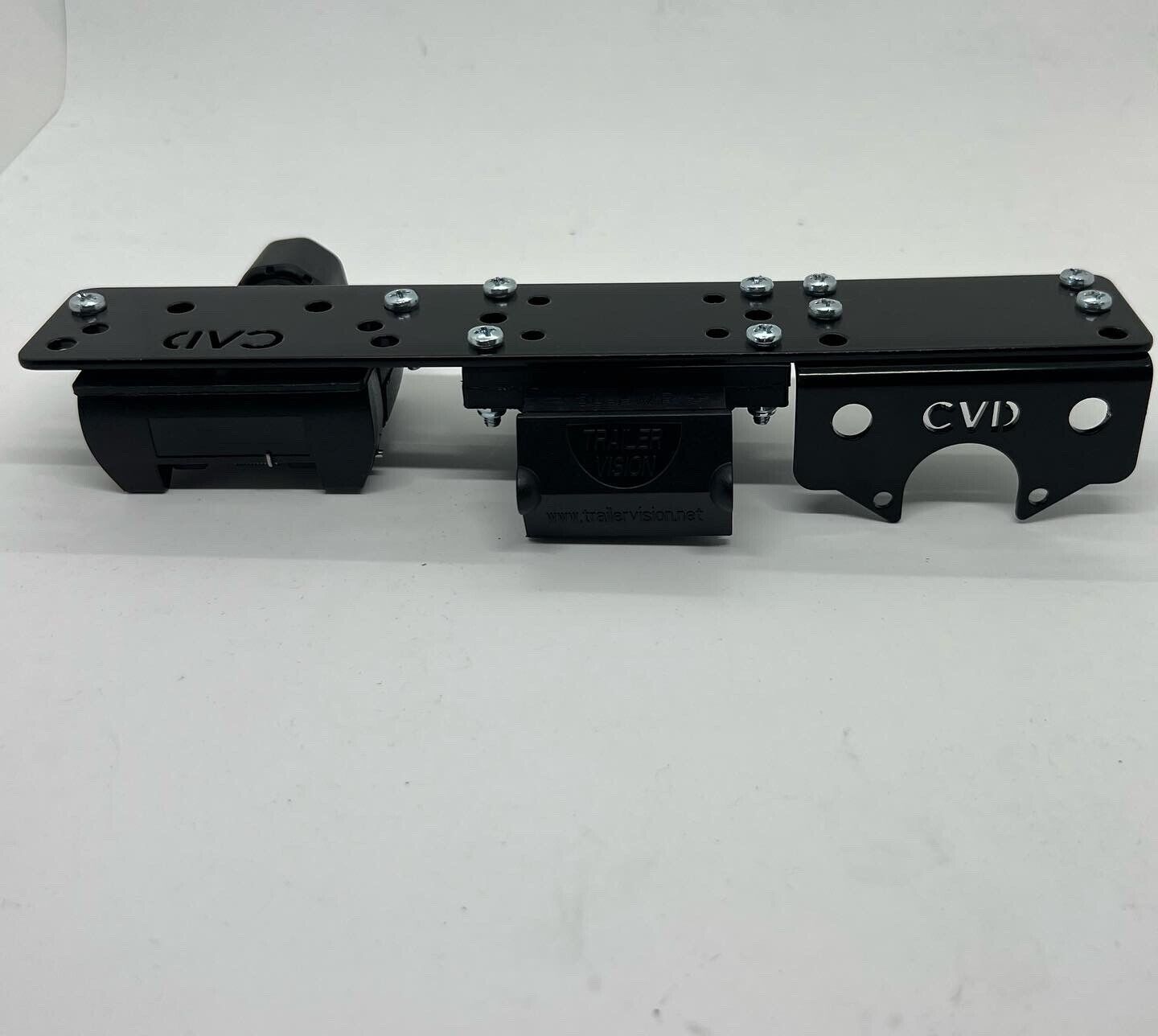

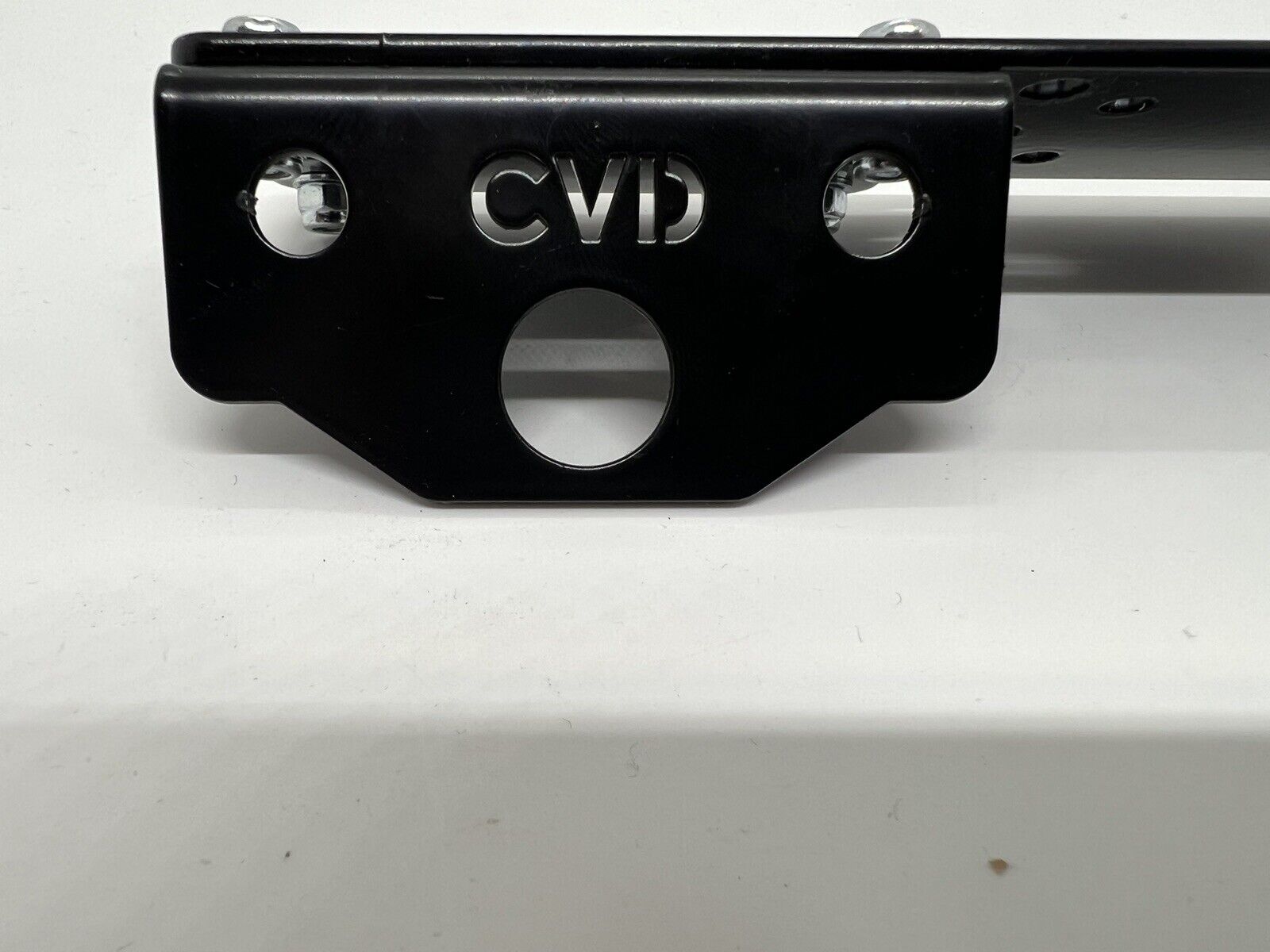

UNIVERSAL DOUBLE TRAILER BRACKET
LARGE MK-1 TRAILER BRACKET KITS
Optional 7 or 12 Pin Flat Plugs

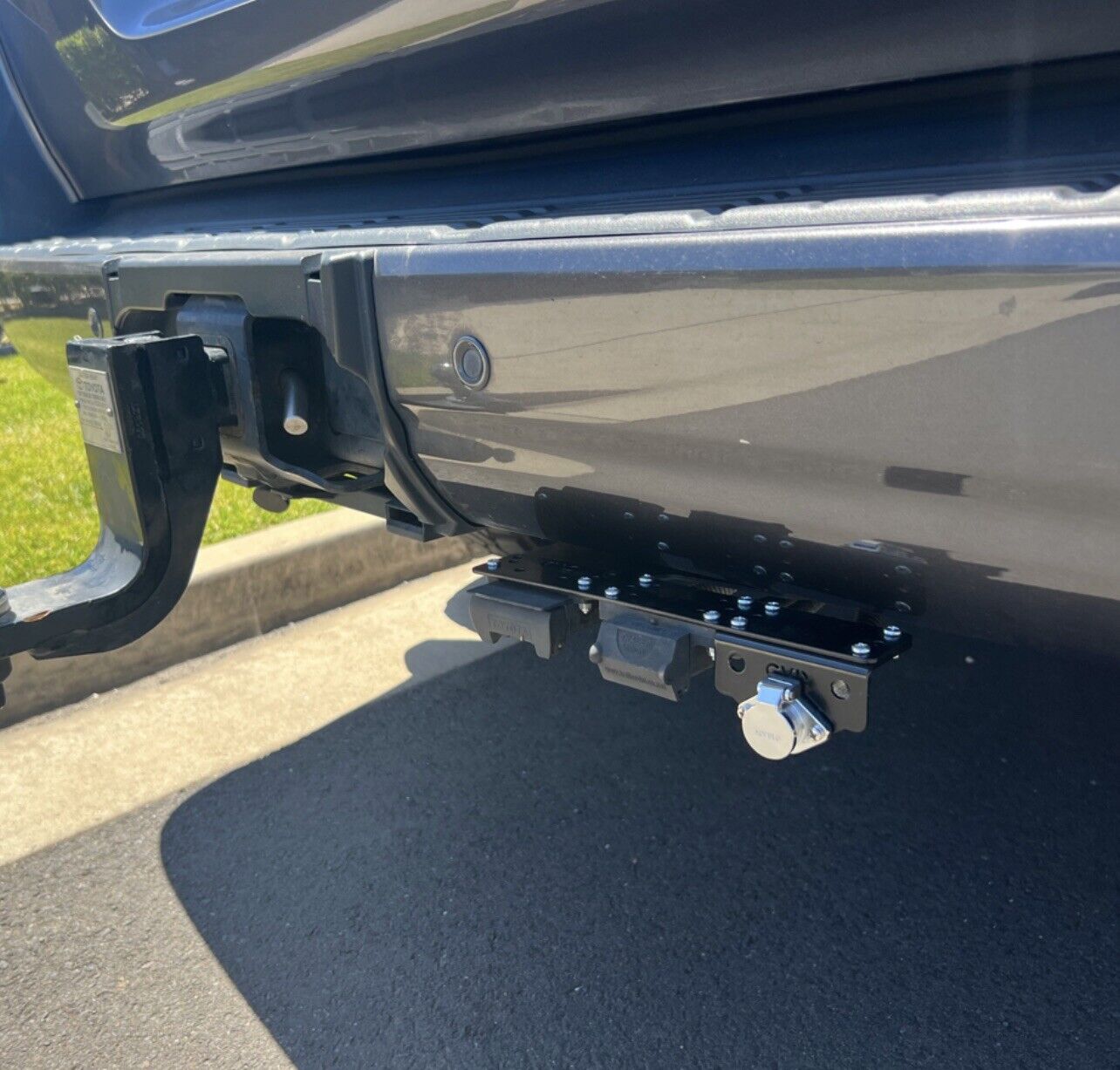

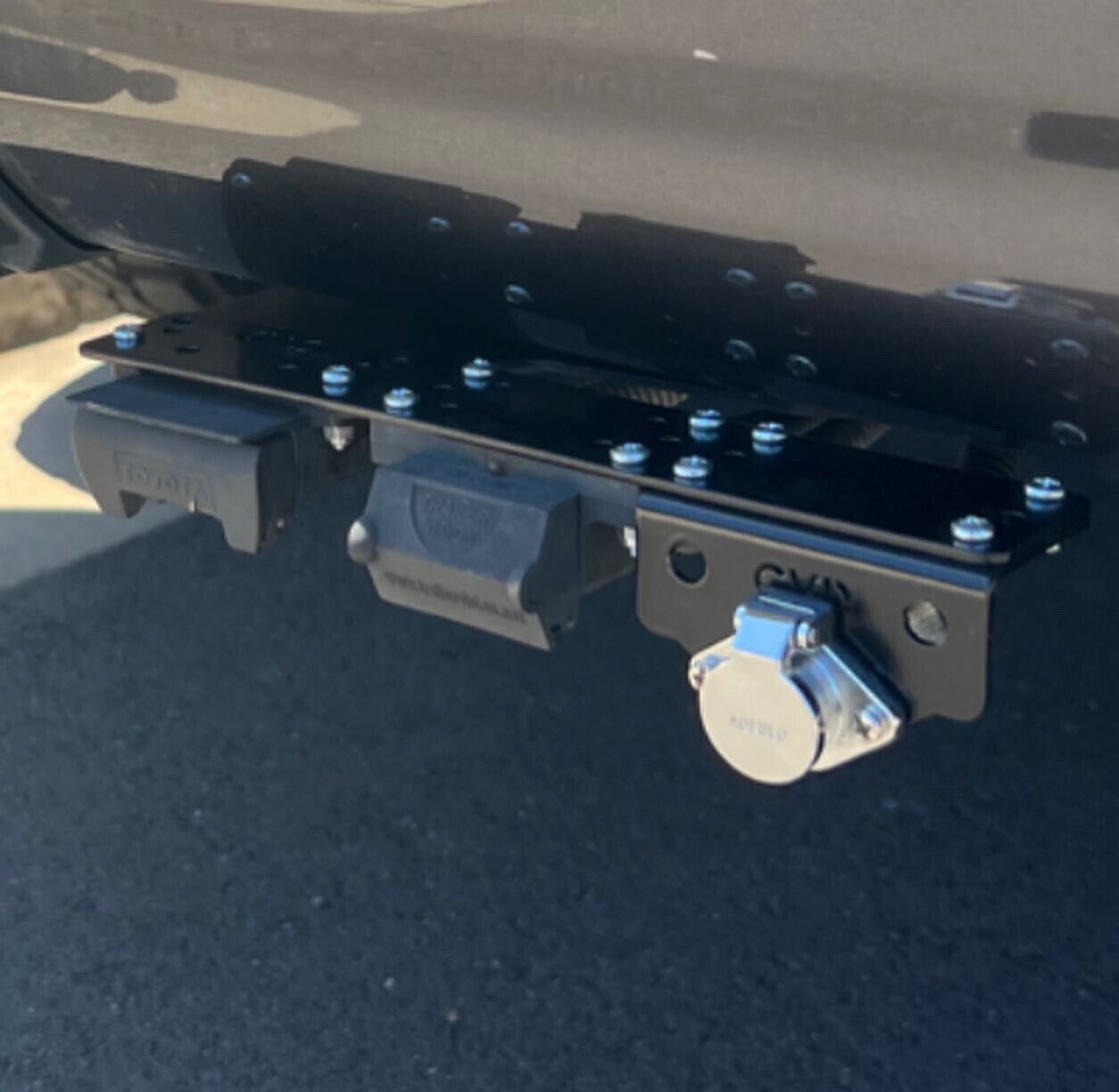

DESIGNED FOR MOUNTING TO REAR OF YOUR VEHICLE:
Suits 7 pin or 12 Pin Flat Plugs
These kits include 1 x 12 Pin Female, if your after a 7 pin checkout our 7 Pin Listing

Accessorize with either of the following options:

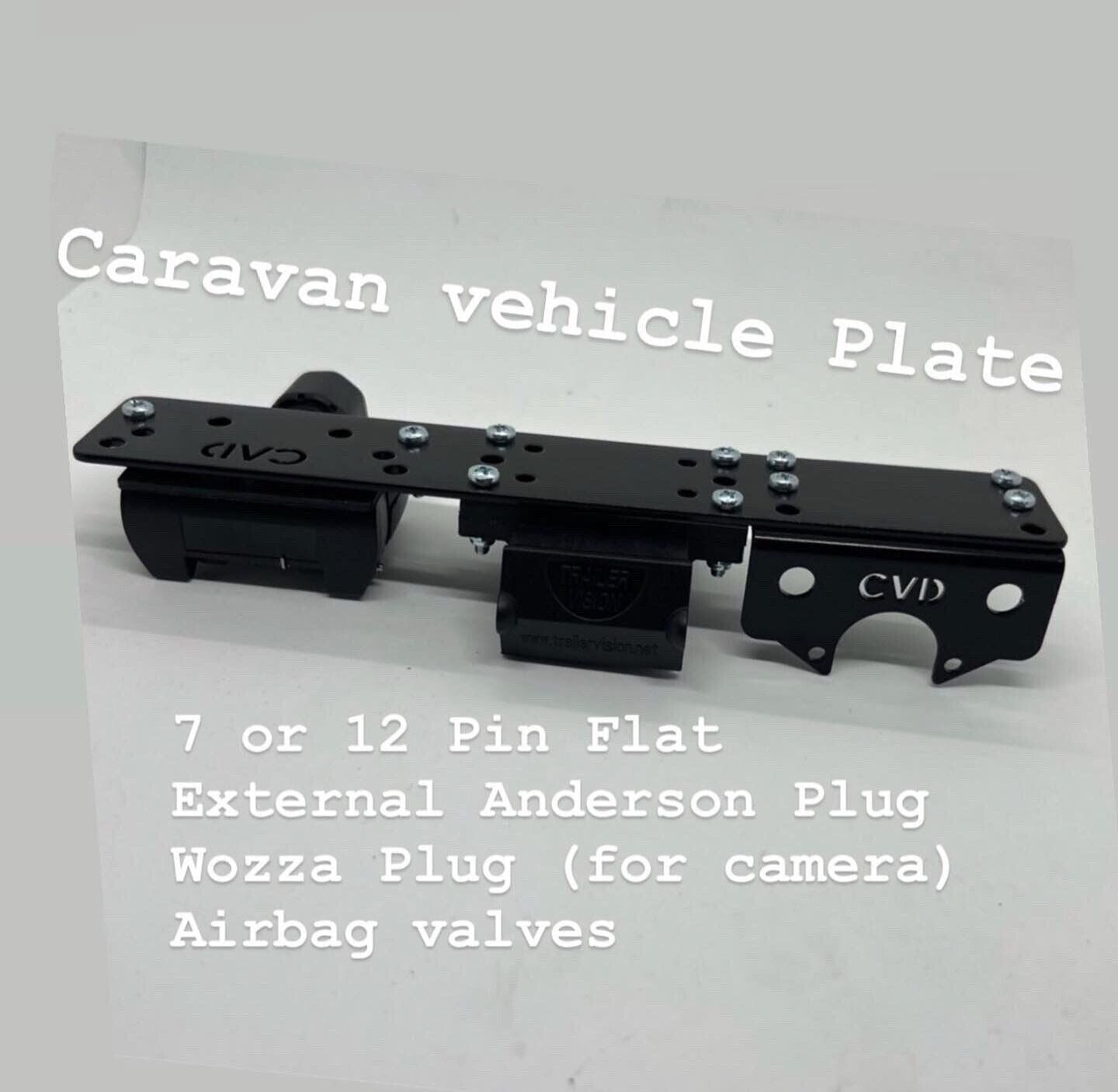

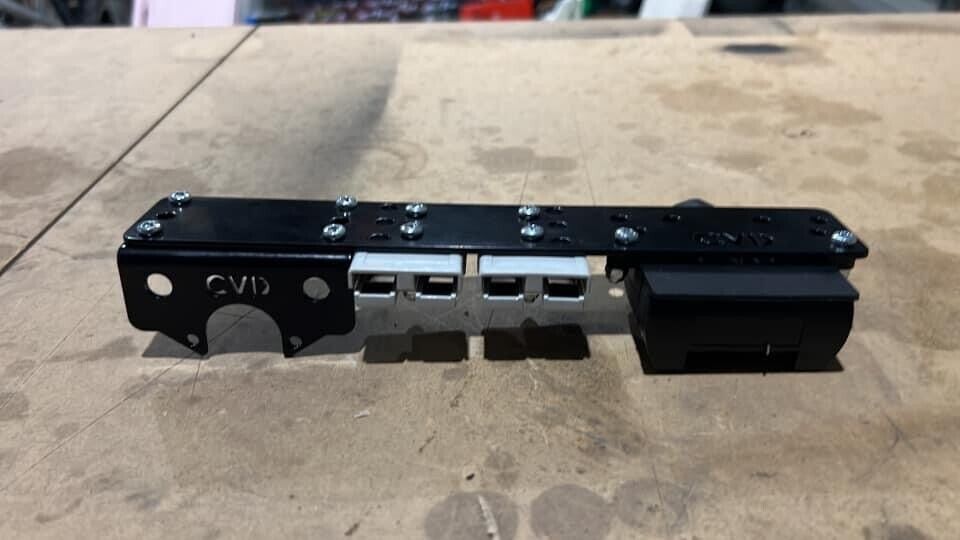

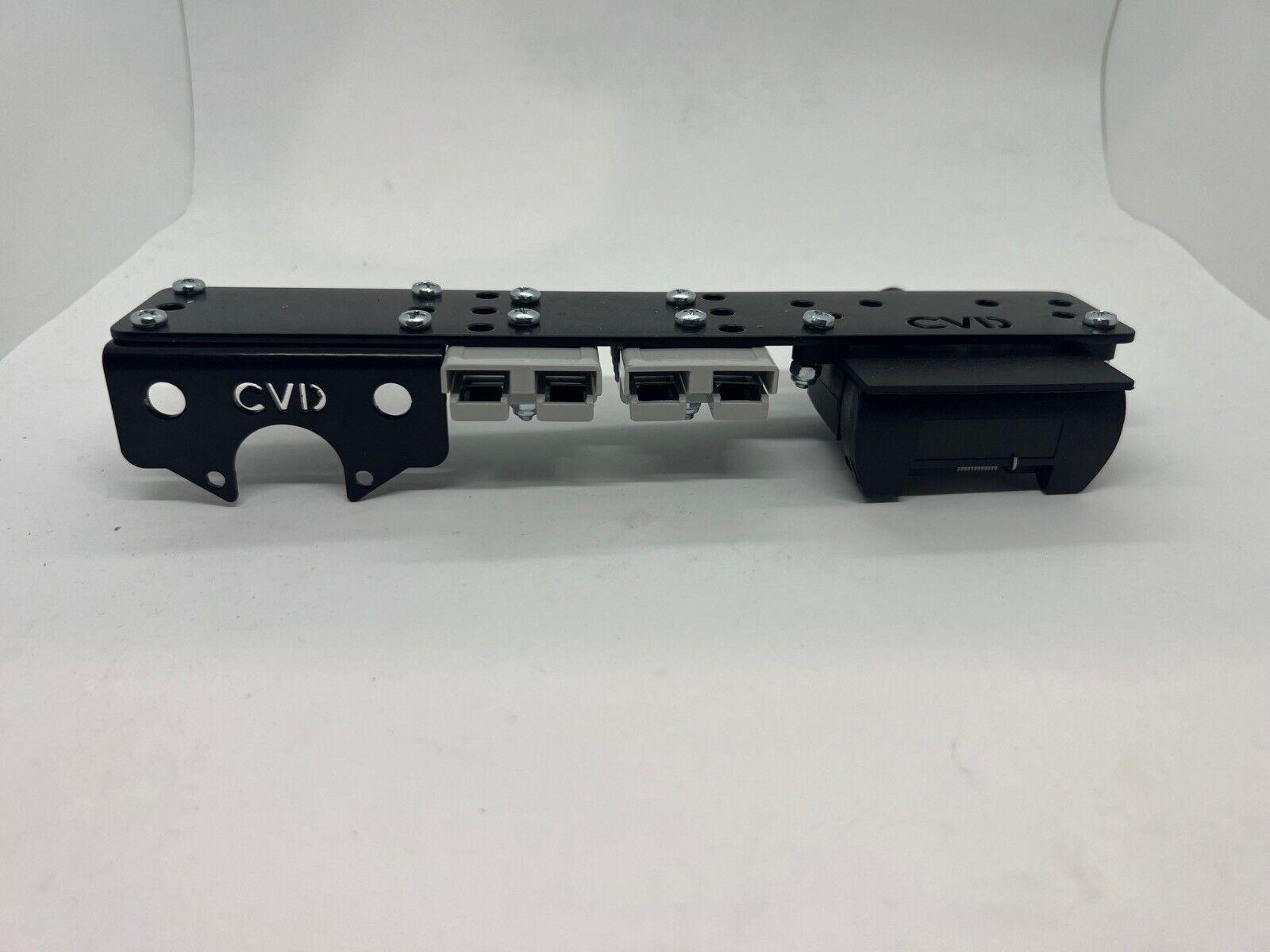

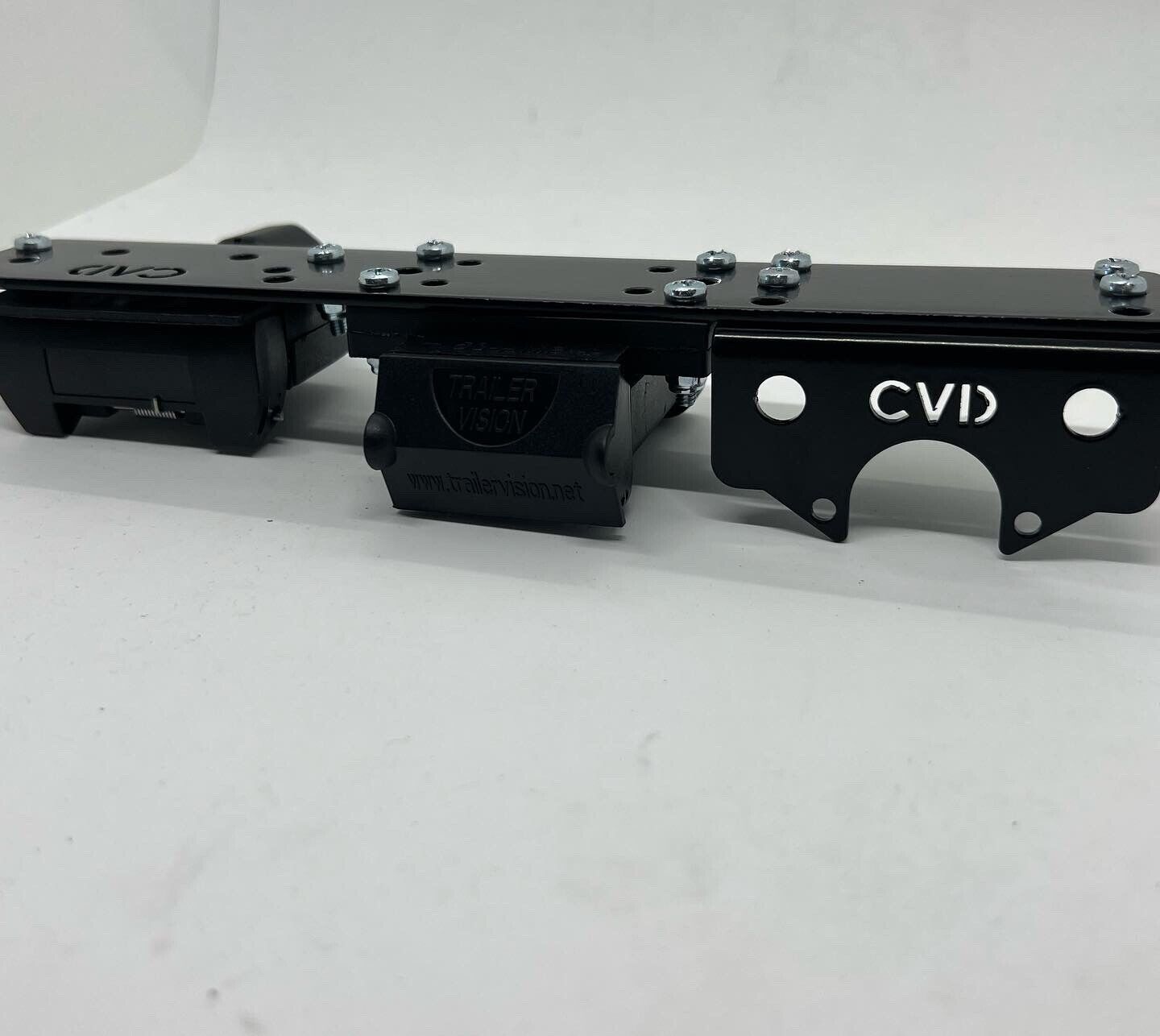

Position 1:

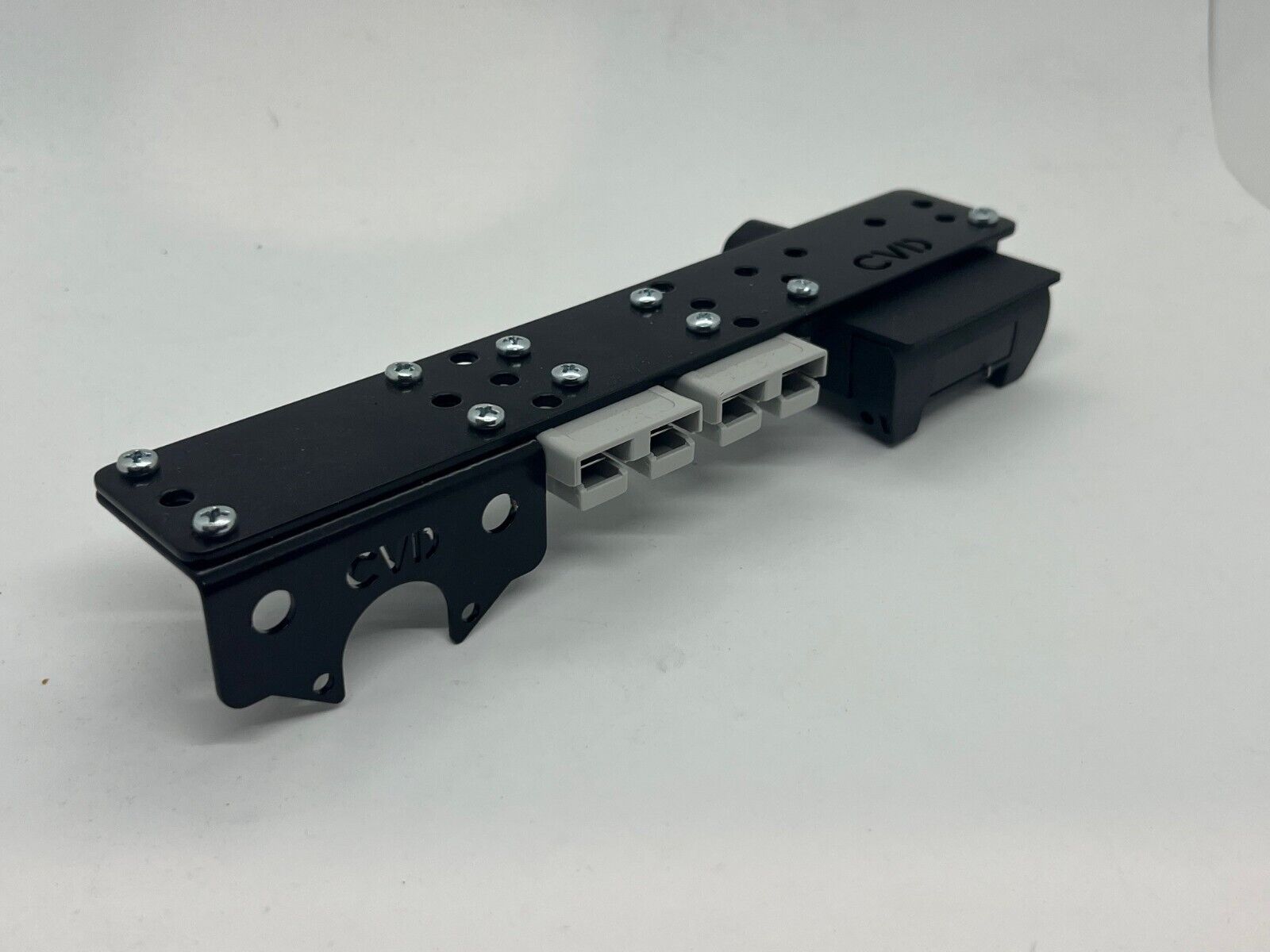

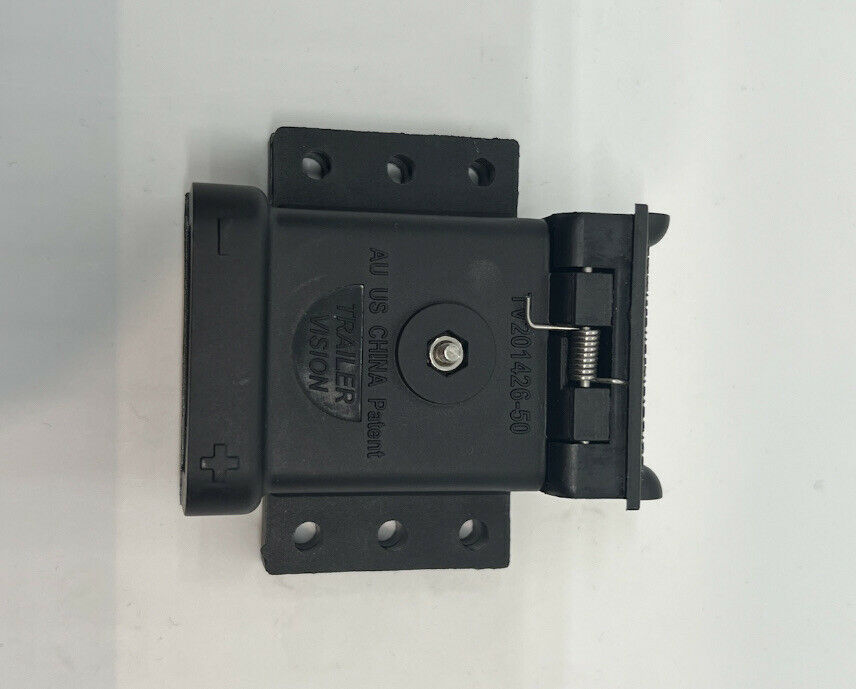

1 x 50A ANDERSON PLUG IN AN EXTERNAL ANDERSON PLUG HOLDER

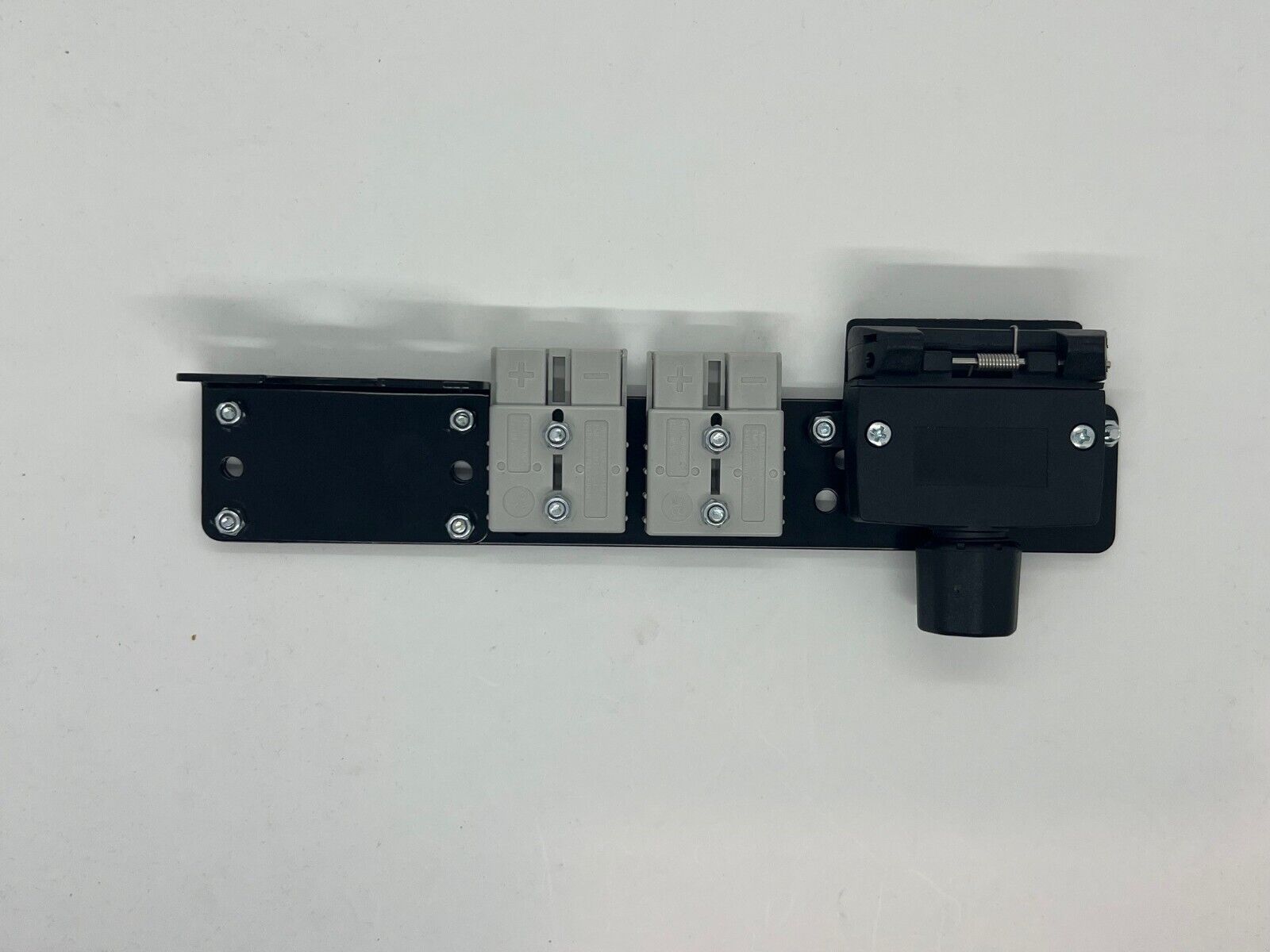

2 x 50A Anderson Plugs (No Covers)

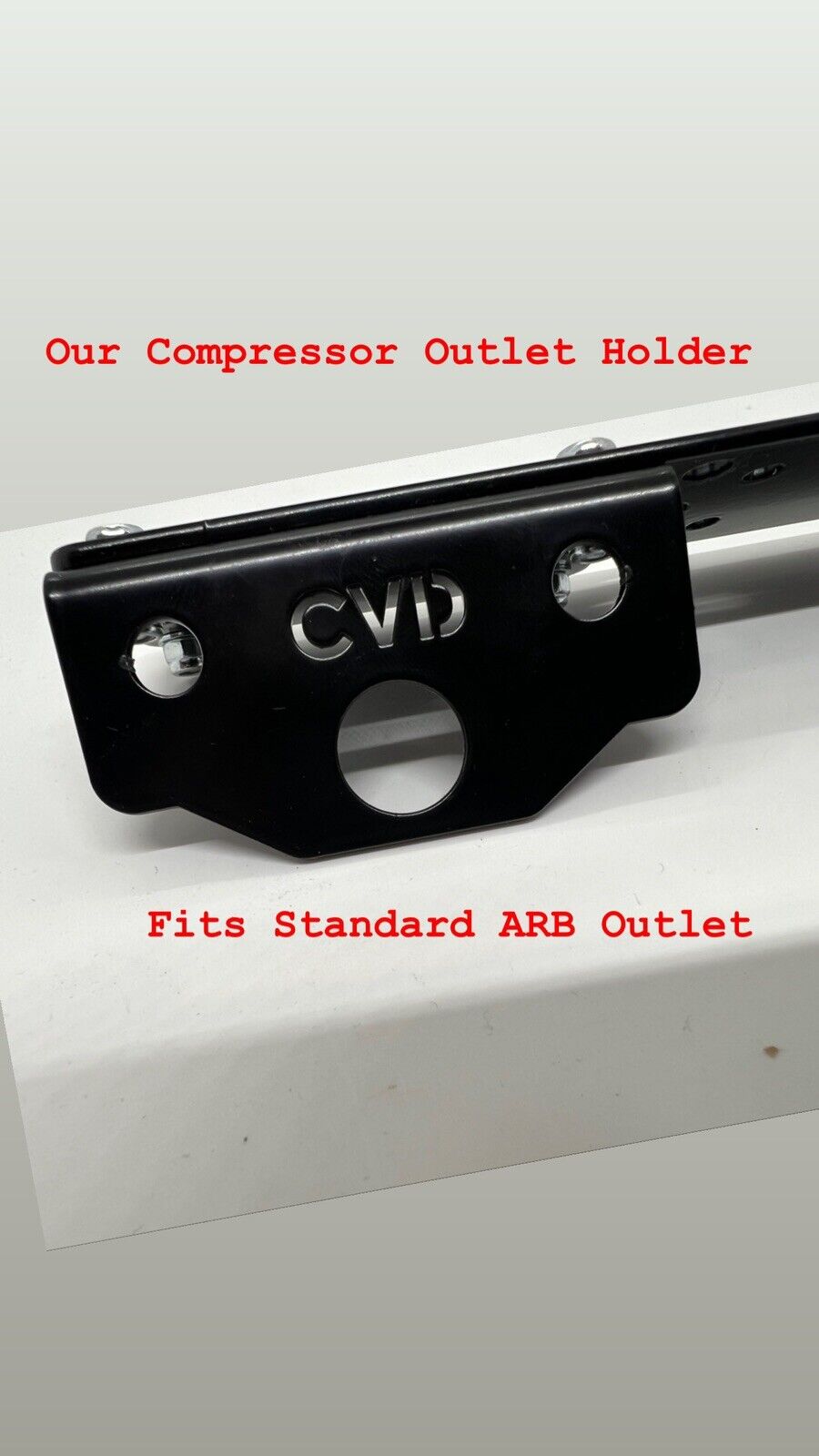

1 x ARB Coupling Holder (with Airbag Valve Holders)
1 x Wozza Plug Holder (with Airbag Valve Holders)

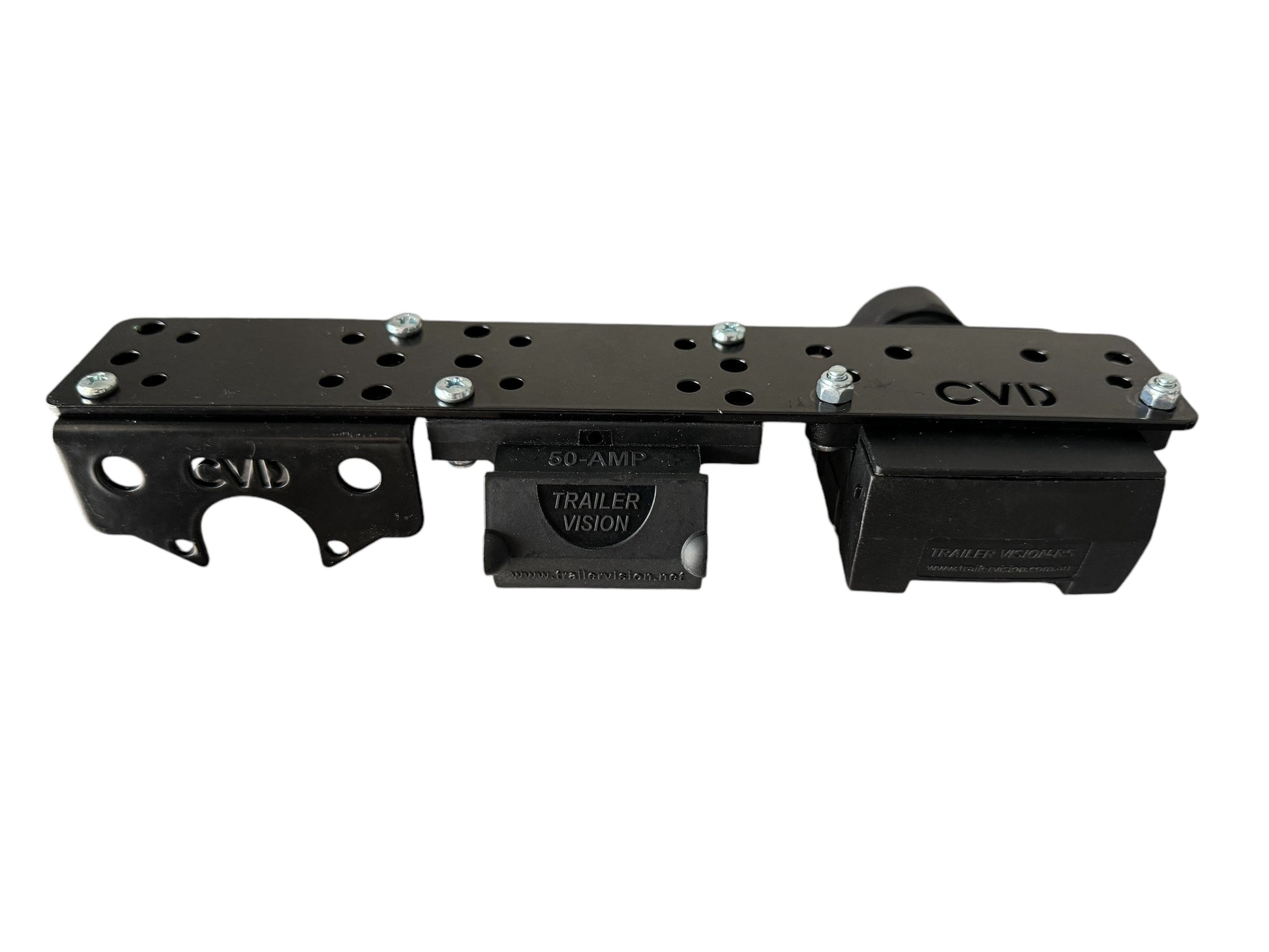

Position 2:

1 x 50A ANDERSON PLUG IN AN EXTERNAL ANDERSON PLUG HOLDER
1 x ARB Coupling Holder (with Airbag Valve Holders)
1 x Wozza Plug Holder (with Airbag Valve Holders)

You can have any of the above combinations using the standard Double Bracket

Plate Suitable for:

1 x 7 or 12 Pin Flat Trailer Plug Connector

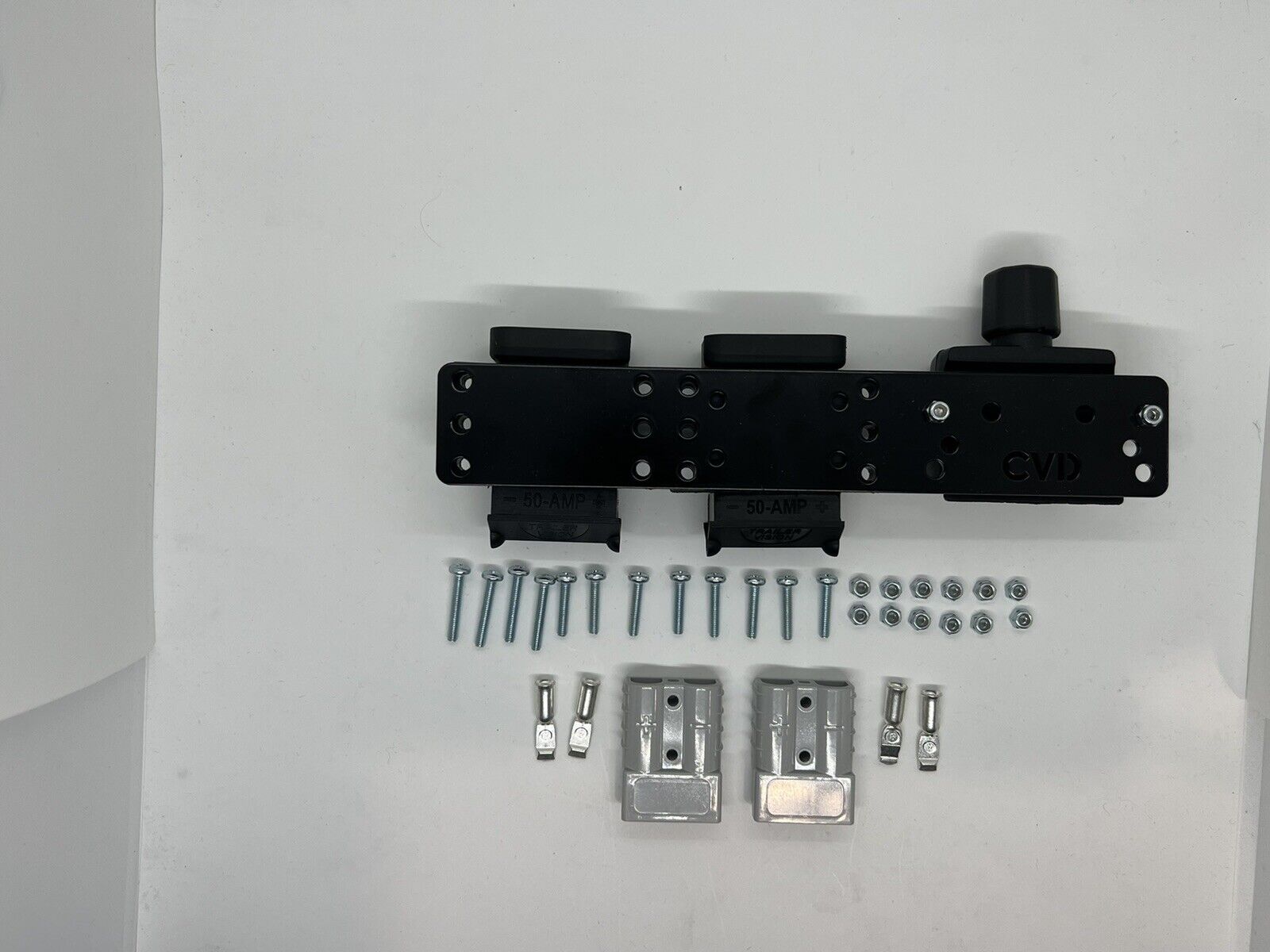

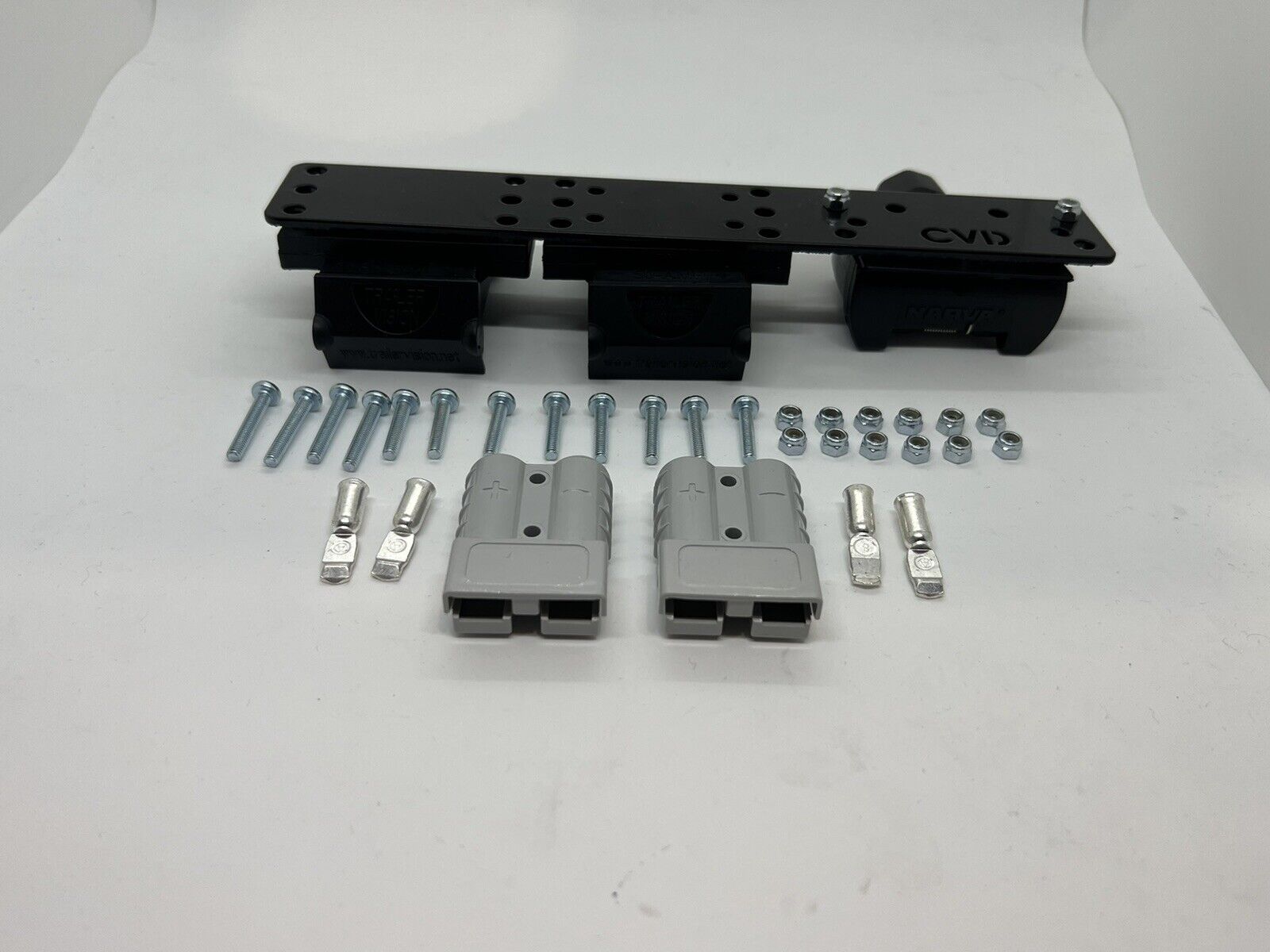

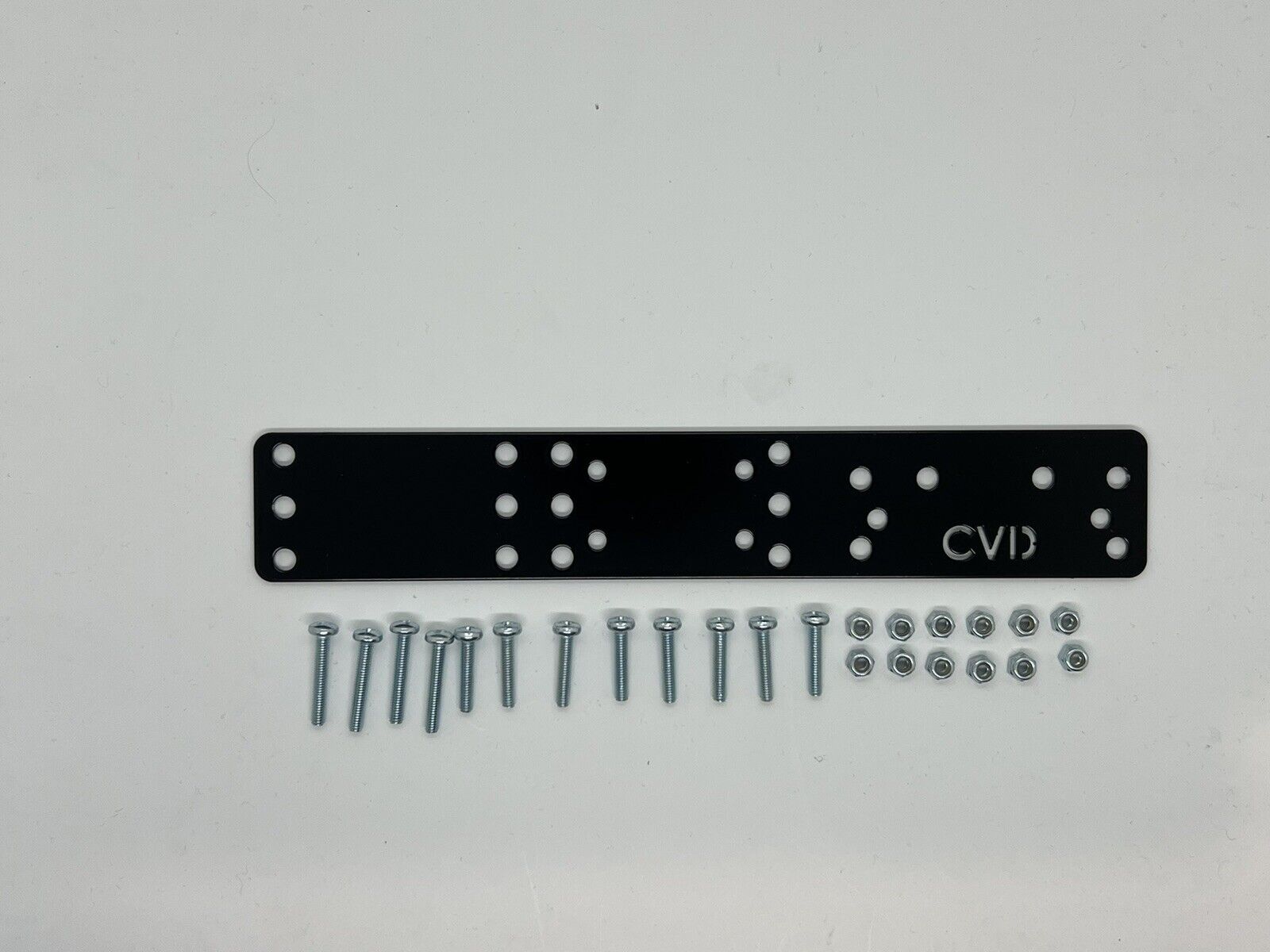

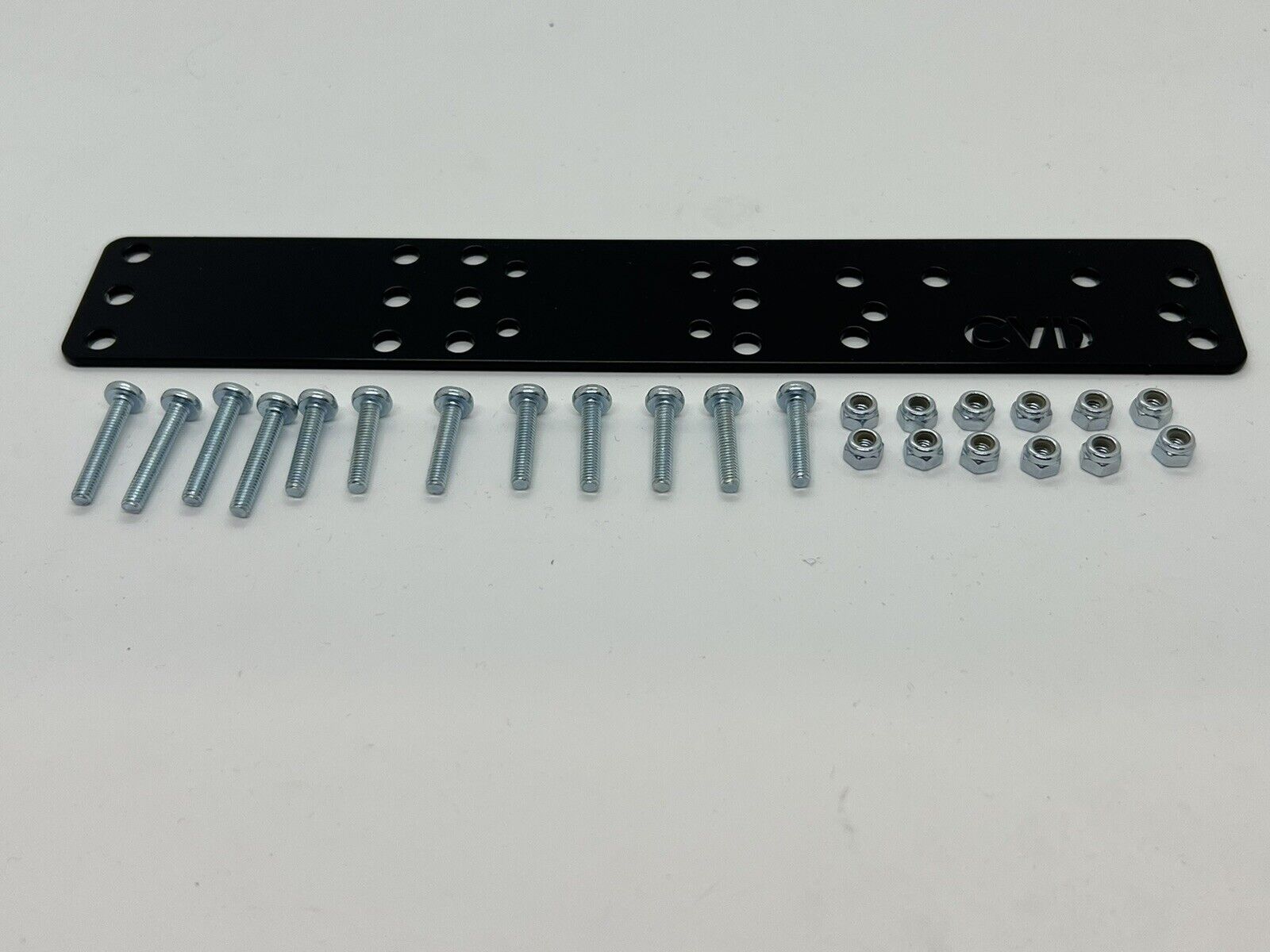

All Kits Include the following:

1 x Satin Black Plate (Double/Large)
1 x 12 Pin Flat Female Connector
8 x M4x20mm Phillips Head Bolts
4 x M4x25mm Phillips Head Bolts
4 x M4x12mm Phillips Head Bolts
12 x M4 Nylock Nuts
Plus the option you choose above

Kits attached to this Listing have varied attachments & Add-On's included with each kit option. Please check the kit correctly that it suits the setup you're after.

MUTLIPLE PLATE SETUPS
A Single Plates can be used in conjunction with the Large Plate to allow for more Accessories. The mounting of the Single Plate needs to go the other side of the 7 or 12 Pin Plug. (Check you have room underneath and beside your current plug for this setup).

We do also sell an Extension Plate which can go onto the end of either the Single or the Double Plate to hold: 1 x 50A Anderson in external holder or 1 x ARB Holder or 1 x Wozza Plug Holder.

DESCRIPTION:
Material: 2mm Plate Steel
Colour: Satin Black
Paint Type: Powder Coated
Description: CNC Laser Cut

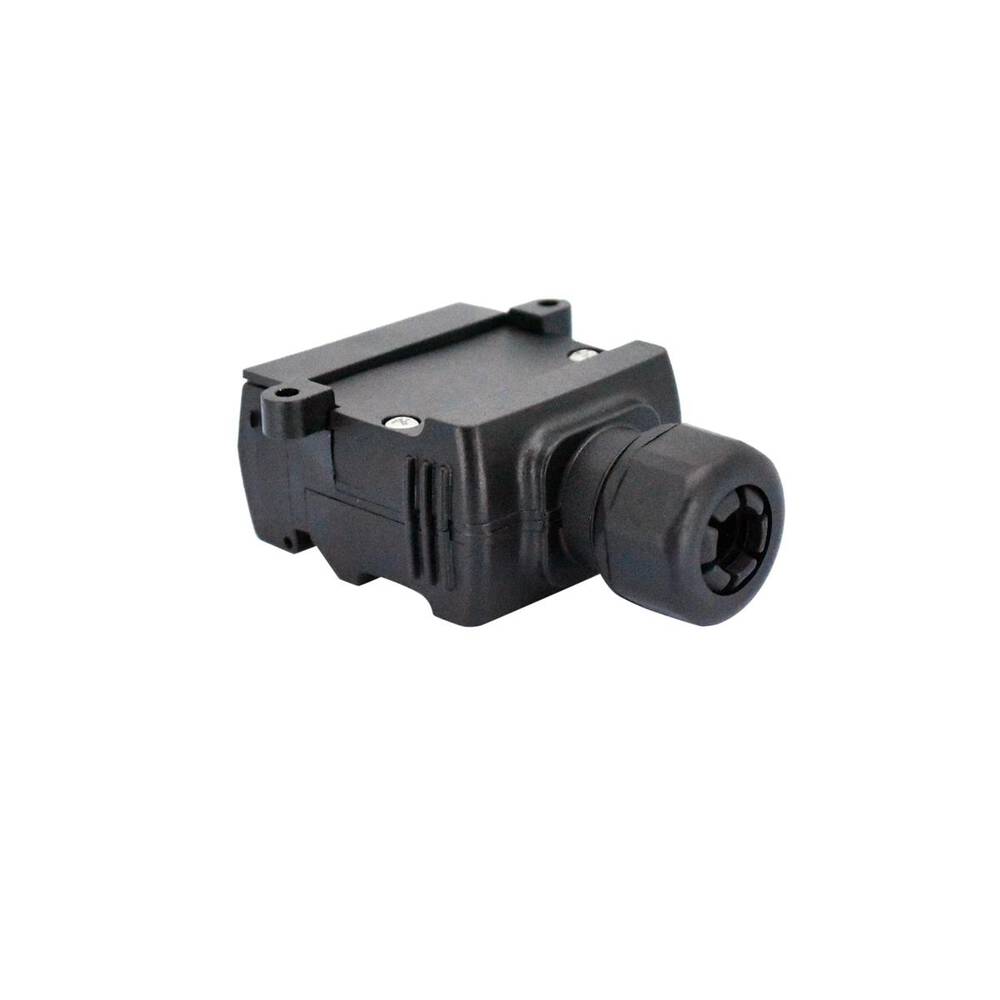

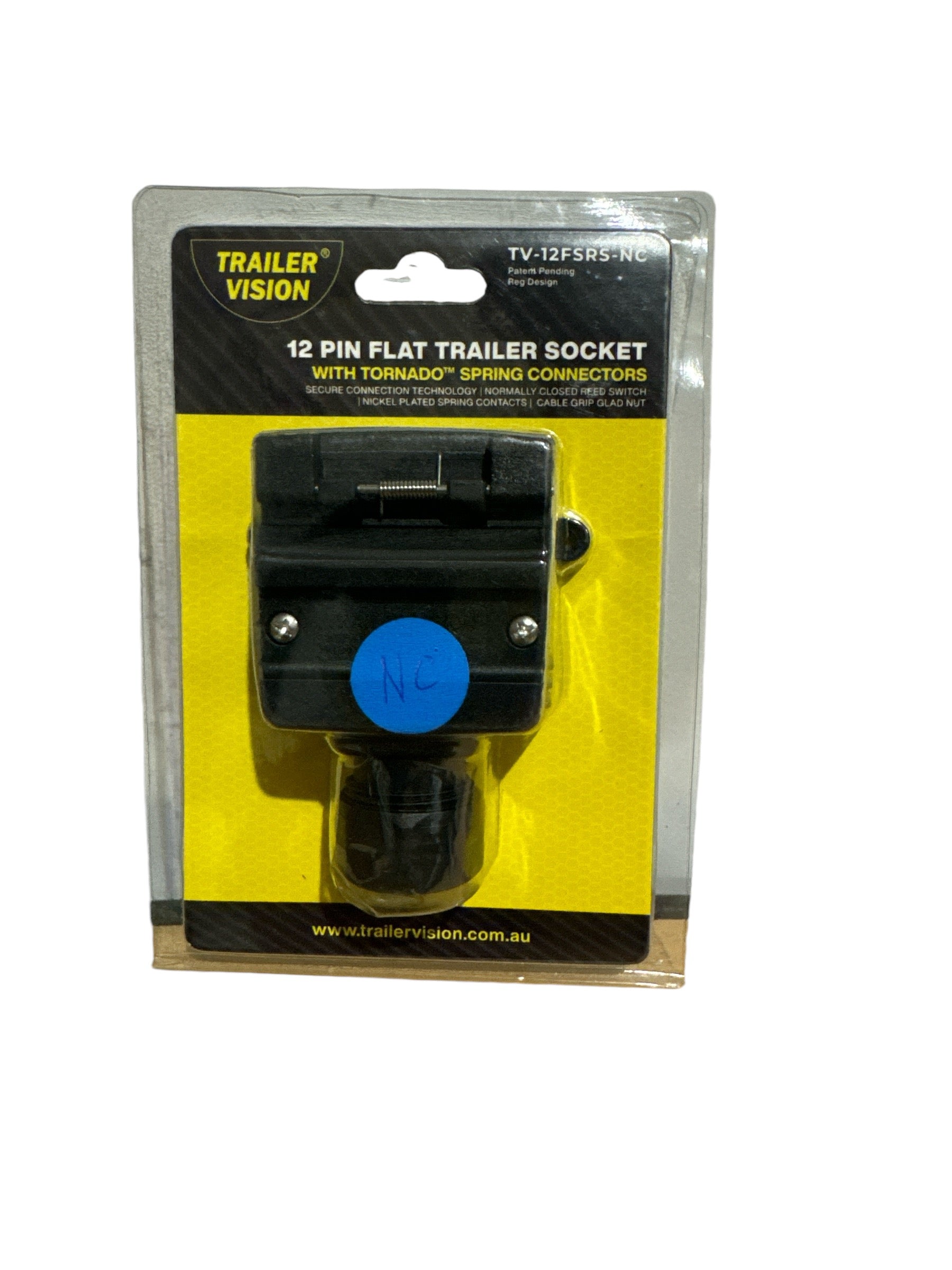

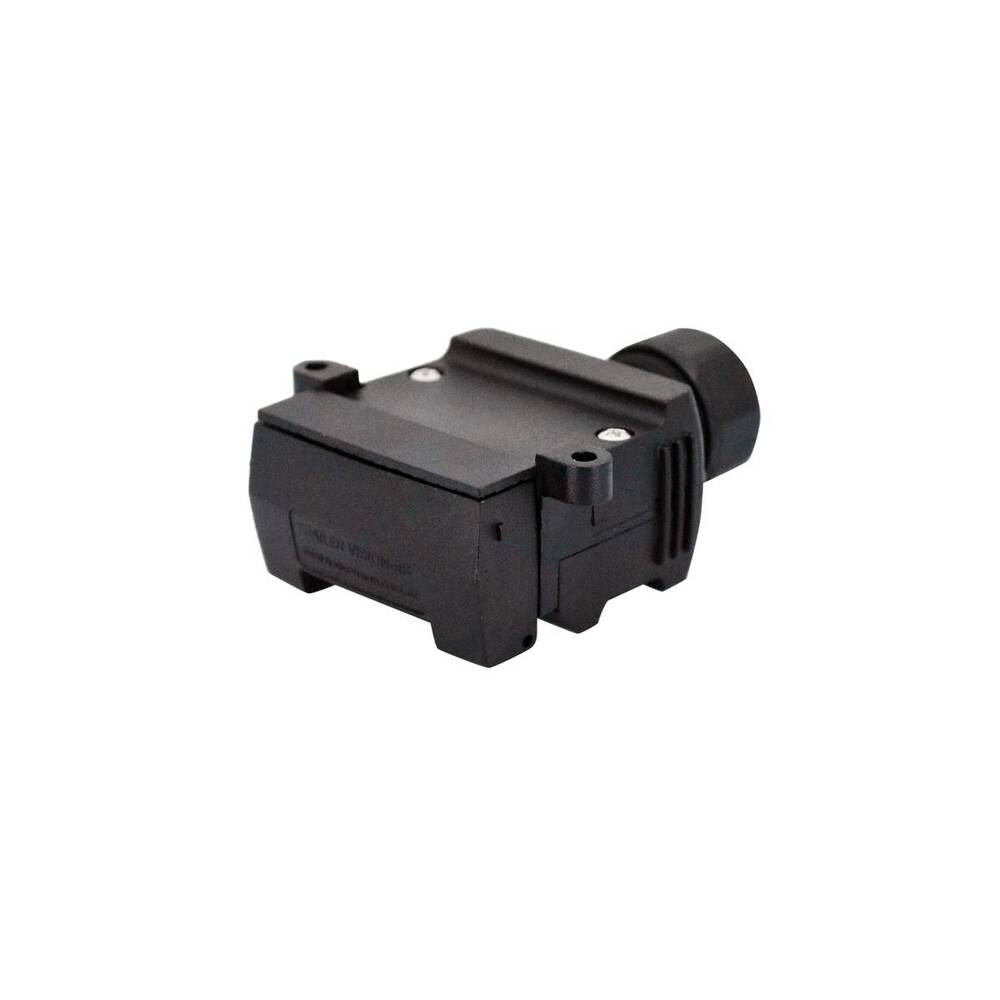

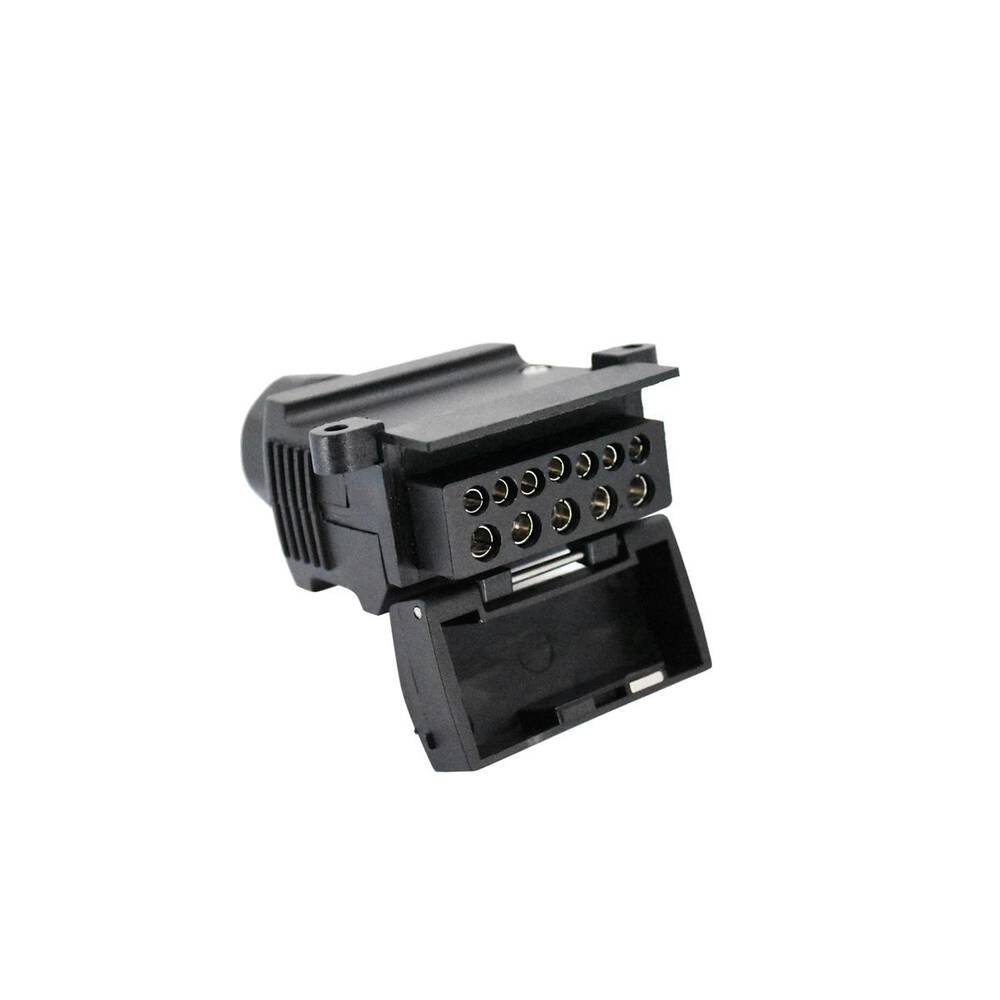

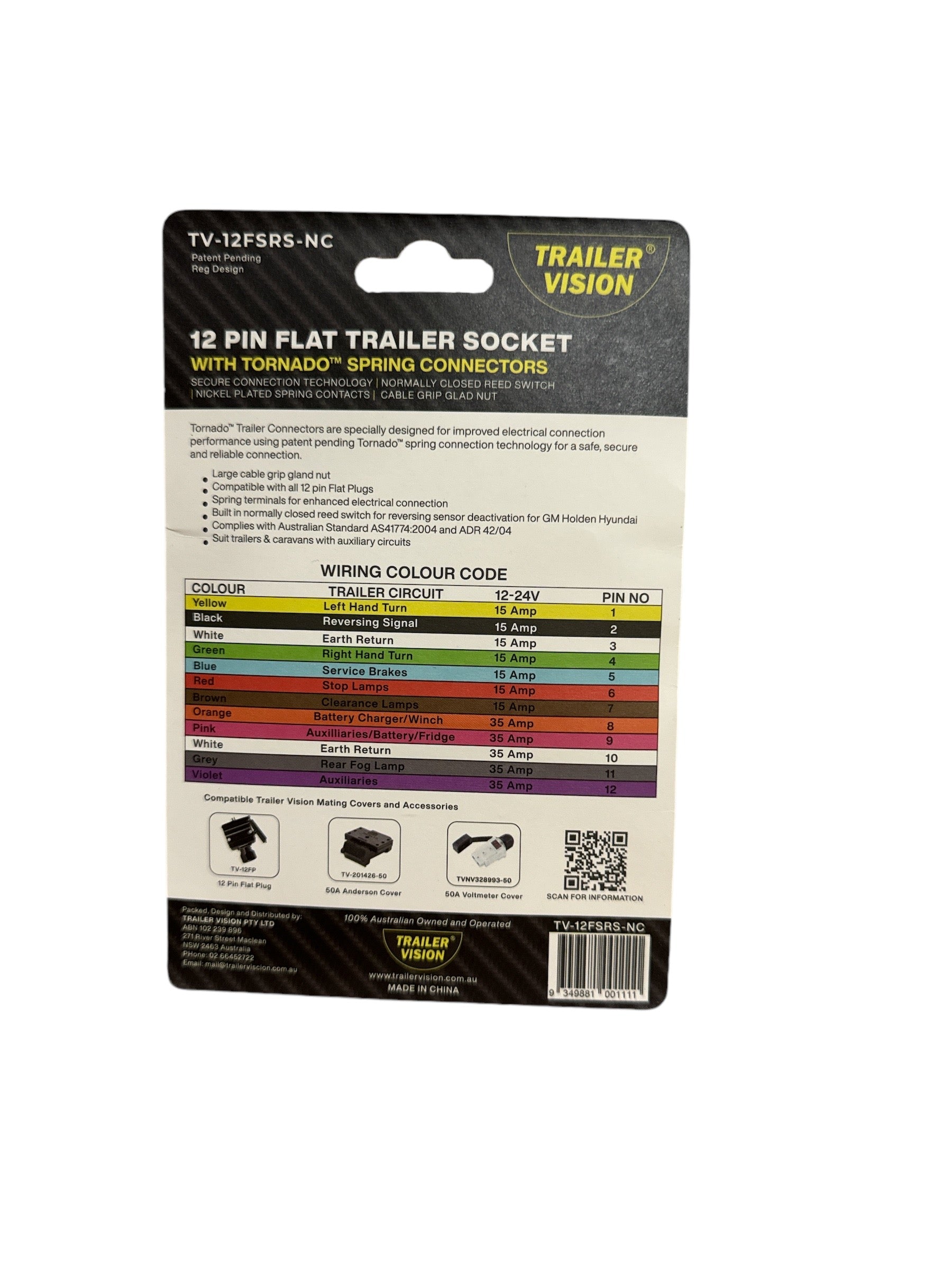

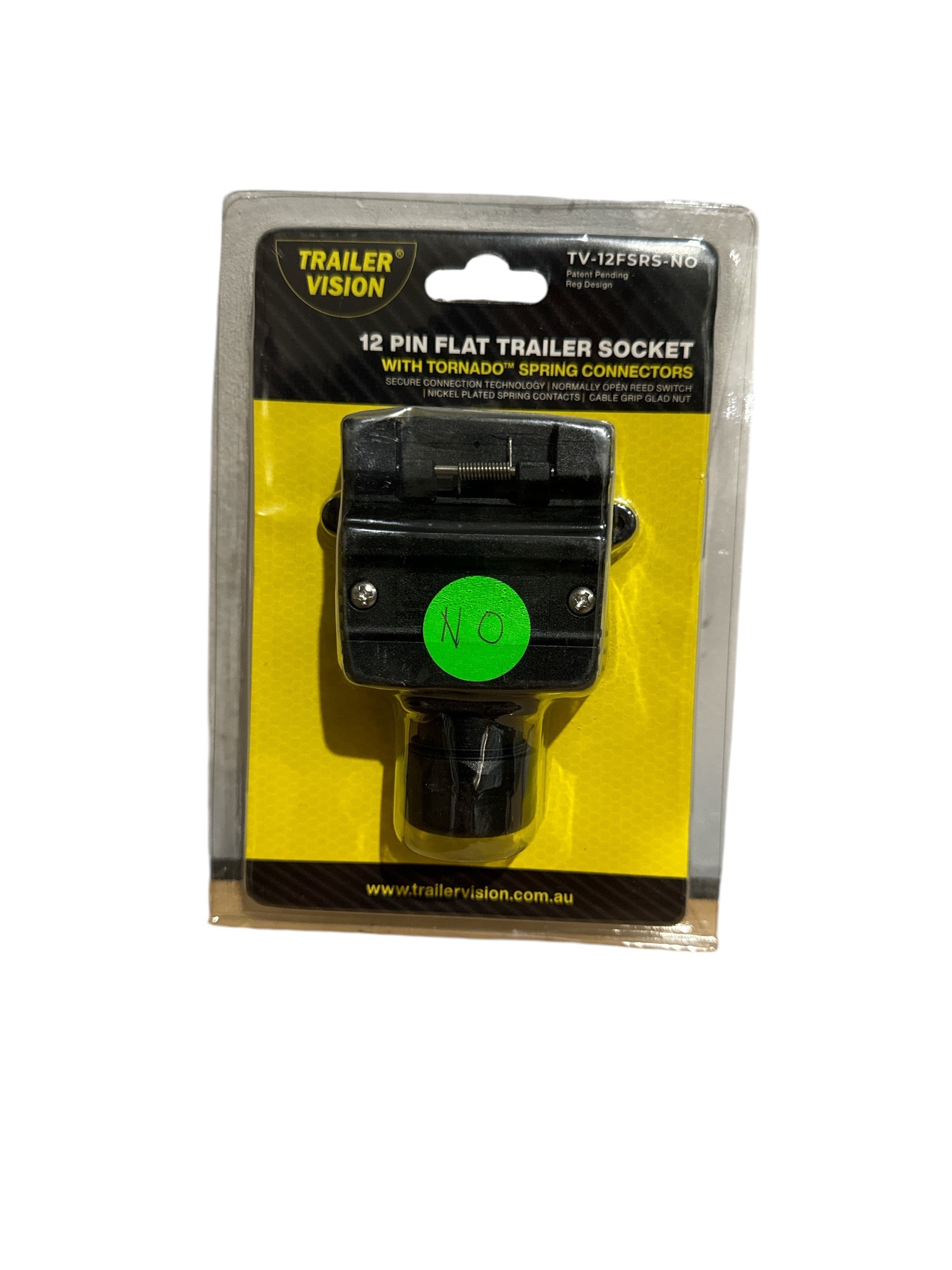

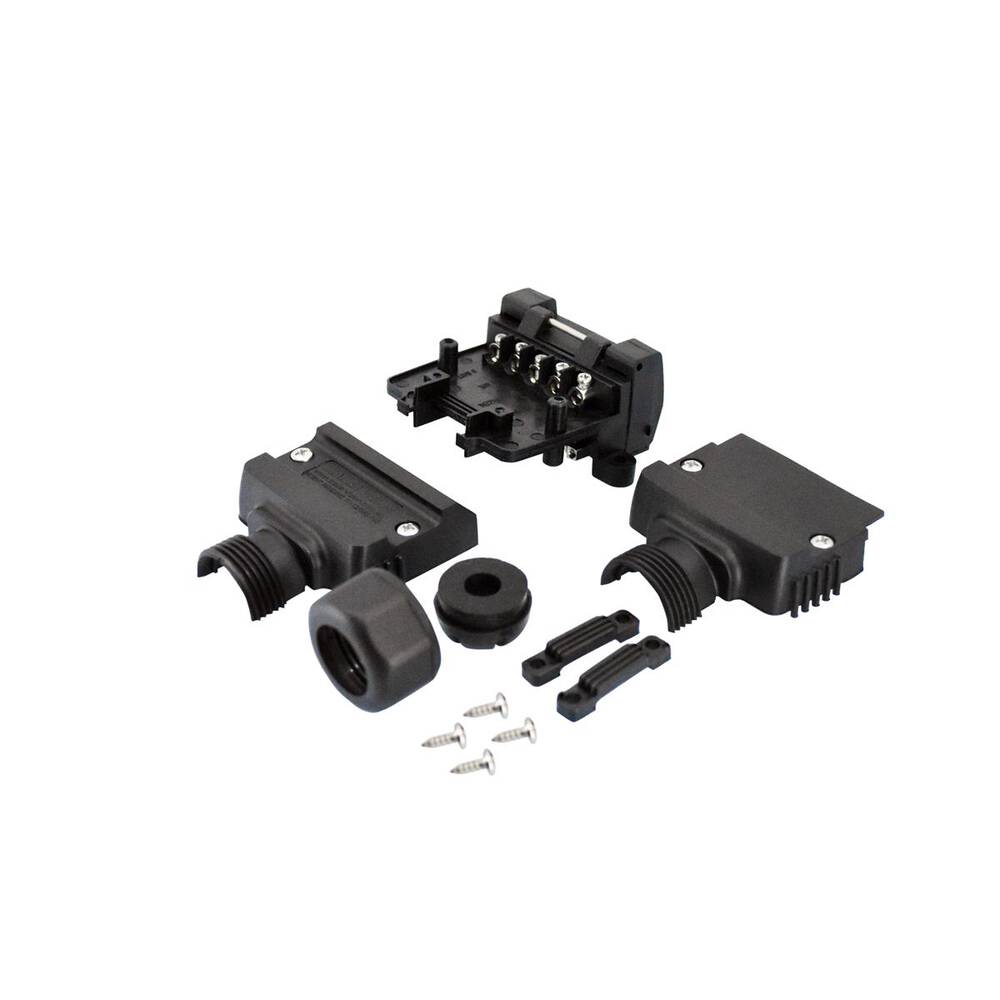

12 PIN FLAT PLUG SOCKETS
LATEST PATENTED TECHNOLOGY WITH TORNADO SPRING CONNECTORS

Trailer Vision’s innovatively designed 12 pin flat trailer sockets feature Tornado Spring technology that ensure a secure connection every time.

This trailer socket features an exclusive gland nut making it ideal for tow bar installs where cable neatness and protection is important. A integrated normally open reed switch make this connector compatible with vehicles with the correctly switch reversing sensors.

This 12 pin flat trailer connector is perfect for heavy duty connection applications.

Features

Innovative 12 Pin Socket Design
Tornado terminal springs for secure connection
Rear cable gland nut for cable security
Built in Normall open reed switch for reverse sensor applications
Easy wire internal terminals

CNC Laser Cut & Powder Coated Manufactured in Australia by Complete Vehicle Designs

MULTIPLE KIT OPTIONS AVAILABLE

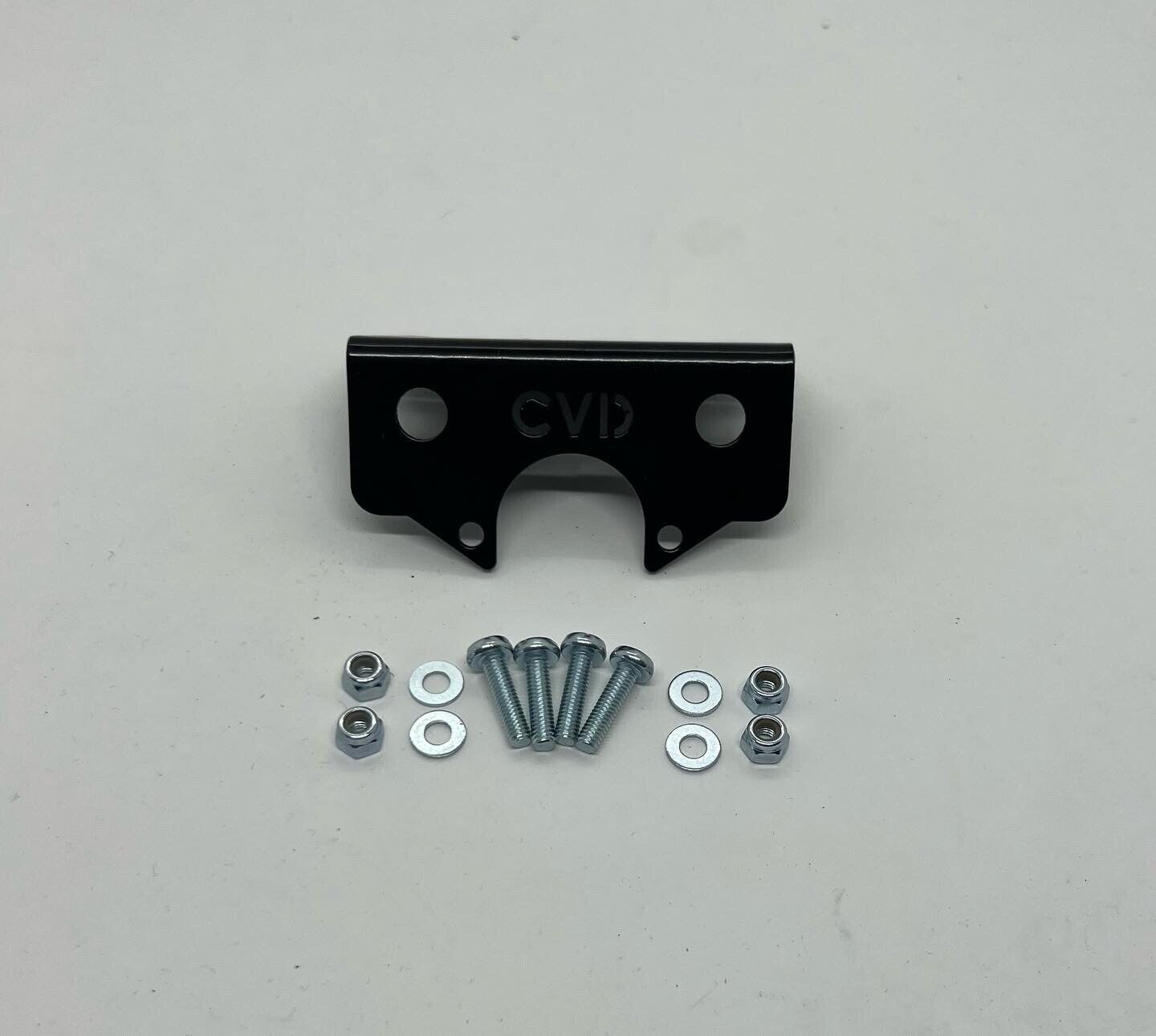

We have smaller (Single) base plates also available if you only need a single accessory.

Plate Dimensions: 230mm x 40mm x 2.5mm
