Included in this Sale:

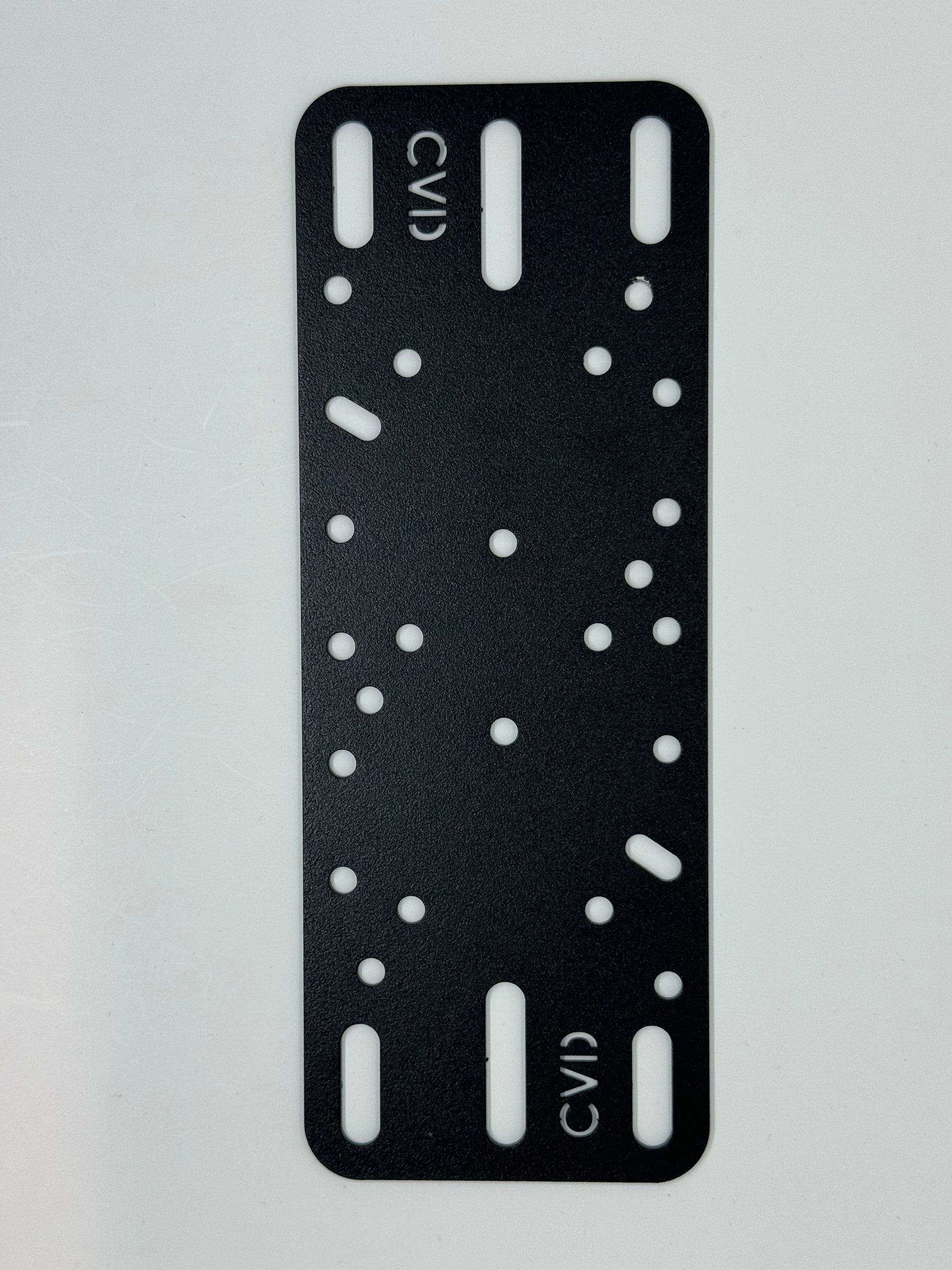

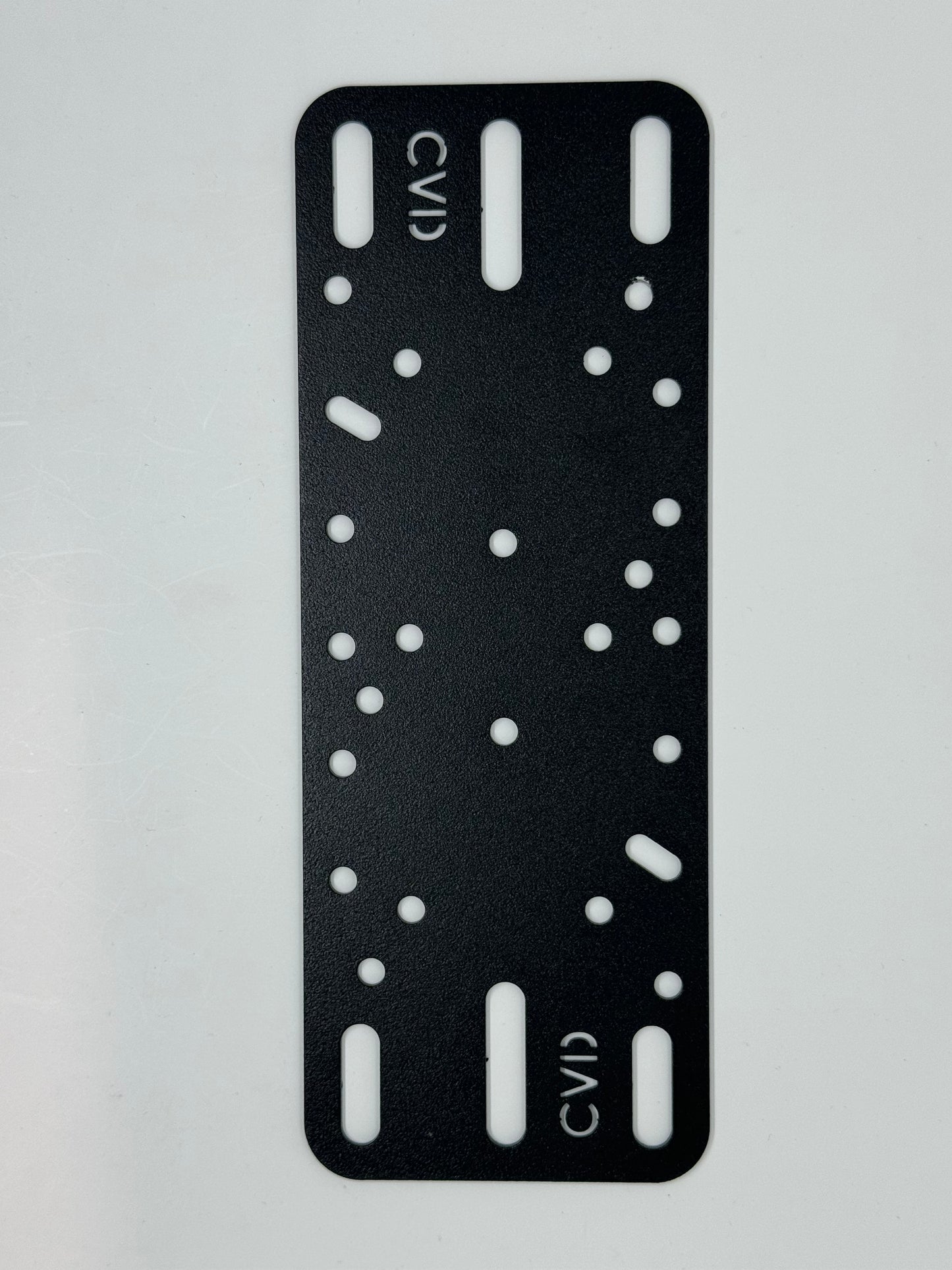

1 x Textured Black Mounting Plate
14 x M5x12mm Phillips Head with Nylock Nuts
2 x M8x20mm Bolts with Nylock Nuts

Mounting Bolts:
2 x 5/16 Nuts & 2 x 5/16 Nylock Nuts + 2 washers
2 x 1/4 Nuts & 2 x 1/4 Nylock Nuts + 2 Washers

* Plate will mount to most aftermarket battery brackets suited to N70 or similar size and can also be fitted to Control Panels, Canopies etc...
** Upright battery tie down rods not included and are for demonstration purposes only**

Description:
Material: 2mm Plate Steel
Colour: Textured Black
Paint Type: Powder Coated
Description: CNC Laser Cut
Suitable for: 1-6 Joinable Midi Fuse Holders (Sold Separately)
Plate Dimensions: 230mm x 86mm
Mounting Hole Spacing: 146-216mm (Offset options) 53-71mm
Battery Type: 12V
Battery Dimensions: 170-198mm (wide)
(Will suit smaller batteries, however the above dimensions are the min-max adjustment in the plate)

*** Midi Fuse Holders Sold Separately with various size Fuses and Cable Lugs Available Separately or as Kits***

Additional Tinned Copper Terminal Lugs and Straight joiners are also available on our other listings
