Deep Cycle Systems

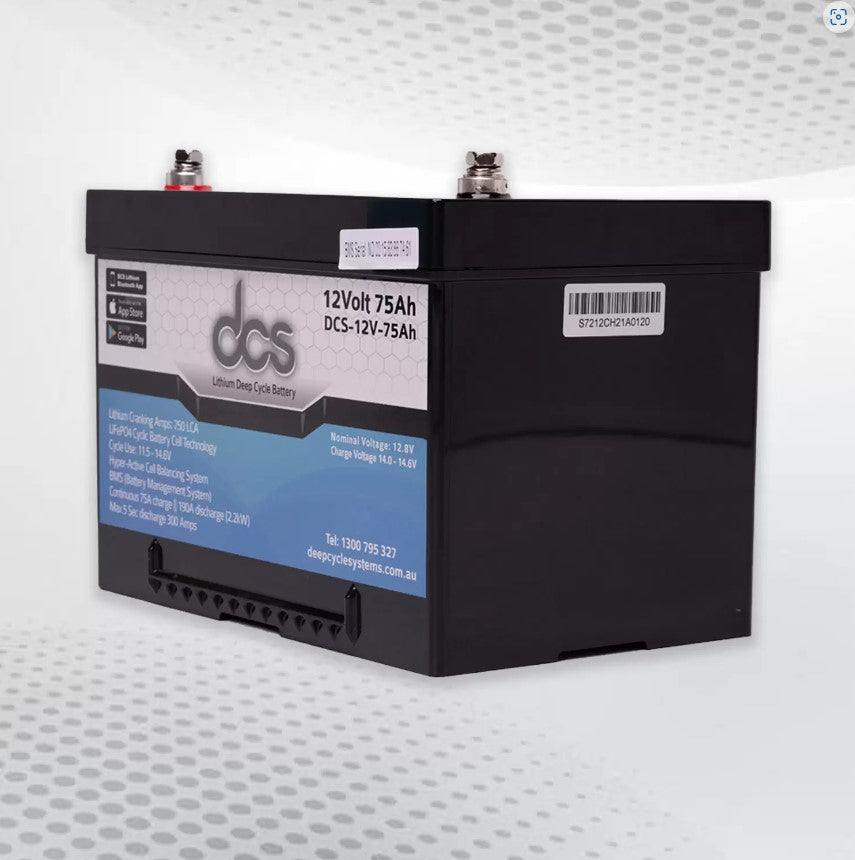

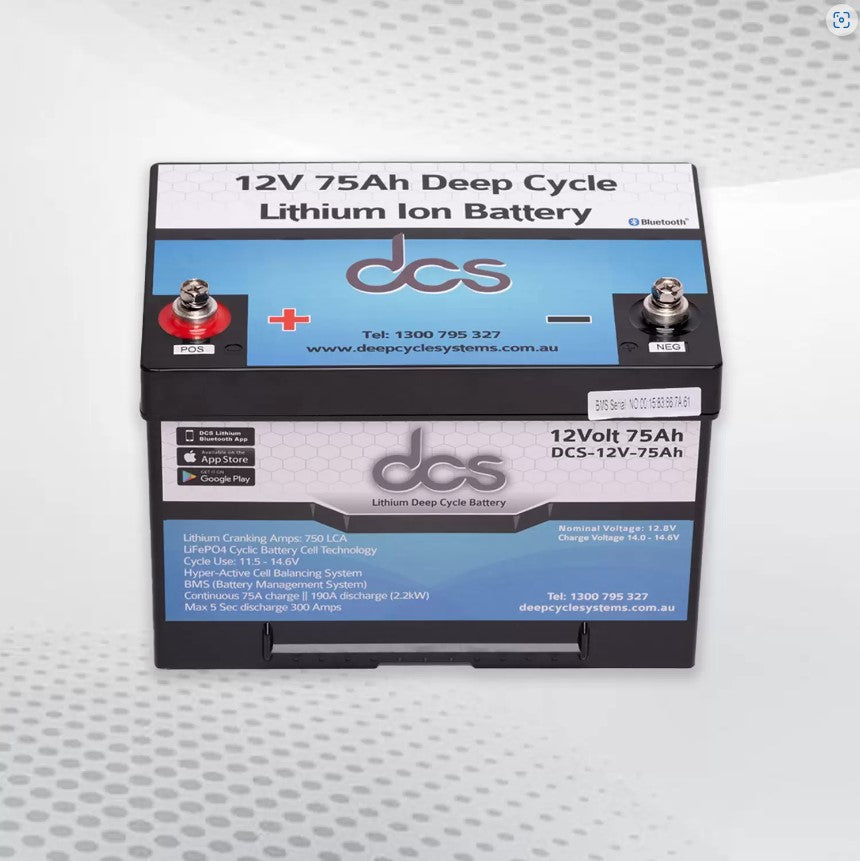

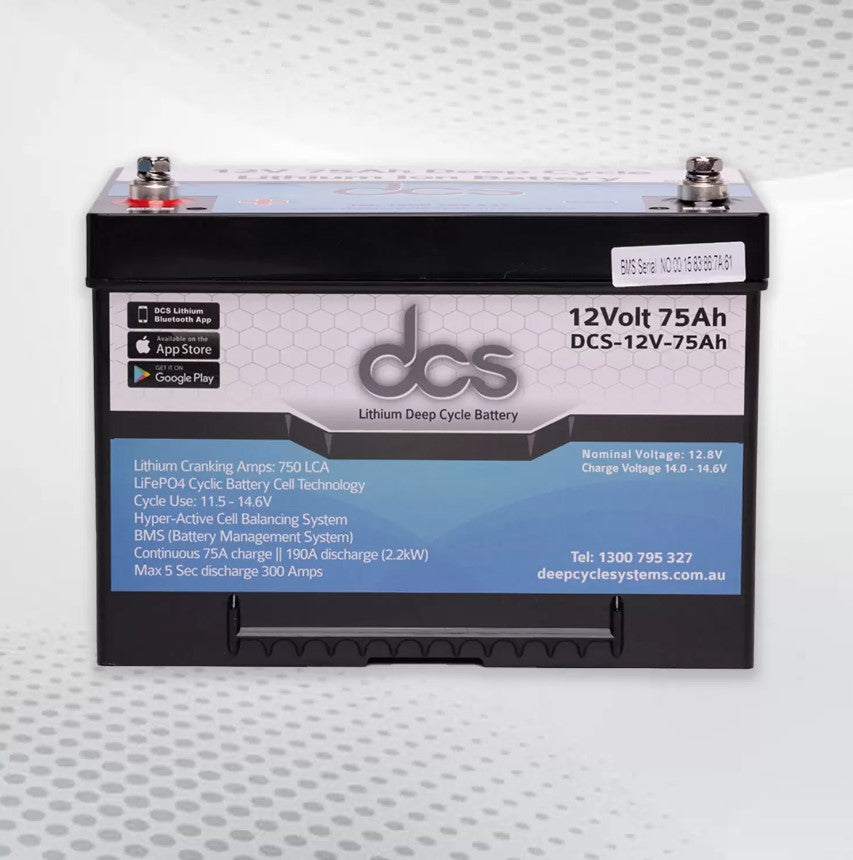

DCS - 75AH (LITHIUM) 12V
DCS - 75AH (LITHIUM) 12V
Couldn't load pickup availability
ULTRA-SAFE
Explosion-proof / No leakage
STABLE
Low Internal Resistance / Proven Stability
LONG LIFE
Ultra-long cycle life
GUARANTEED A GRADE
Contracted A Grade cell supply
DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead-acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium-ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to traditional lead-acid batteries.
Backed by a 4 year warranty.
The DCS 75Ah batteries come in a small footprint and pack a big punch with a 2C discharge rate, which means these little batteries can run a 1800W inverter!
- Cell status showing real-time cell balancing operation
- BMS MOSFET temperature (great info when you are winching or running a large inverting load or your trolling motor to know how hard you are pushing the electronics).
- SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
- Battery pack voltage and cycle count
- Amp meter – showing charge and discharge current
- Connectivity distance up to 10m
- Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your fingertips.
- The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel, the less accurate the SOC becomes.
- This free application provides the perfect tell-tale about the battery packs’ state of health as it ages
- Assists installers & integrators to quickly diagnose any system issues
DCS 6AWG 230MM PARALLEL CABLES WITH M8 RING TERMINALS
What will a DCS 12V 75Ah battery run?
| Specifications: | – |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity (1Hr) | 75Ah |
| Case Dimensions (L x W x H) | 260mm x 169mm x 175mm |
| Weight | 8.60 Kgs |
| Cycling voltage | 11.5 ~ 14.6V |
| Charge voltage | 14.0 ~ 14.6V |
| Float Voltage | 13.5 ~ 13.7V |
| Maximum Charge Current | 75A |
| Recommended Charge Current | ≤50A |
| Maximum Discharge Current | ≤150A |
| DCS BMS (internal) | DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections, satisfies the AS/NZS 3001.2:2022 lithium battery standards |
| Cell Chemistry | DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4) |
| Cycle Performance | 2500 Cycles @ 100% DOD ≥ 80% Capacity Retention @ 25°C |
| LCA | 750 |
| Ingress Protection | IP54 |
| Case | ABS (flame retardant plastic) |
| Operating temp Range | -30 to +110 degrees C |
| Terminals | Top Mount M8 Stainless steel / Copper |
| Parallel Connections | Up To 10 |
| Series Connections | No |
| Warranty | 4 years | 3 years under bonnet |
| Certifications | UN 38.3, UL 1642, IEC 62133 & 62619, CE |
DCS HIGH PERFORMANCE 2C CHARGE & DISCHARGE CURVES
DOWNLOAD APP (DCS LFP)
DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology. Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth.
This App provides comprehensive monitoring for DCS LFP batteries, including:
- SOC%
- Time Remaining
- Battery pack voltage, Power & Current
- Battery Management MOSFET temperature
- Individual Cell Status with balancing indicators.
- Connectivity distance up to 10 meters.
- Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth
Learn More About the DCS LFP APP
CLICK HERE TO WATCH THE APP OVERVIEW VIDEO
