Deep Cycle Systems

DCS - 120AH (LITHIUM) 12V

DCS - 120AH (LITHIUM) 12V

Regular price $1,495.00 AUD
Regular price Sale price $1,495.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Positive Terminal

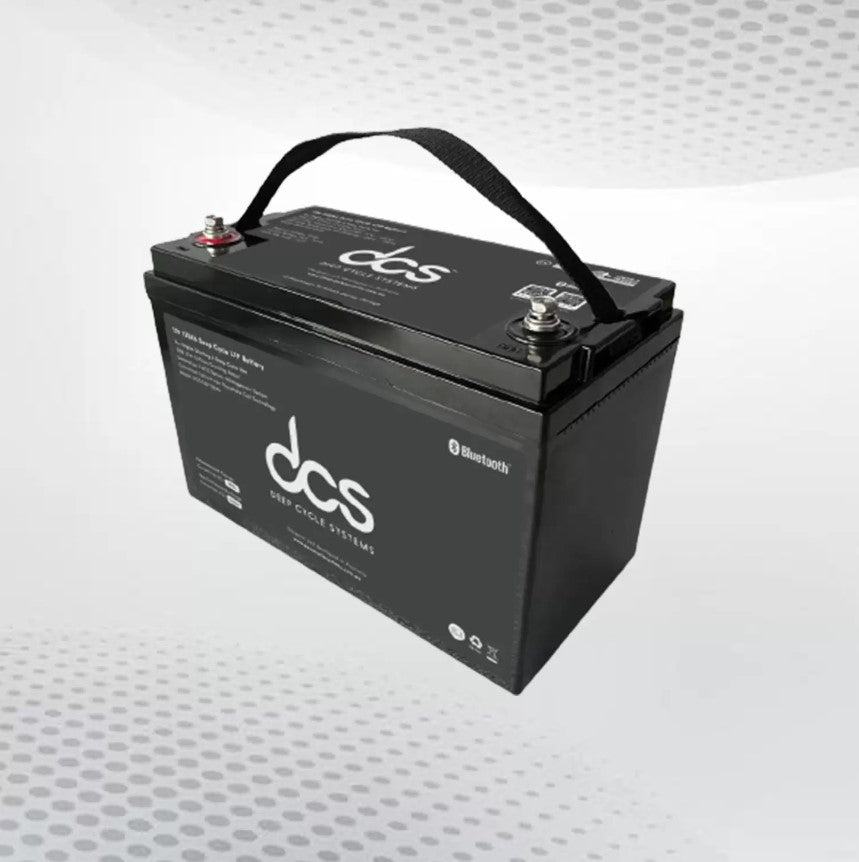

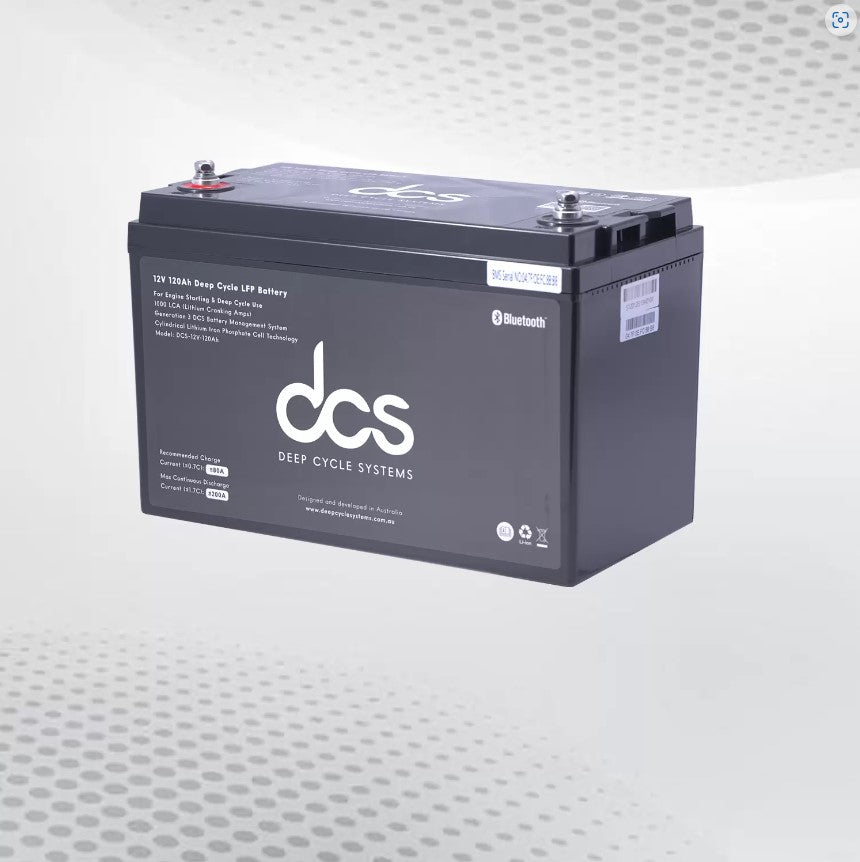

DCS 12V 120AH SUPER SLIM LINE

safe

ULTRA-SAFE

Explosion-proof / No leakage


stable

STABLE

Low Internal Resistance / Proven Stability


long

LONG LIFE

Ultra-long cycle life


guarentee

GUARANTEED A GRADE

Contracted A Grade cell supply


There has been some very nice advances in the lithium battery cell market over the past 12 months. For the first time premium high end lithium iron phosphate battery cells have become commercially available that had previously been exclusively produced for the elite companies in the military space and government departments. These cells achieve 4000 cycles after only 20% capacity fade. So, if you convert that to the very misleading ‘cycle life’ which some claim 4000/5000 cycles. These new cells are in the 8,000-10,000-cycle life range.



Already last year in 2023, DCS commercialised this major cell chemistry advancement right across our entire battery range. Meanwhile, fully completing our GEN3 Battery Management System program and all software development back in 2022. What does this all mean? It means for all our batteries sold and distributed world wide we are managing less than 0.2% defects for both the combined battery cells + electronics (end product). Not bad for a little Aussie tech company. Which places us in the top 3 brands in the world for 12V lithium batteries.

We have now expanded distribution across the Northern America’s, Europe, Africa, Middle East and of course Australia.

As a special thanks to our loyal customer base and dealer network and international friends and partners – we have designed and released our new 12V range of slim line batteries. Which feature our EV cell pack design, which means the cylindrical battery cells are fully submerged and coated with special cell interface resins. What do these resins exactly do? Well it means these batteries can run for significantly longer duty cycles. So more continuous power output with little effect on the cycle life.

This makes these batteries superior for the most astute and fussy of customers demanding the very best batteries. So that they can travel across the top end without issue and know their assests are humming along without any concerns.



Specifications:
Nominal Voltage 12.8V
Nominal Capacity (1Hr) 120Ah
Case Dimensions (L x W x H) 328mm x 171mm x 215mm
Weight 14.60 Kgs
Cycling voltage 11.5 ~ 14.6V
Charge voltage 14.0 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Maximum Charge Current 120A
Recommended Charge Current ≤80A
Maximum Discharge Current ≤200A Continuous
DCS BMS (internal) DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections, satisfies the AS/NZS 3001.2:2022 lithium battery standards
Cell Chemistry 3.2V 20Ah Cylindrical LFP (LifePO4)
Cycle Performance 4000 cycles @ 100% DOD ≥ 80% Capacity Retention @ 25°C
LCA 1000
Ingress Protection IP54
Case ABS (flame retardant plastic)
Operating temp Range -25°C to 80°C
Terminals Top Mount M8 Stainless steel / Copper
Parallel Connections Up To 10
Series Connections No
Warranty 4 years | 3 years under bonnet
Certifications UN 38.3, UL 1642, IEC 62133 & 62619, CE

DCS HIGH PERFORMANCE 2C CHARGE & DISCHARGE CURVES


DCS Lithium batteries 12V 120Ah & 12V 180Ah Overview comparison

How to configure the DCS 12V 120Ah Marine batteries and the DCS 12V 80Ah Extreme batteries into any vessel



DOWNLOAD APP (DCS LFP)

DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology. Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth.

This App provides comprehensive monitoring for DCS LFP batteries, including:

  • SOC%
  • Time Remaining
  • Battery pack voltage, Power & Current
  • Battery Management MOSFET temperature
  • Individual Cell Status with balancing indicators.
  • Connectivity distance up to 10 meters.
  • Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth

Learn More About the DCS LFP APP

CLICK HERE TO WATCH THE APP OVERVIEW VIDEO
