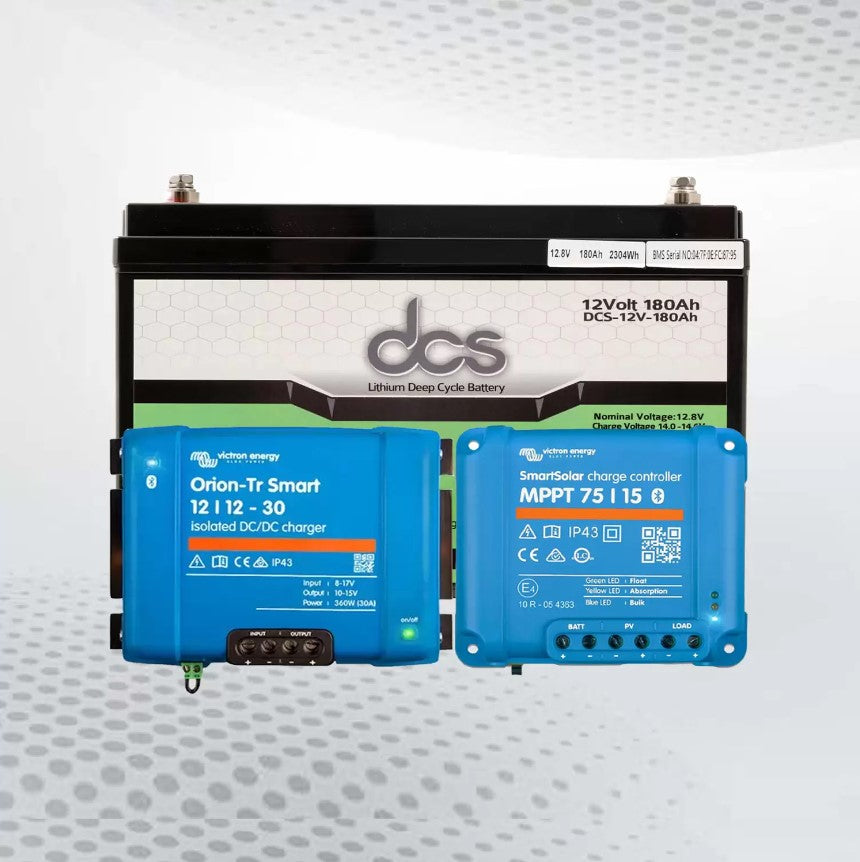

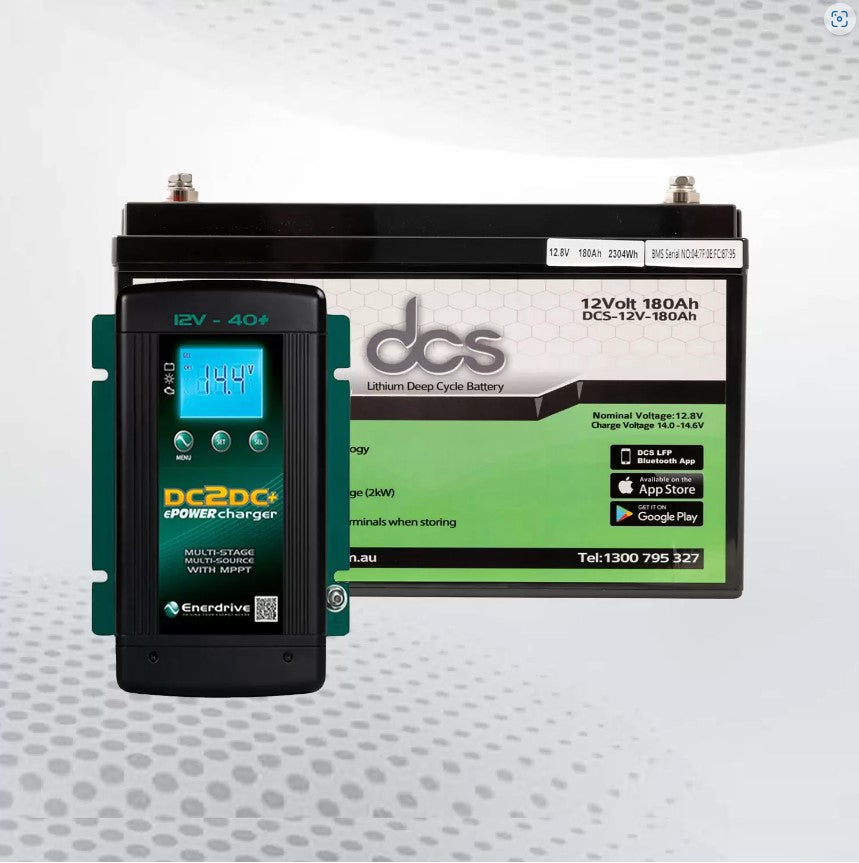

DCS - Compact 180ah Lithium Battery & Bundles

ULTRA-SAFE

Explosion-proof / No leakage

STABLE

Low Internal Resistance / Proven Stability

LONG LIFE

Ultra-long cycle life

GUARANTEED A GRADE

Contracted A Grade cell supply

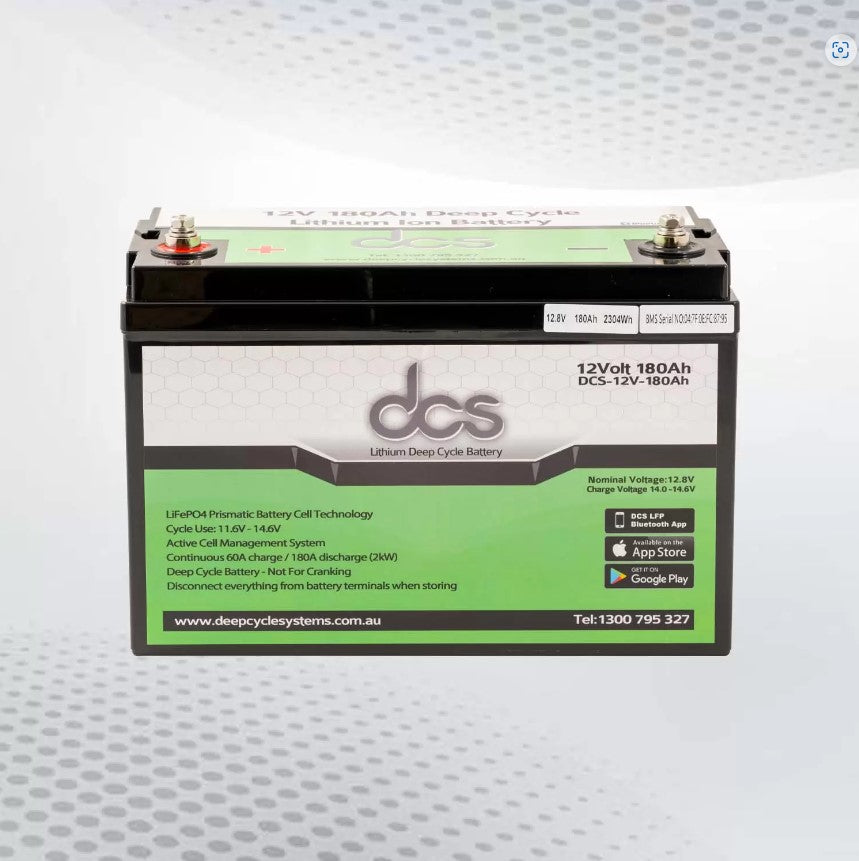

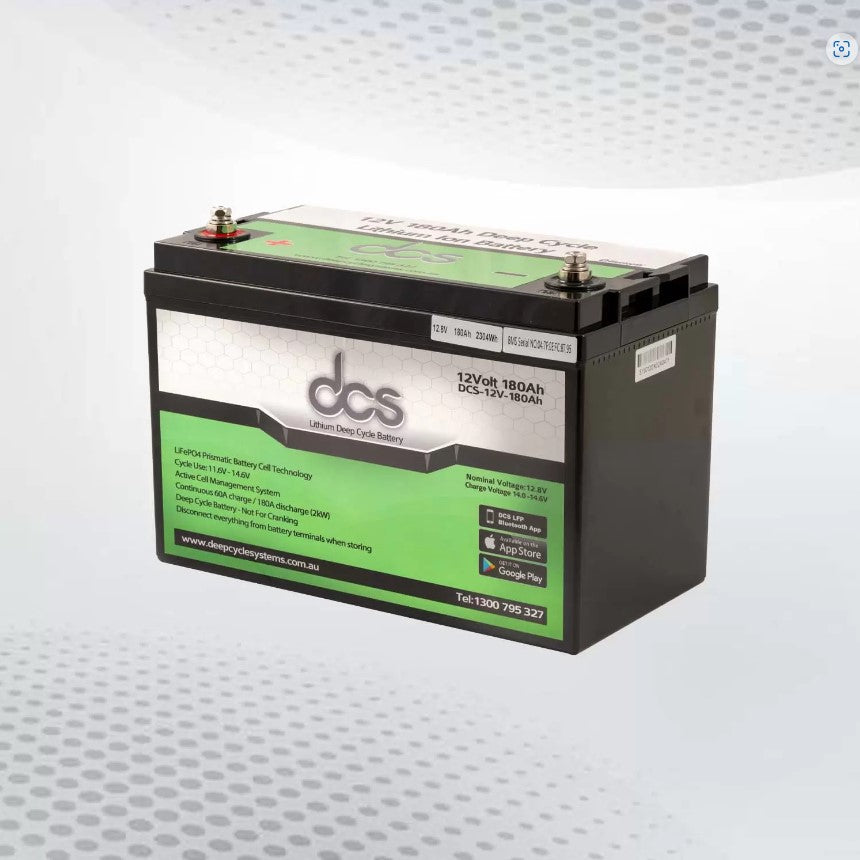

WORLDS MOST COMPACT 12V 180AH LITHIUM BATTERY

DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead-acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium-ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to traditional lead-acid batteries.

Backed by a 5 year warranty.
Battery terminal configuration only available in a LHP

The DCS 12V 180Ah compact batteries set a new standard for High Energy Density lithium batteries. These batteries achieve an astonishing 10Ah per KG! With a massive 2000W continuous power output.

All sealed inside a standard N70Z / 330mm deep cycle battery case. Ideal for auxiliary applications. Will fit inside standard portable battery boxes, drawer systems, campers, caravans, UPS, telecommunications suits a wide range of applications.

Featuring our Australian designed and developed DCS Battery Management System and Cell Management System this power plant supports 2000W inverters and has also been designed to pass Military Standards 810G vibration testing and ensures these batteries remain super reliable even in the most punishing of conditions.

All DCS batteries now feature our comprehensive Bluetooth Monitoring System available on both Android and Apple operating systems. These batteries are able to connect to our App at a massive 25 meters line of sight.

These are an auxiliary only battery, not designed to be installed inside engine bays and have no engine cranking capability and must be charged with a suitable programmable charger that can bulk to the correct 14.20V.

NOT SUITABLE FOR ENGINE CRANKING OR ENGINE BAYS

Specifications:	–
Nominal Voltage	12.8V
Nominal Capacity (1Hr)	180Ah
Case Dimensions (L x W x H)	328mm x 171mm x 215mm
Weight	18.0 Kgs
Cycling voltage	11.6 ~ 14.6V
Charge voltage	14.0 ~ 14.20V
Float Voltage	13.5 ~ 13.7V
Maximum Charge Current	60A
Maximum Discharge Current	180A Continuous (2000W)
DCS BMS (internal)	DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections, satisfies the AS/NZS 3001.2:2022 lithium battery standards
Cell Chemistry	CALB Prismatic LFP (LifePO4)
Cycle Performance	2000 Cycles @ 100% DOD ≥ 80% Capacity Retention @ 25°C
Ingress Protection	IP54
Case	ABS (flame retardant plastic)
Operating temp Range	-25°C to 65°C
Terminals	Top Mount M8 Stainless steel / Copper

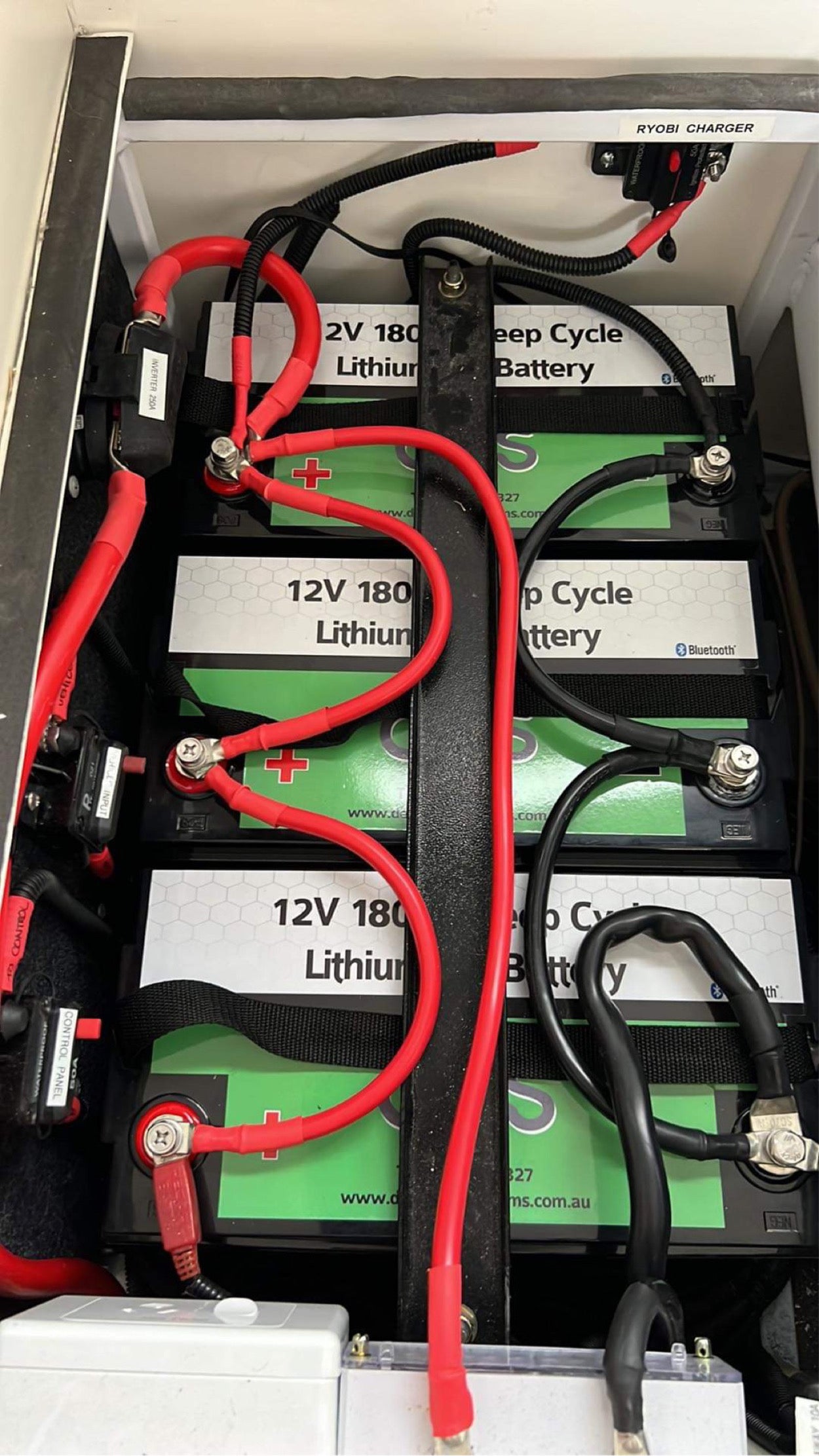

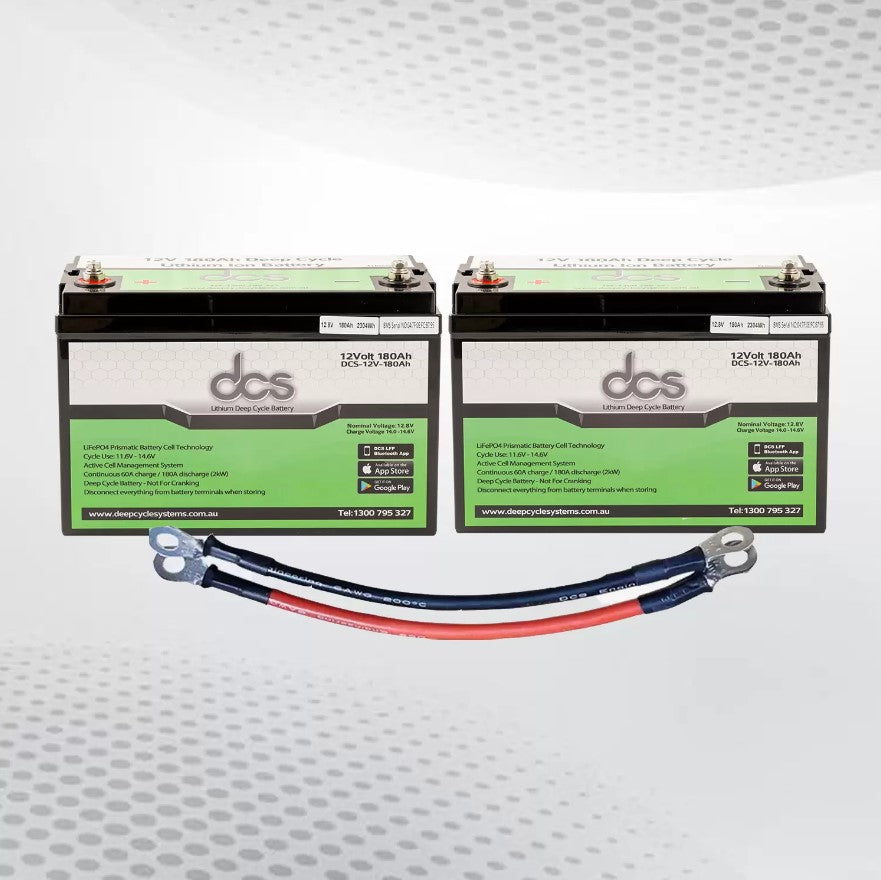

Parallel Connections	Up To 10
Series Connections	No
Warranty	5 Years (cell chemistry not suitable for engine bays)
Certifications	UN 38.3, UL 1642, IEC 62133 & 62619, CE

DOWNLOAD APP (DCS LFP)

DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology. Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth.

This App provides comprehensive monitoring for DCS LFP batteries, including:

• SOC%
• Time Remaining
• Battery pack voltage, Power & Current
• Battery Management MOSFET temperature
• Individual Cell Status with balancing indicators.
• Connectivity distance up to 10 meters.
• Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth
