Suits 39' LED Light Bar (Stedi 3303 Pro 39 or equivalent)
suits refreshed 03/2023 models onwards
BRACKET DETAILS
Product Features:

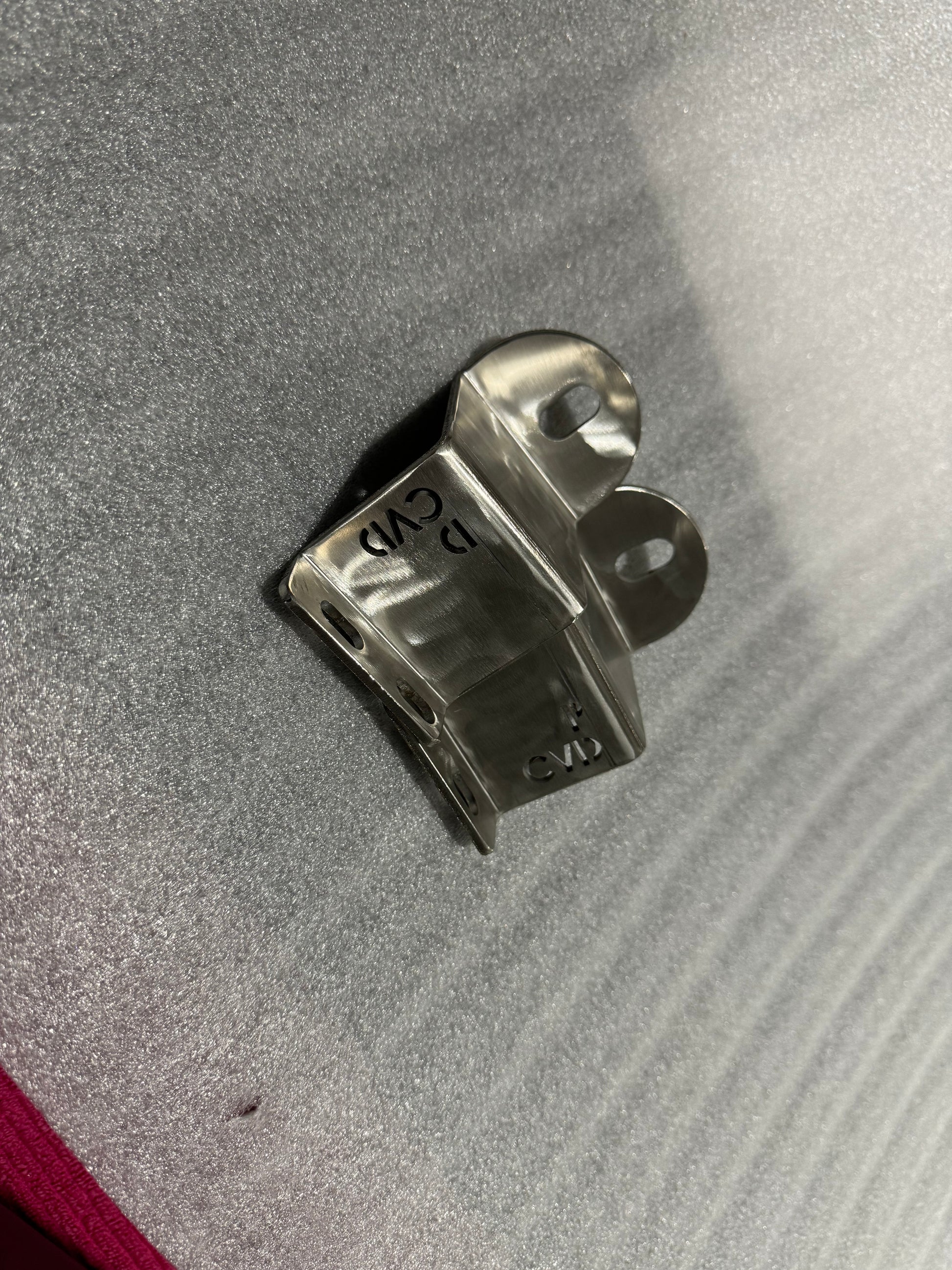

● 2 x CNC Machined 304 Stainless Steel Plates
● Labelled Drivers & Passenger Side for easy installation
● Adjustable height and depth of light bar

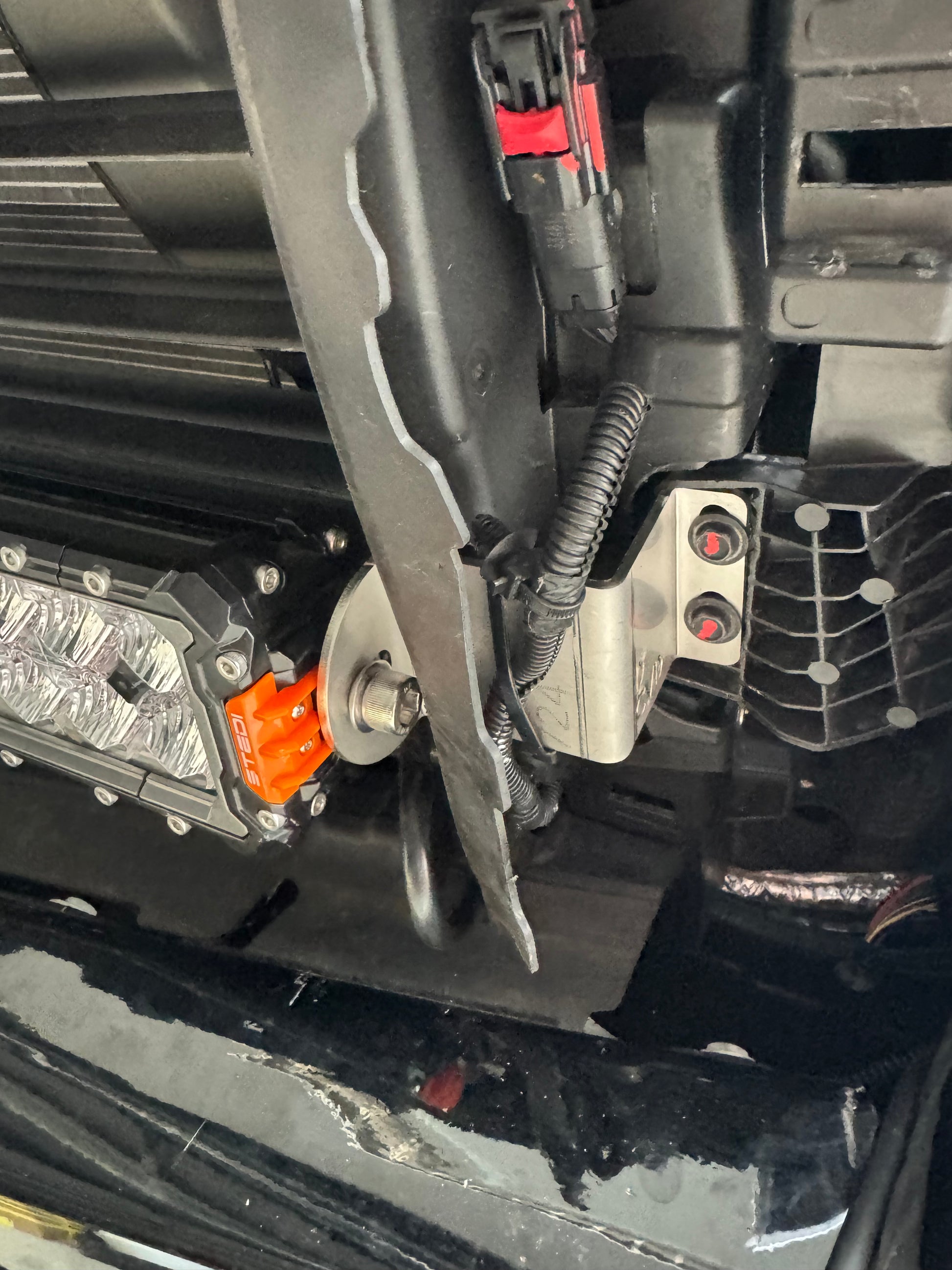

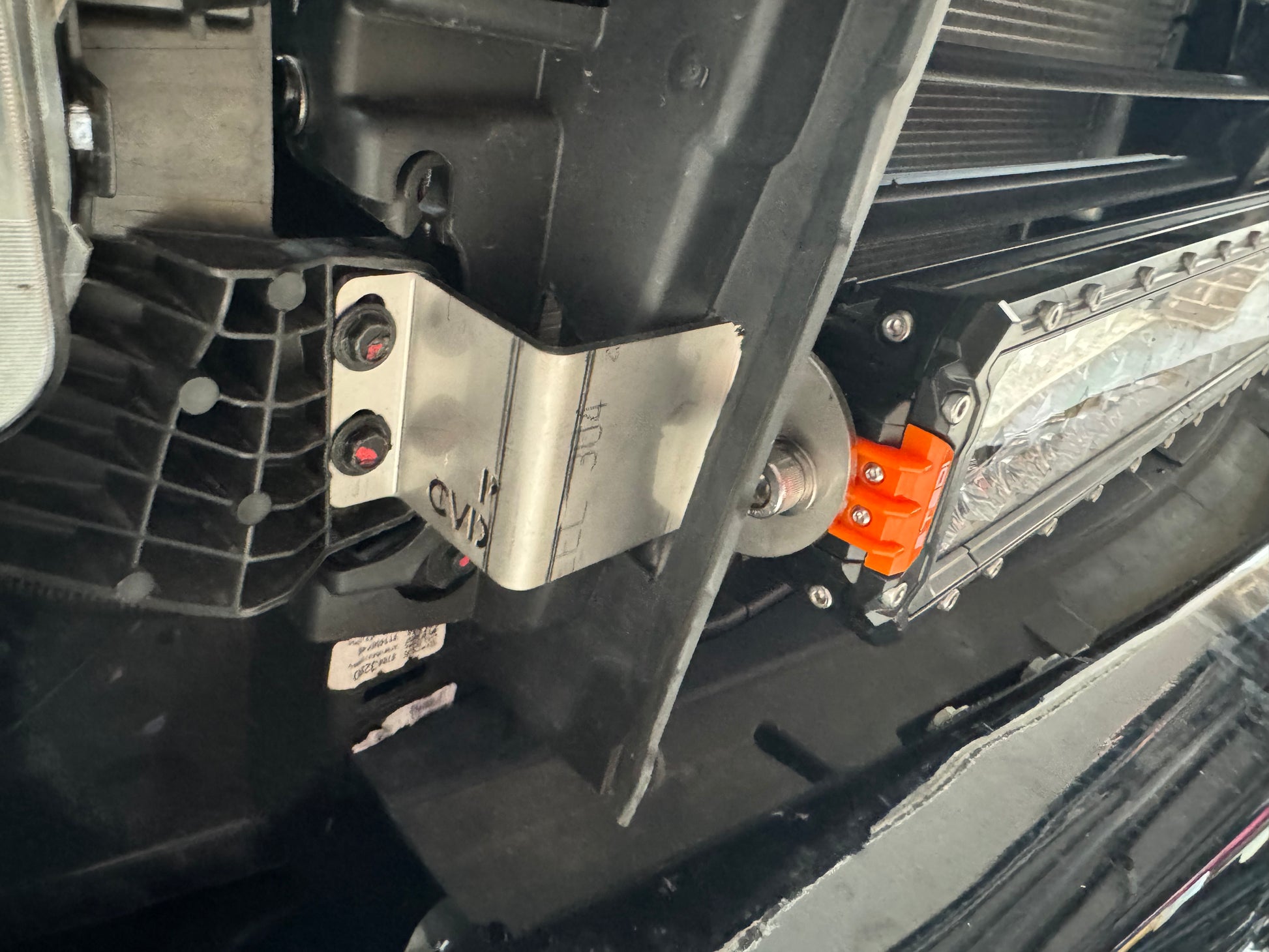

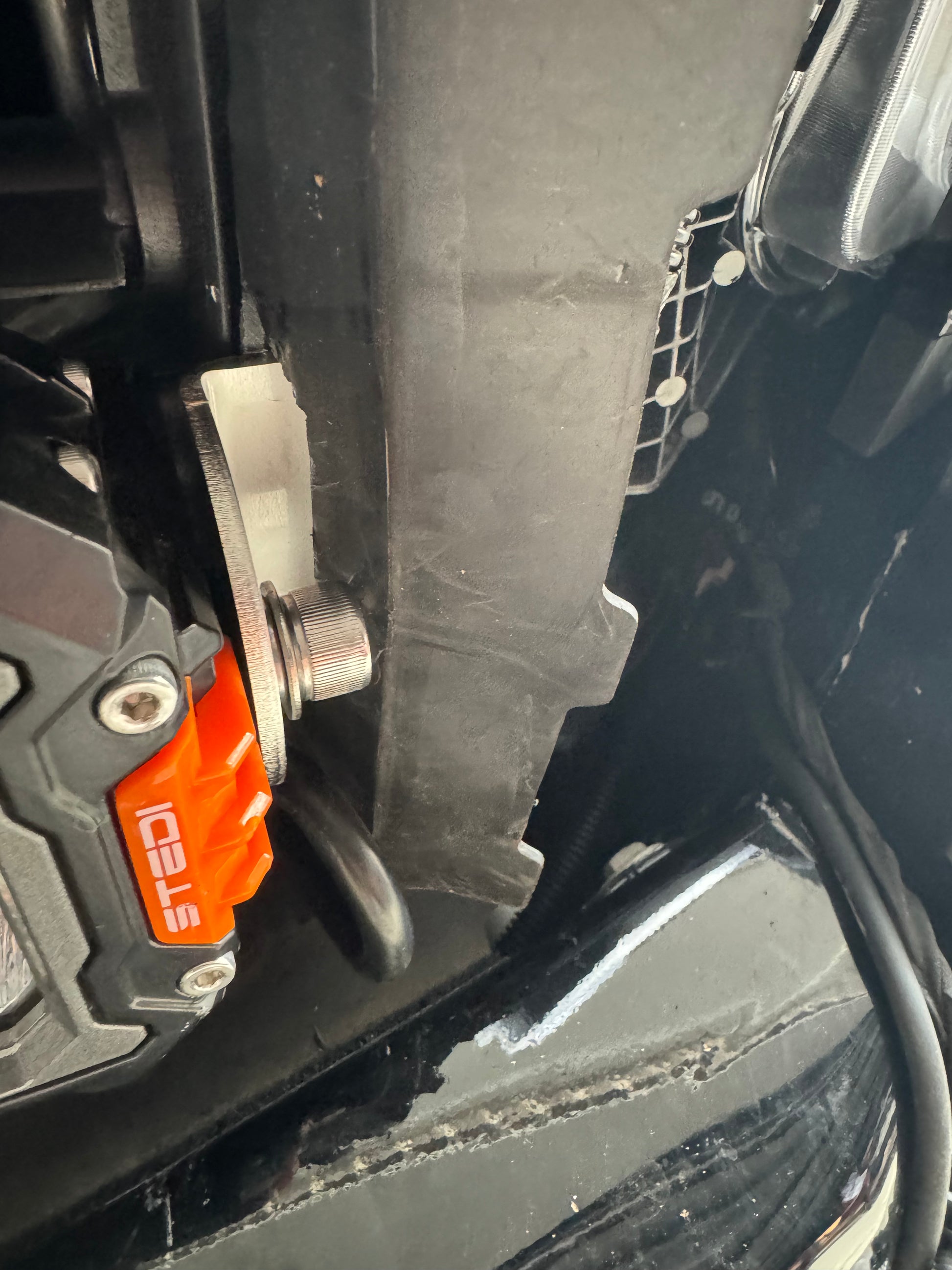

● Fits to existing mounting holes, utilising factory bolts
● Requires a small cut in your inner plastic wind deflector for bracket to pass through
Product Description:
Product name
ZR2 LED Grill Brackets
Suited to

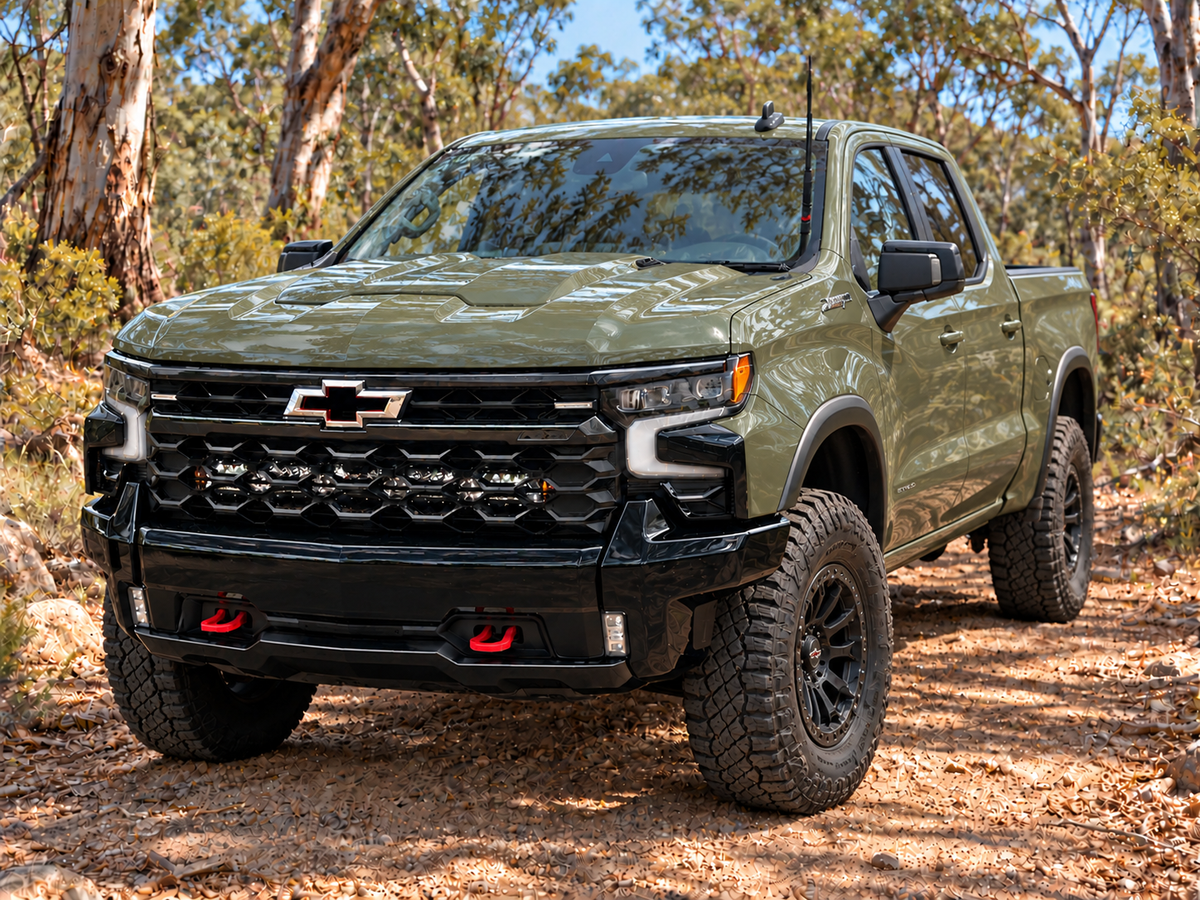

2022 Refreshed Chevrolet Silverado ZR2 Grill
Installation
Bolt-in
Material
304 Stainless Steel
Color
Stainless Steel
Package Style
10cm x 10cm by 10cm
Included in Sale:

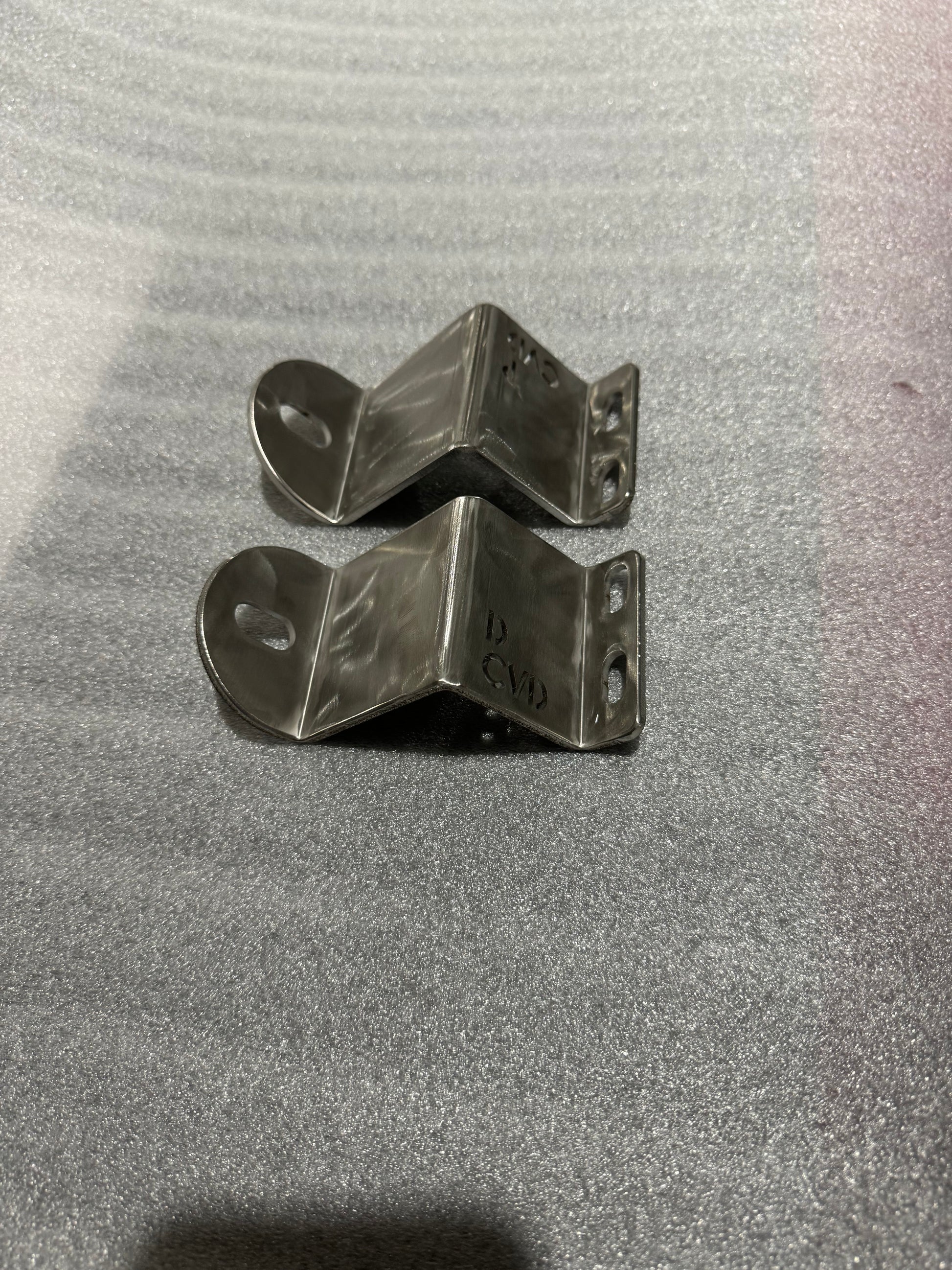

2 x Stainless Steel Brackets (Drivers & Passenger Side
No mounting bolts are needed as they use factory bolt positions and bolts.

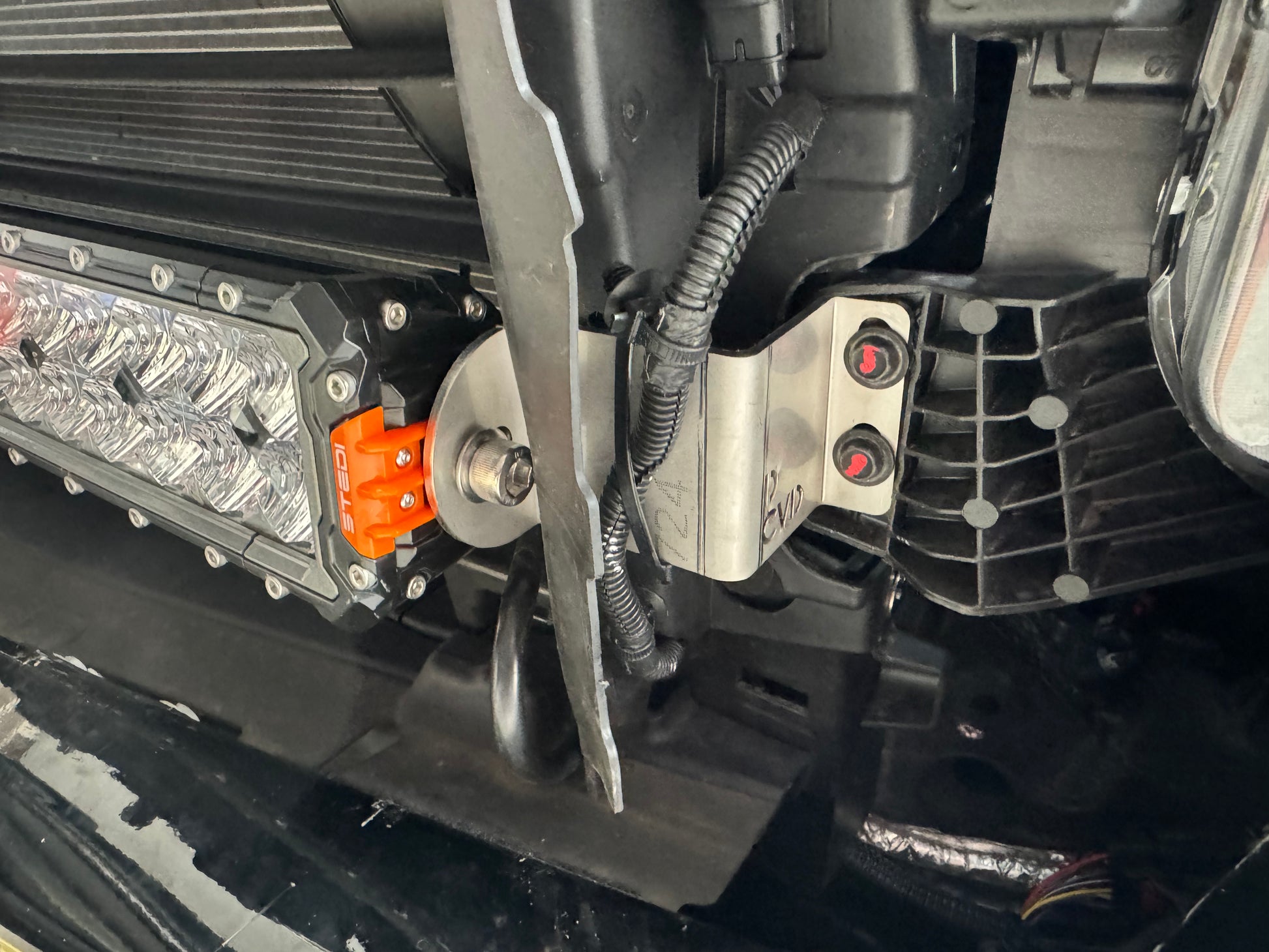

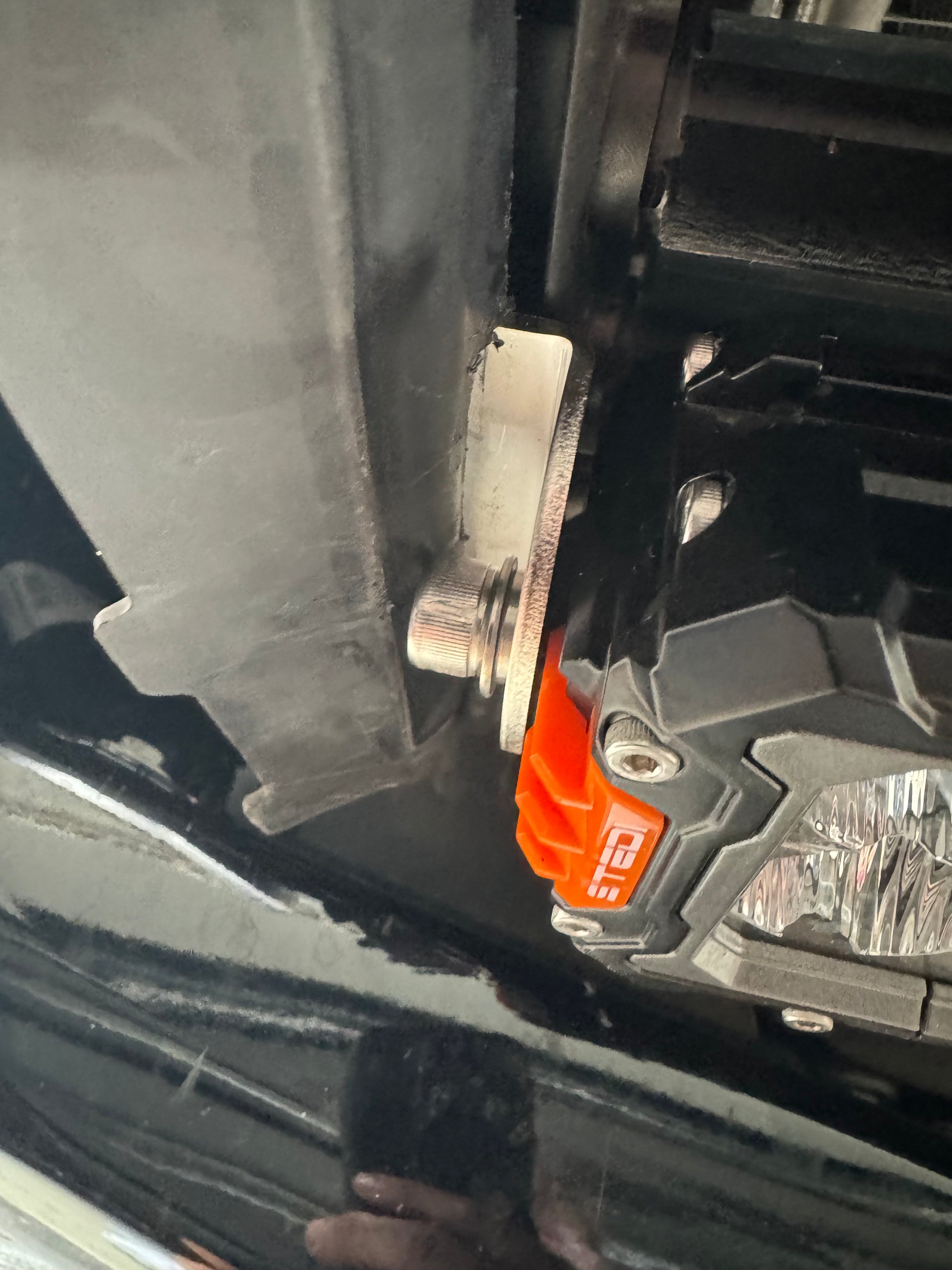

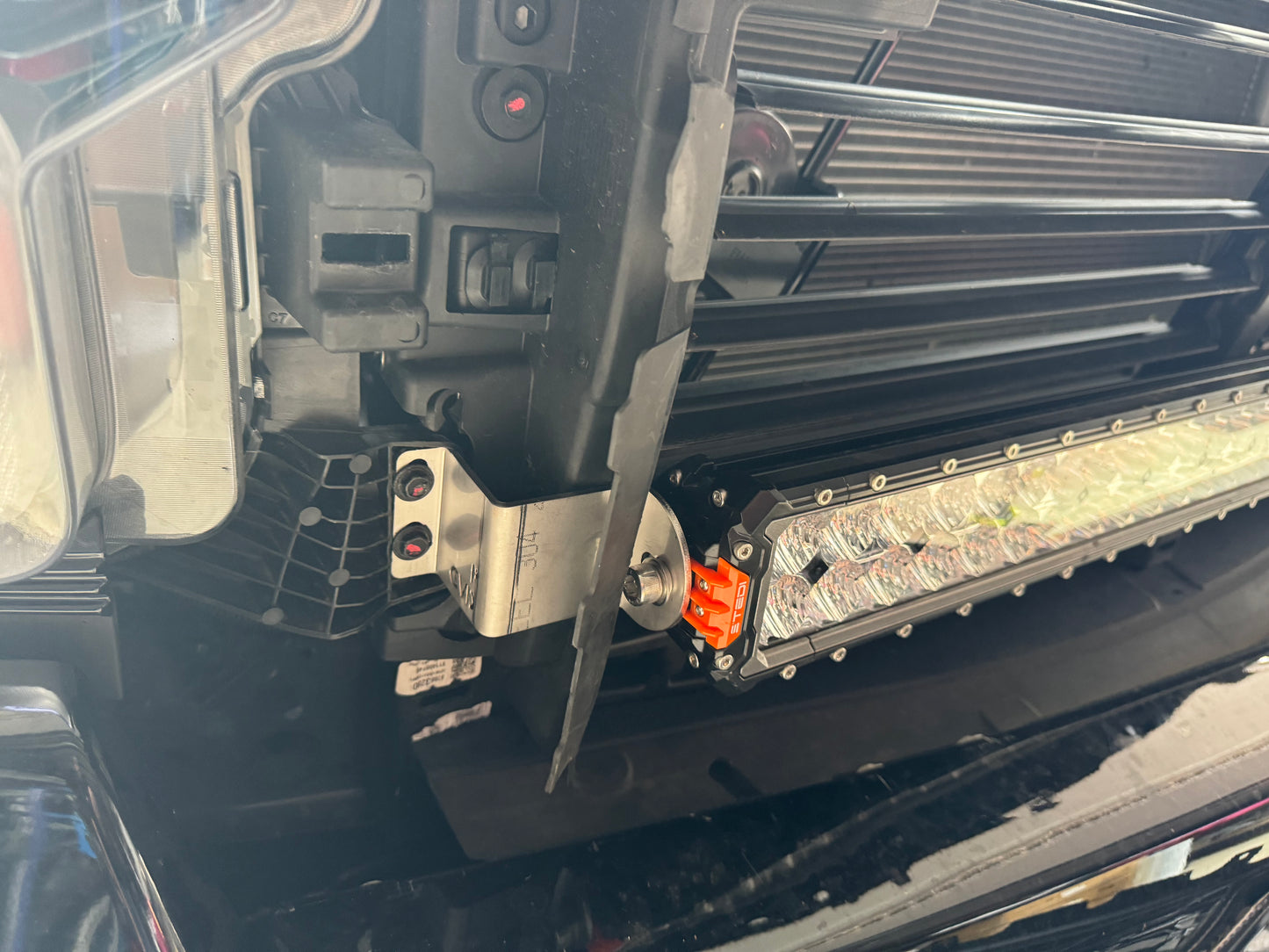

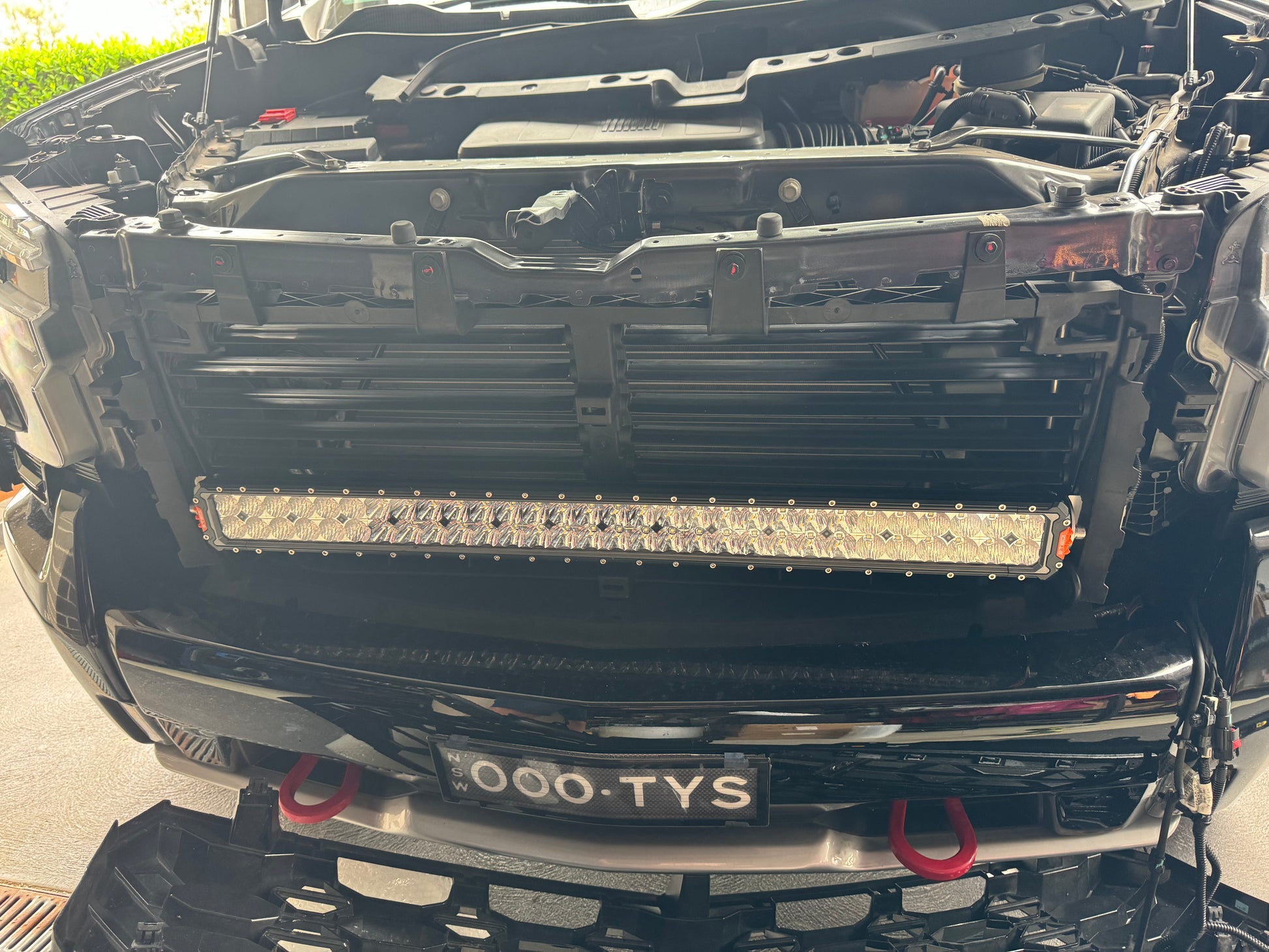

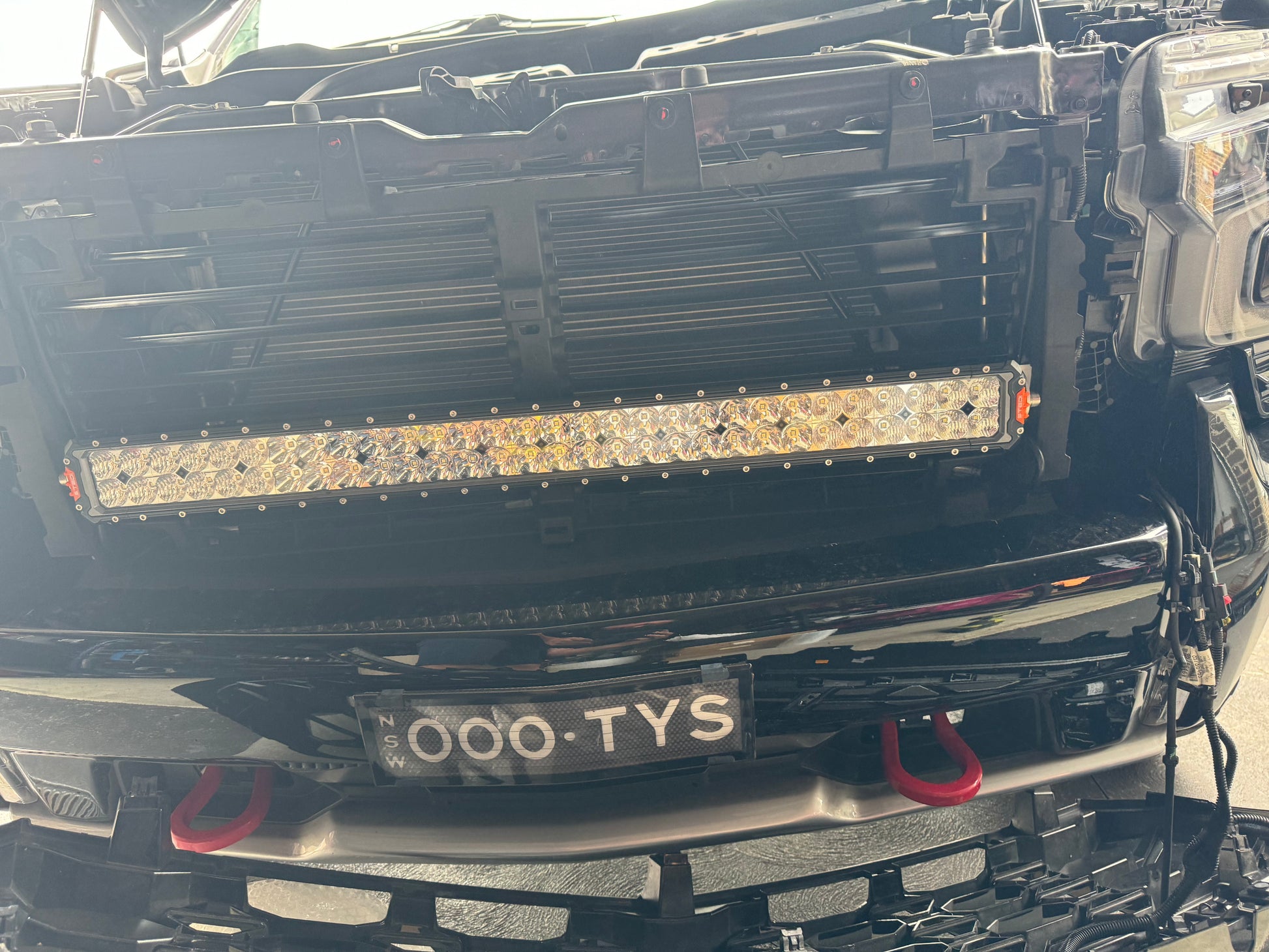

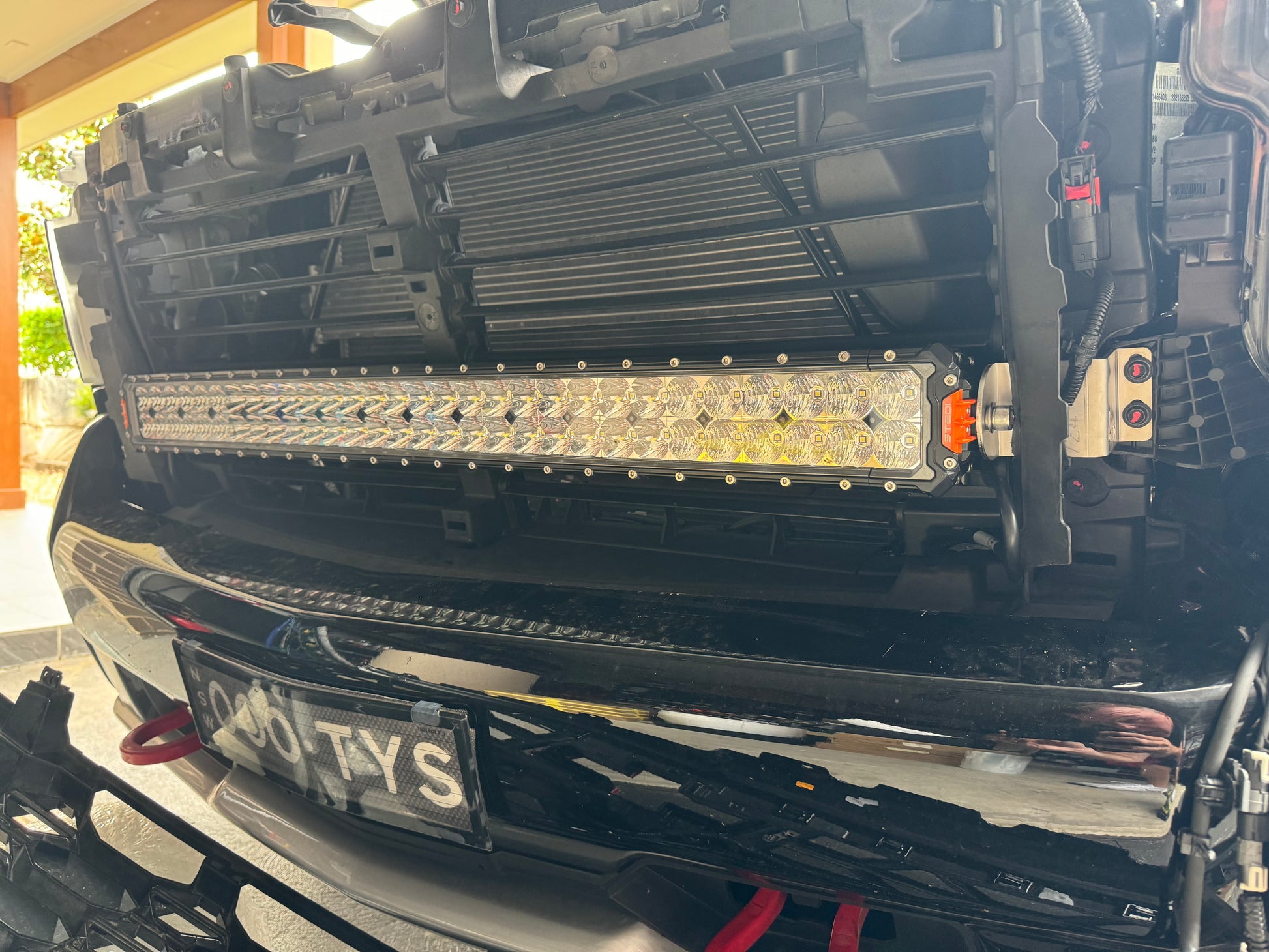

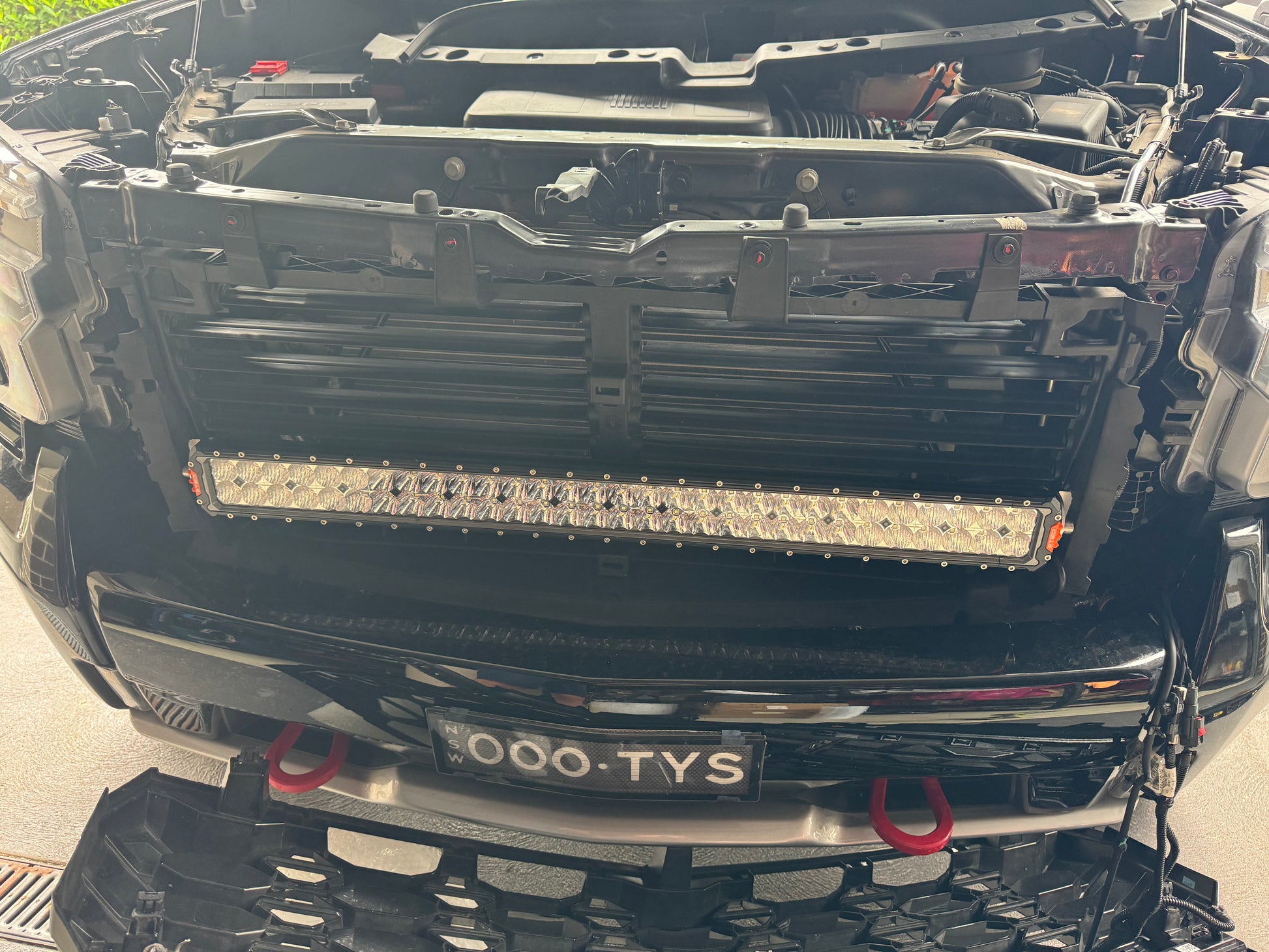

Fitment Note: This is a tight fit with the double row light bar and requires the light to just miss the louvers with the back of the light bar and the screws pulls the grill in against the light bar tight.

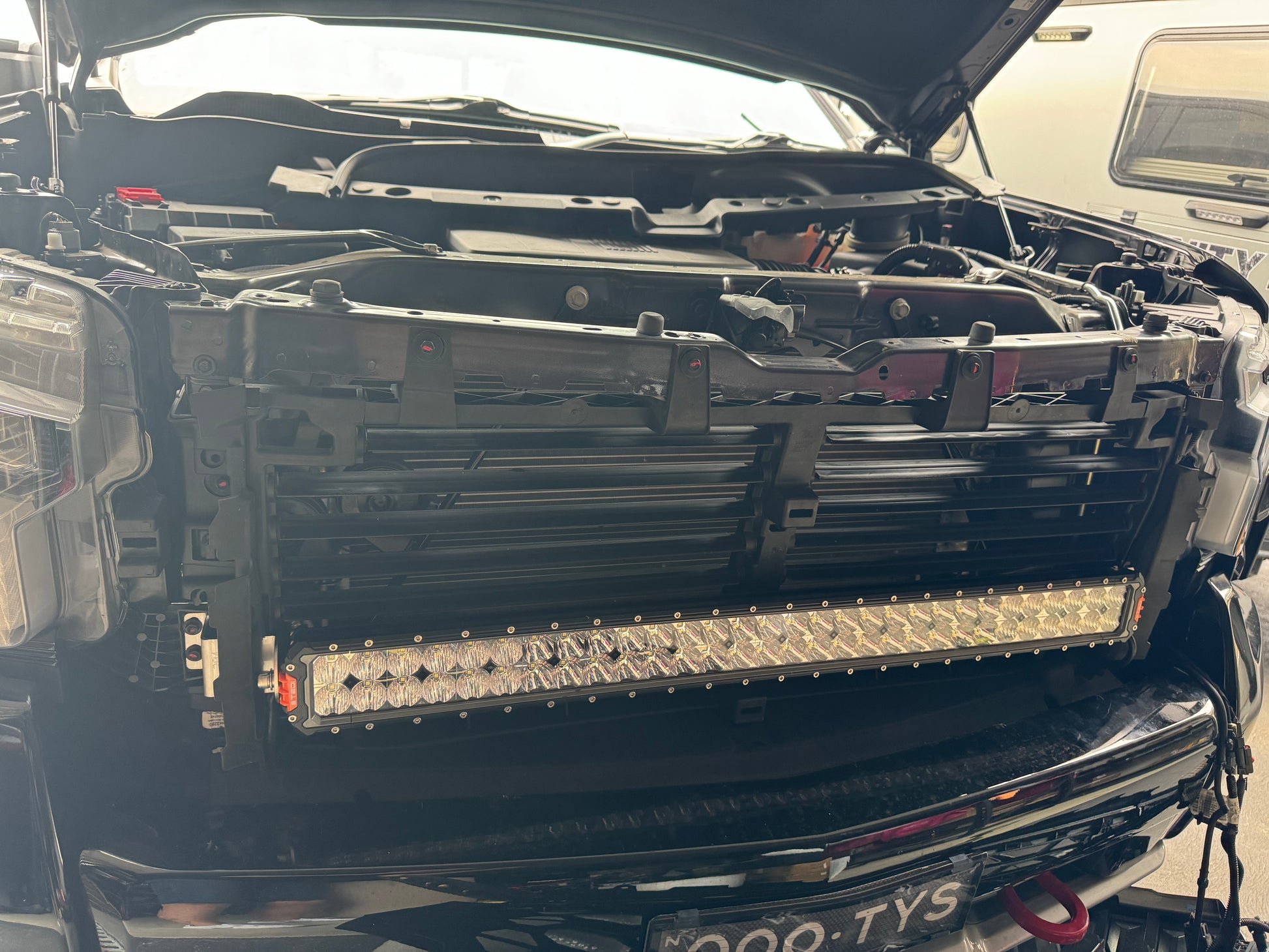

We do recommend for easier fitment to remove the bottom row of louvers which the light bar will sit in front of anyways. The louvers have small splines on each end that attach them to the louver frame, with the louvers open, slightly pull the middle of the louver upwards so its bending and remove the outside spline and then slide the inside spline out.
The louvers will still work correctly and properly without the bottom louvers in place as they are all connected.
It is possible to do this without removing a louver on the ZR2, however removing them avoids the risk of the louver hitting the light. Don't forget to position the light at night before putting the vehicles grill back together.
