Chevrolet Silverado 2500 - Under Bonnet Midi Fuse Kits & Mounting Bracket

Options available, can include but not limited to:
 1 x 300A Mega Fuse, 7 Midi Fuses, 12 Cable Lugs
PLUS: 1 x 40cm Double Insulated 0 B&S 330A Power Cable, 40cm Split Tubing & 2 Pieces Heat Shrink plus mounting bolts

Durable Finish and Conductivity.

Easy Installation for Multiuse Combinations.

ANM Fuse (Mega Fuse) only assembled (Fuse Supplied 300A)

ANS fuse can choose multiple parallel (20A-200A).

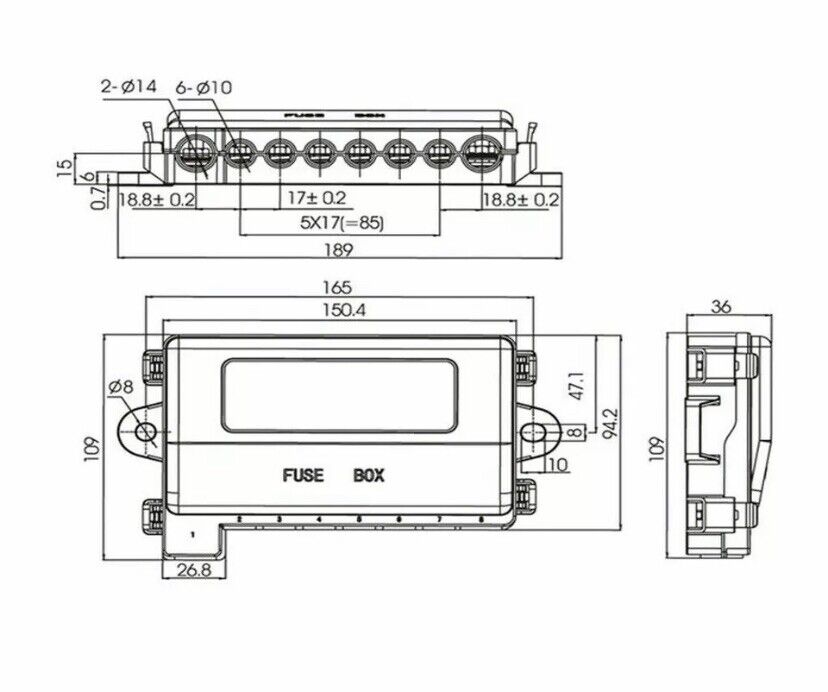

Specification:

Material: Plastic and Metal

Size: Approx 167mm x 105mm x 35mm

Inlet Fuse Type: MEGA FUSE (ANM)

Outlet Fuse Type: MIDI FUSE (ANS).

Fuse Voltage: 32V DC

Holder Voltage: DC 58Ｖ～ 32V

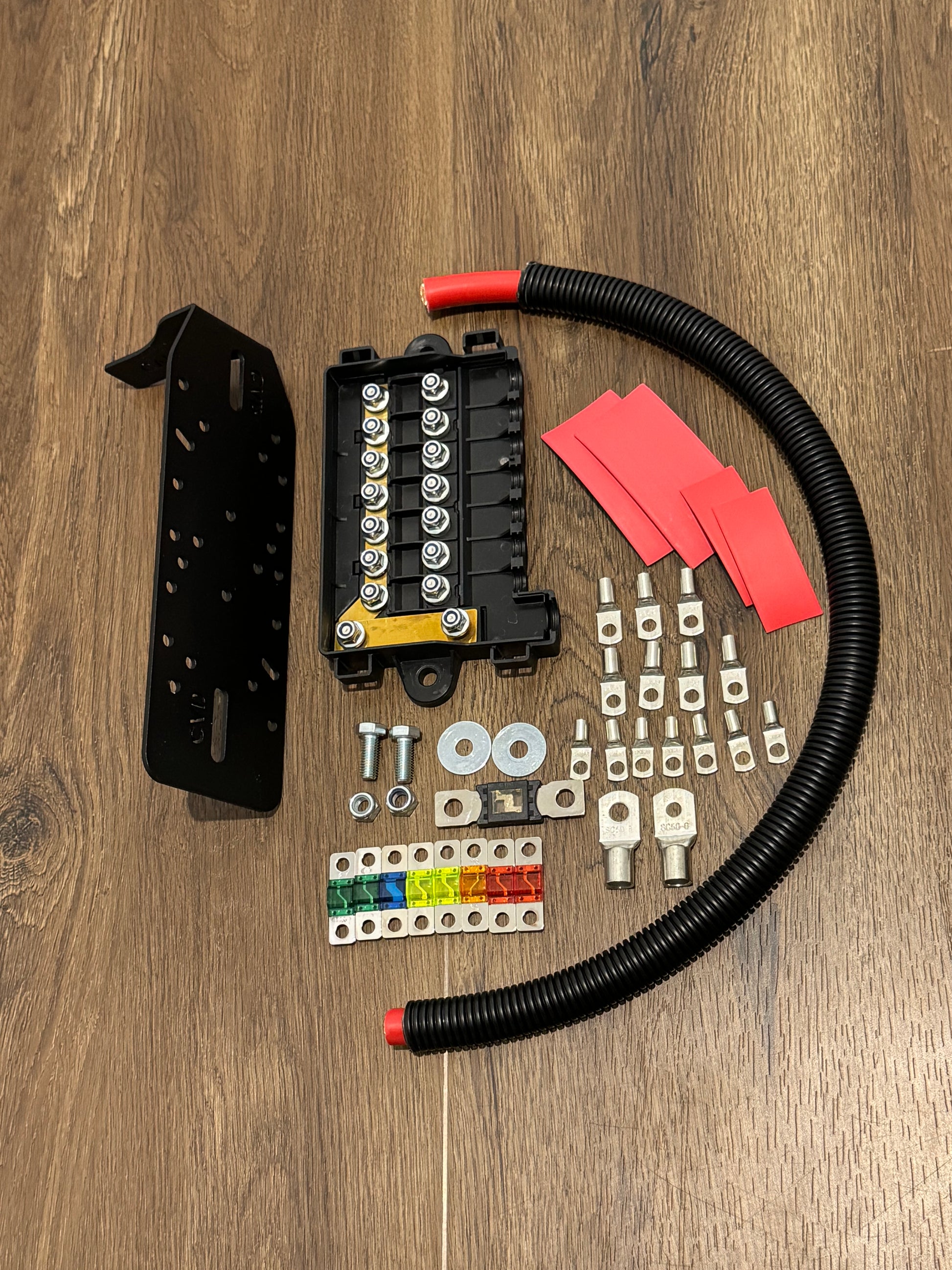

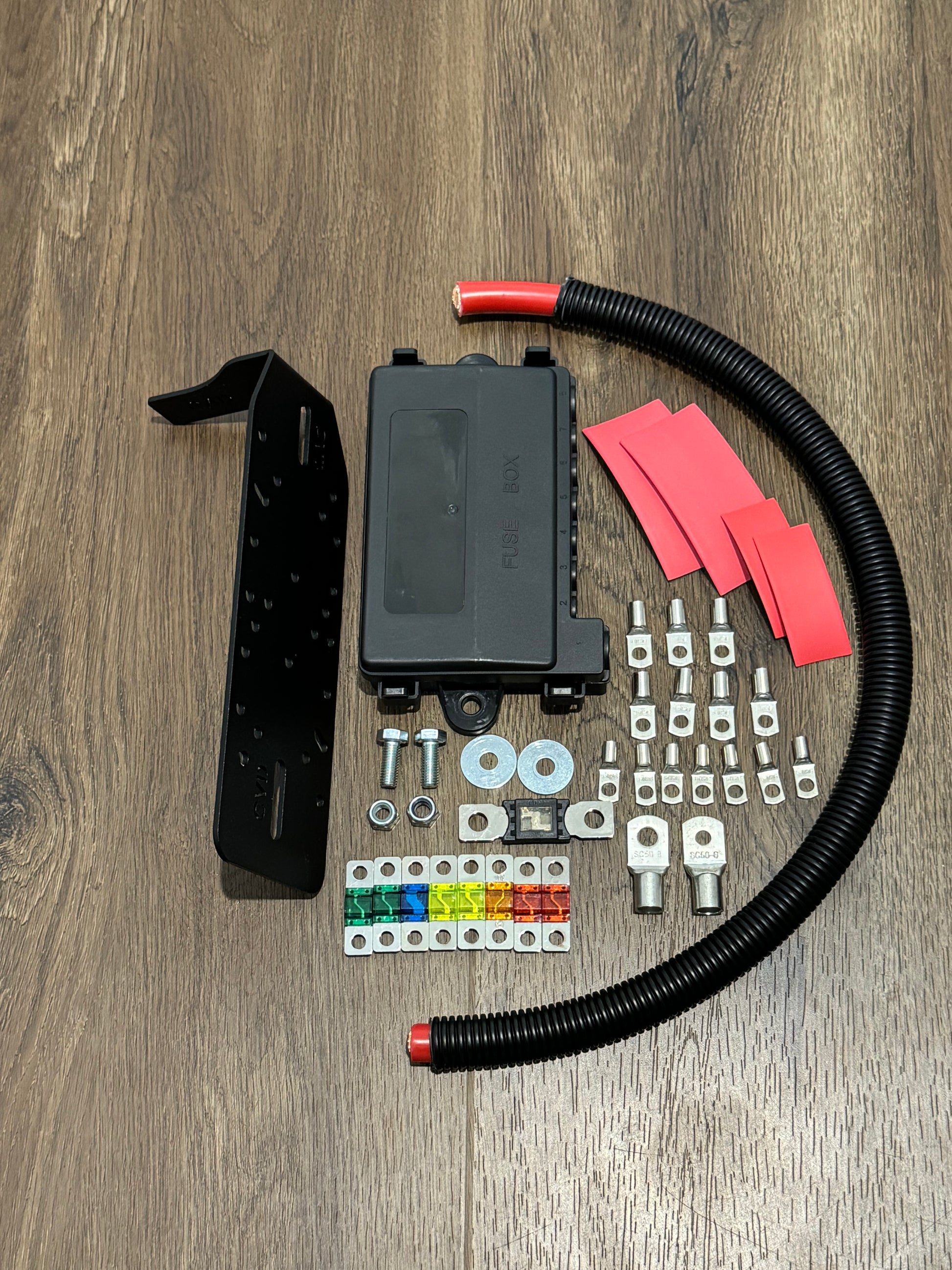

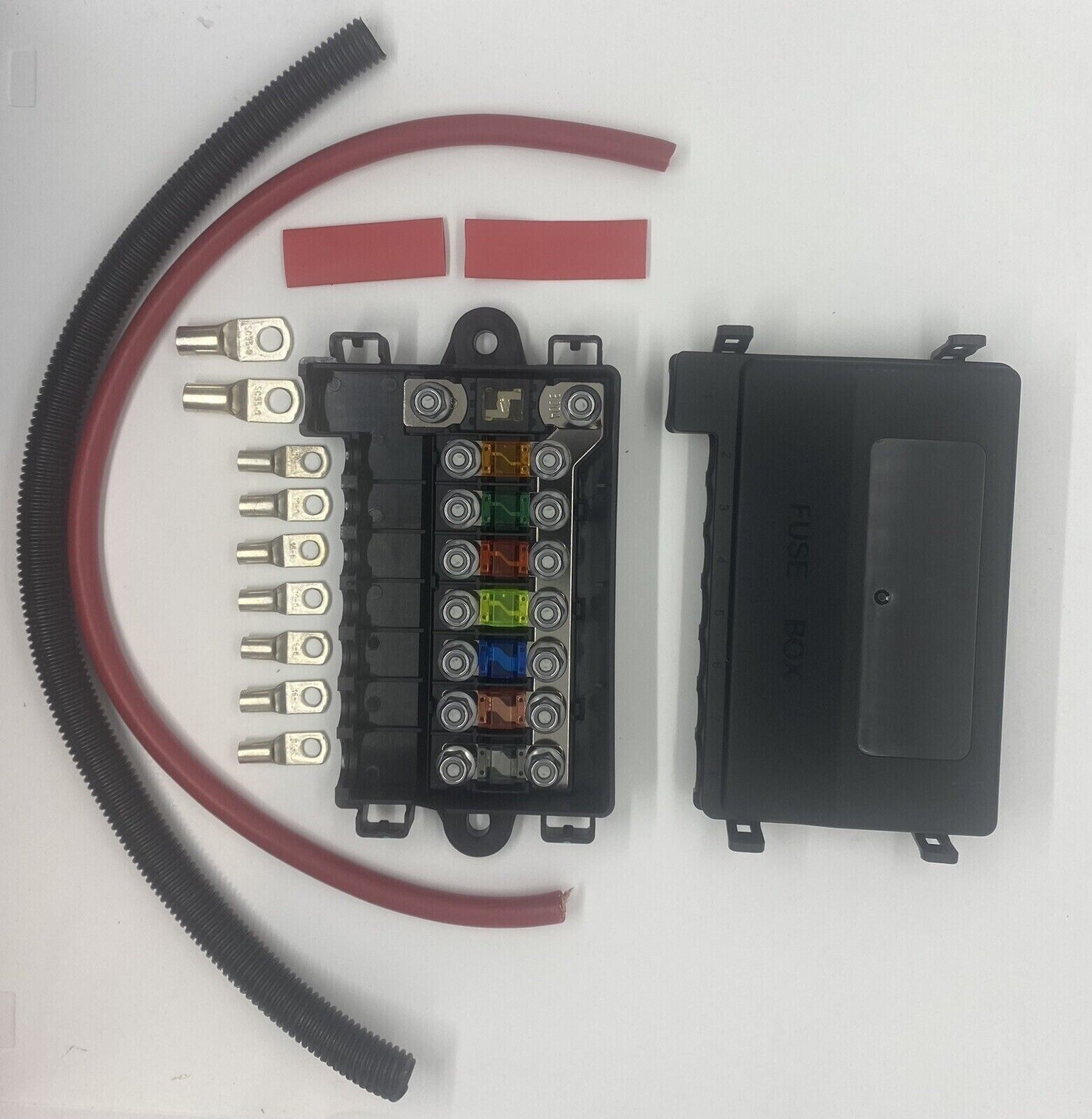

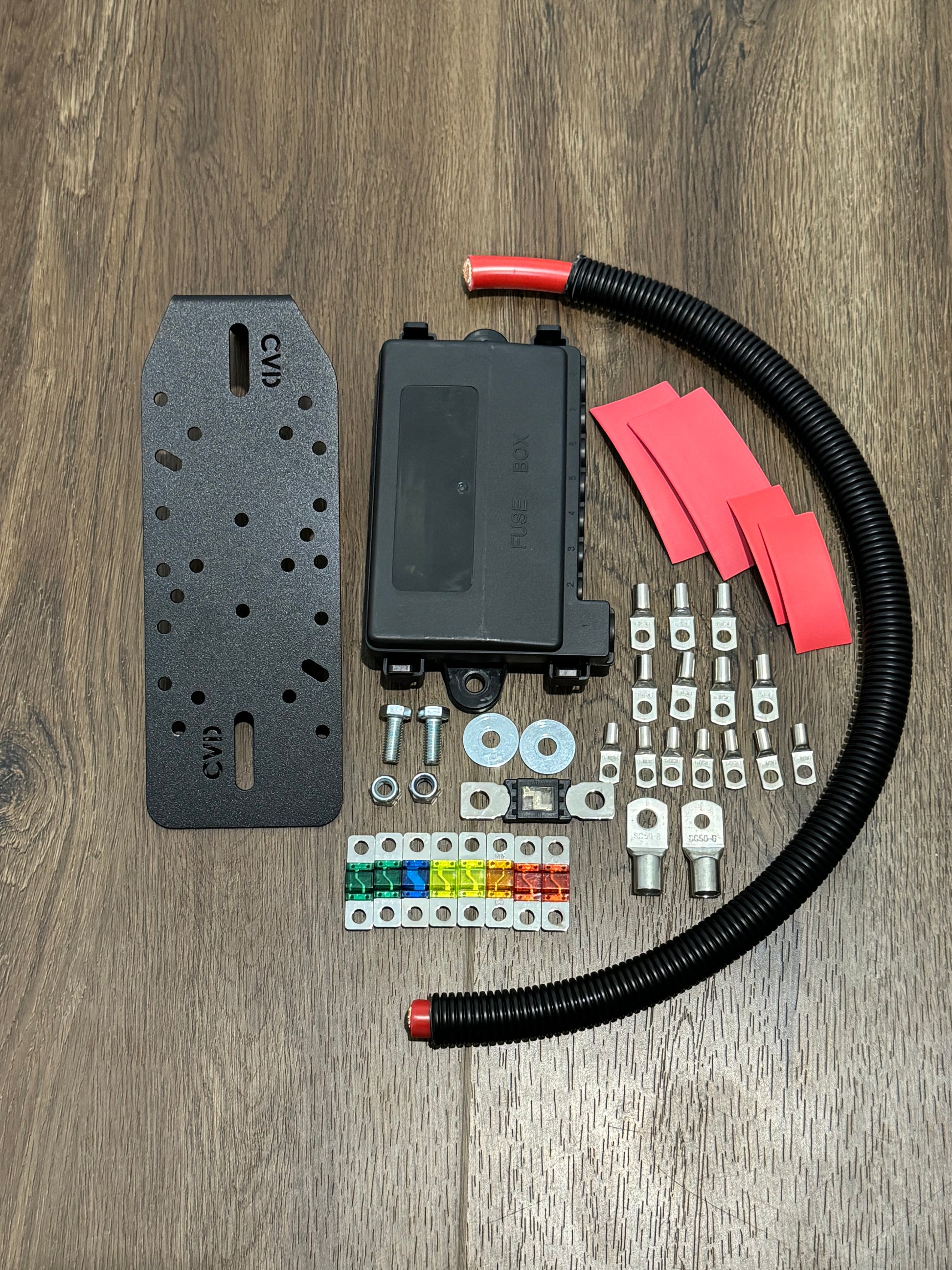

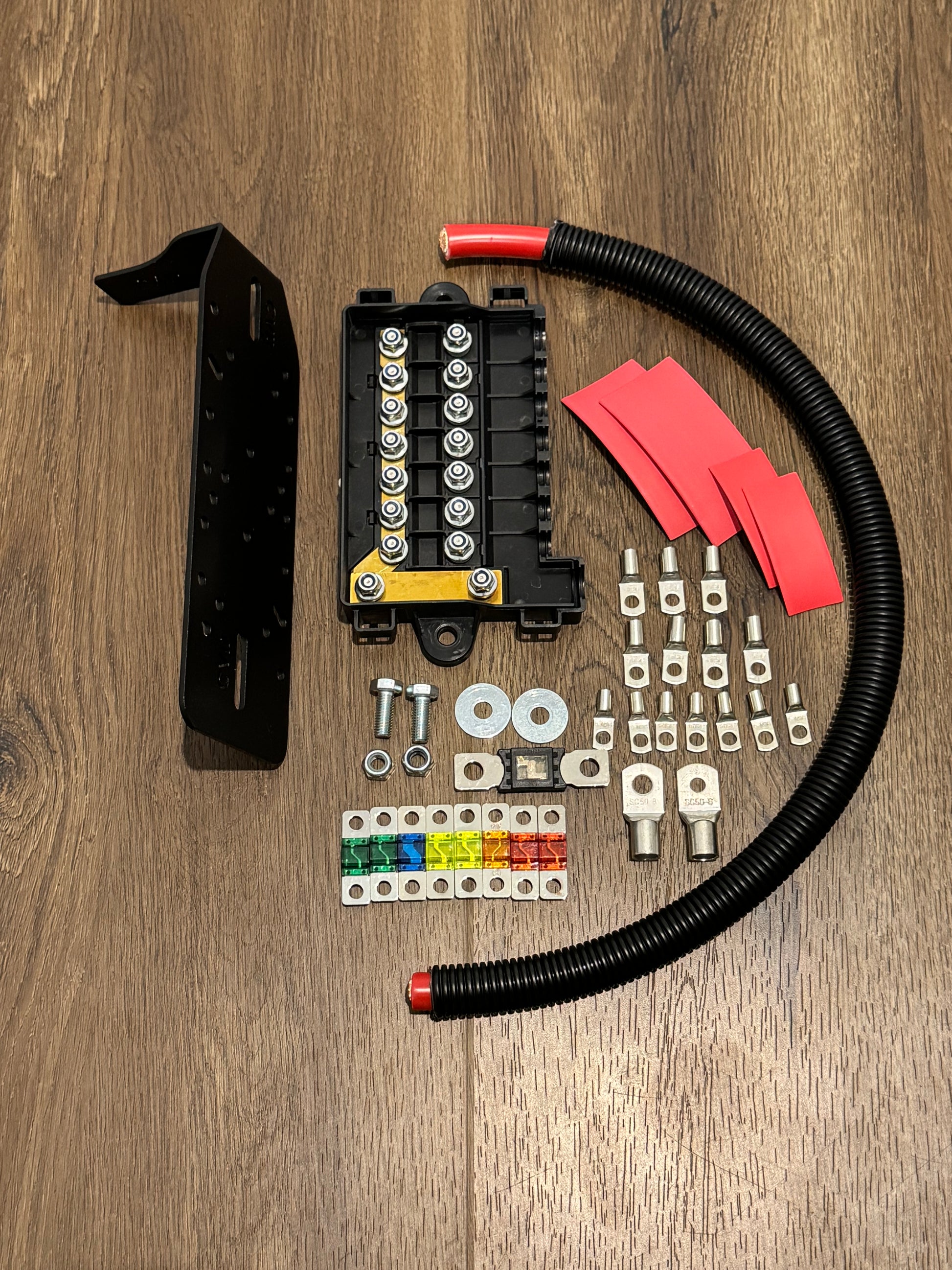

7 Way Package Includes:

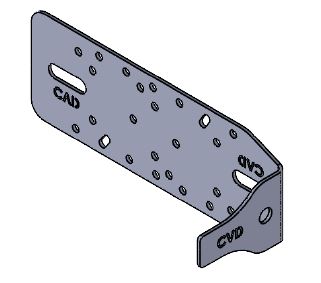

• 1 x Custom Rough Textured Powdercoat Finished Mounting Bracket

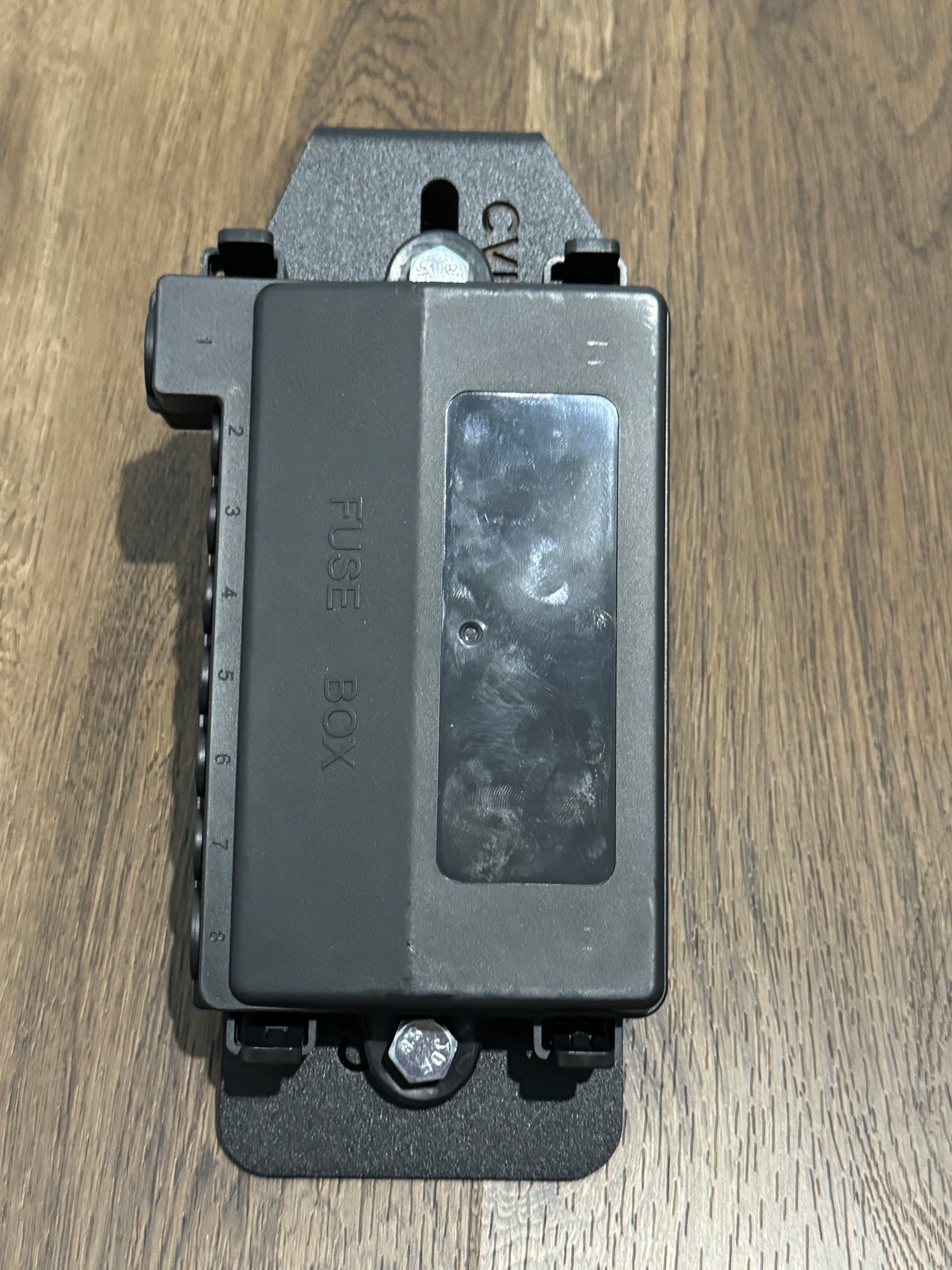

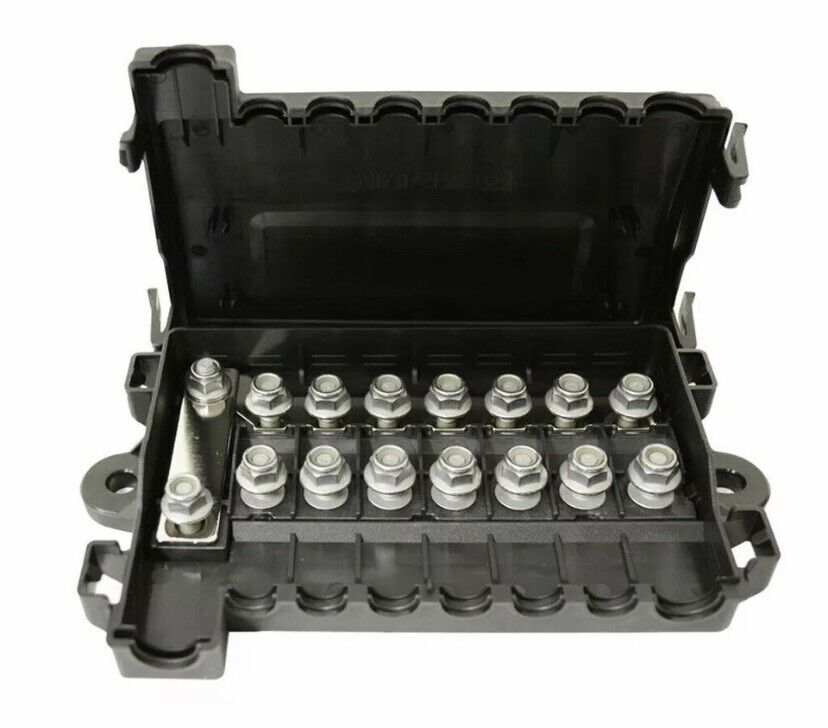

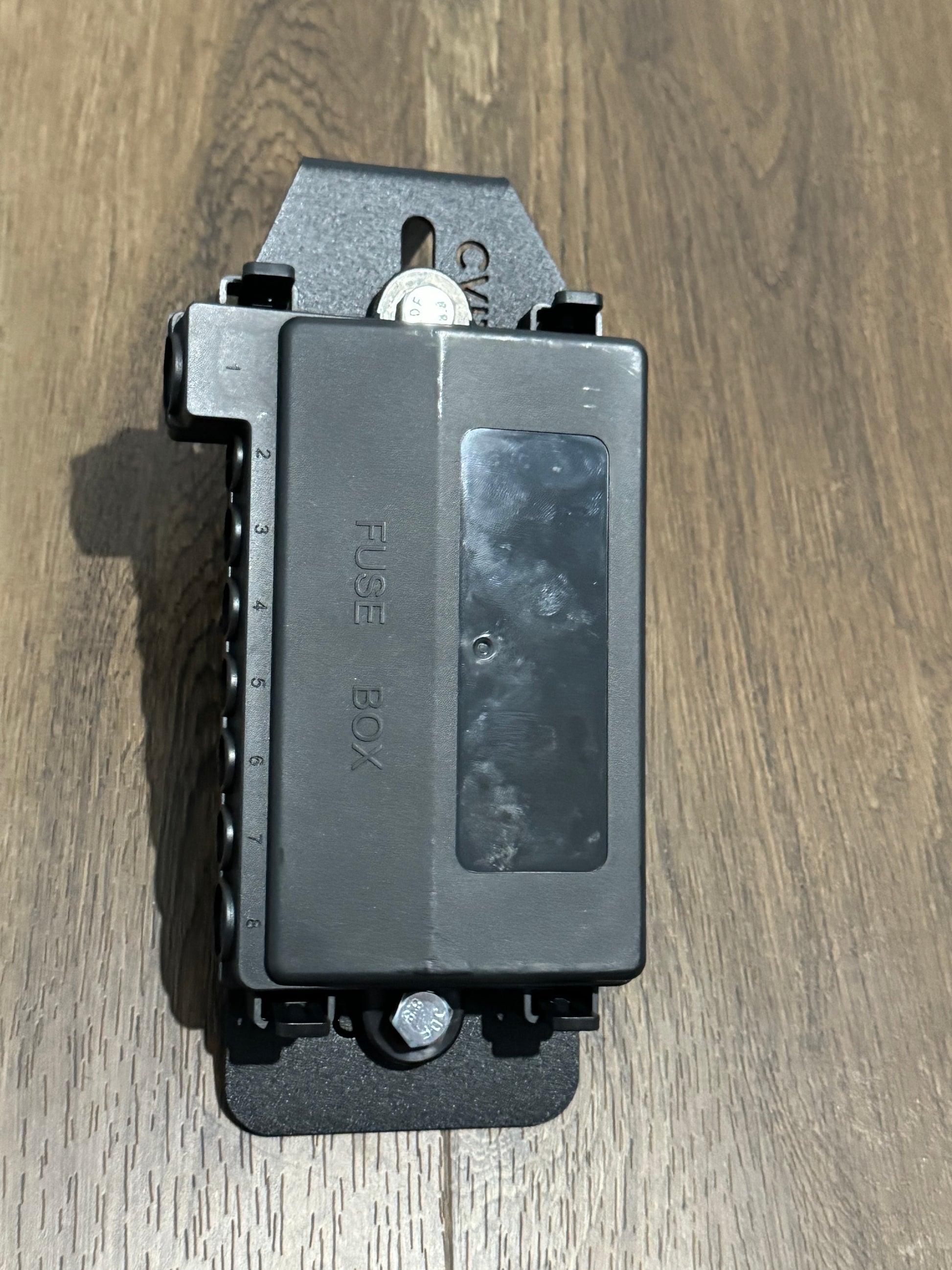

• 1 x 7 Way Midi Fuse Box Holder
• 1 x 300A Mega Fuse
• 8 x Midi Fuses (Standard Supply is 4x50A & 3x40A Midi Fuses unless stated otherwise at Checkout (Notes to Seller). Options from 20A-200A
• 2 x 50-8 Lugs (Positive Connection from Battery to Midi Fuse Holder)
  Note: Connection on Midi Fuse is 6mm (but 8mm Works with supplied flanged nuts)
• 5 x 10-6 Lugs (Suits 10mm2 cable)
• 5 x 16-6 Lugs (Suits 13-16mm2 (6B&S Cable))

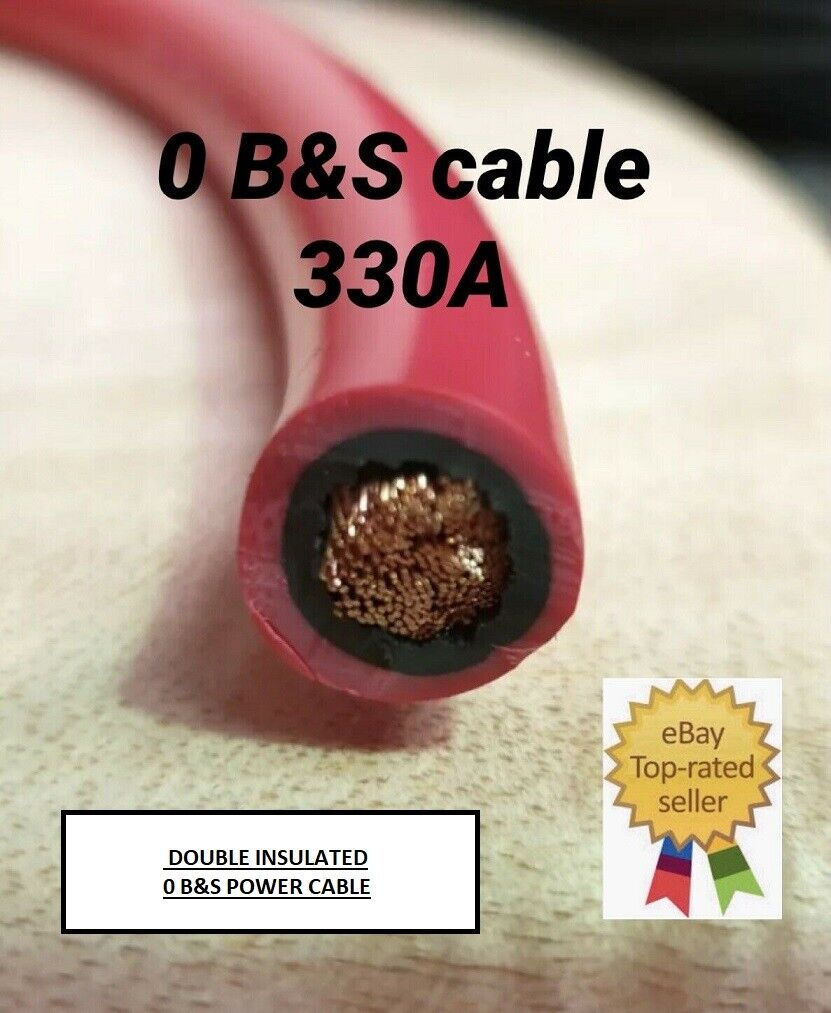

• 1 x 35cm Double Insulated 0 B&S rated to 330A Power Cable
• 1 x 35cm Corrugated Split Tubing
• 4 x 5cm Heat Shrink to Suit Corrugated Tubing on Power Cable
• 2 x M8 x 20mm Buts, Washers and Nylocks

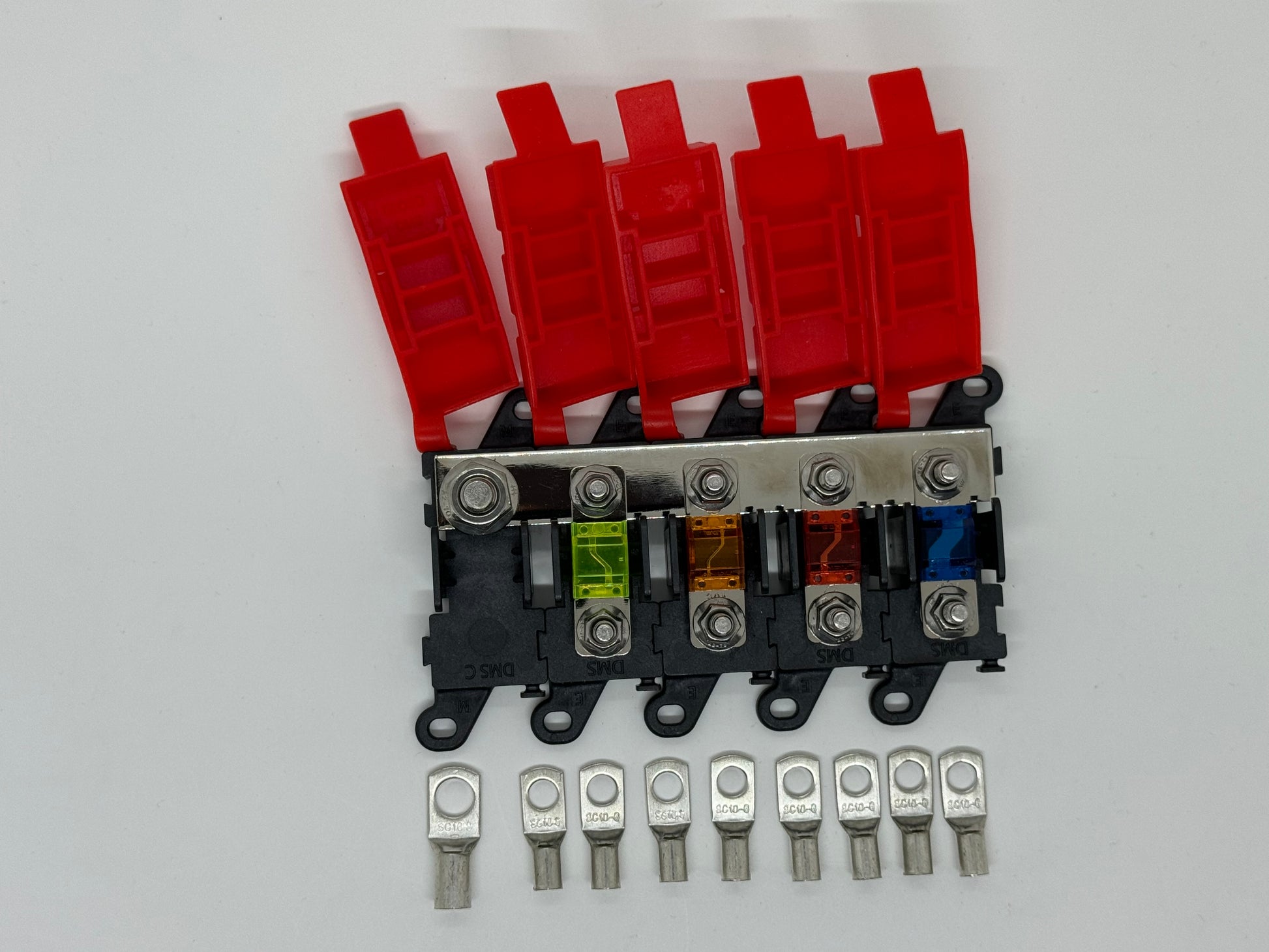

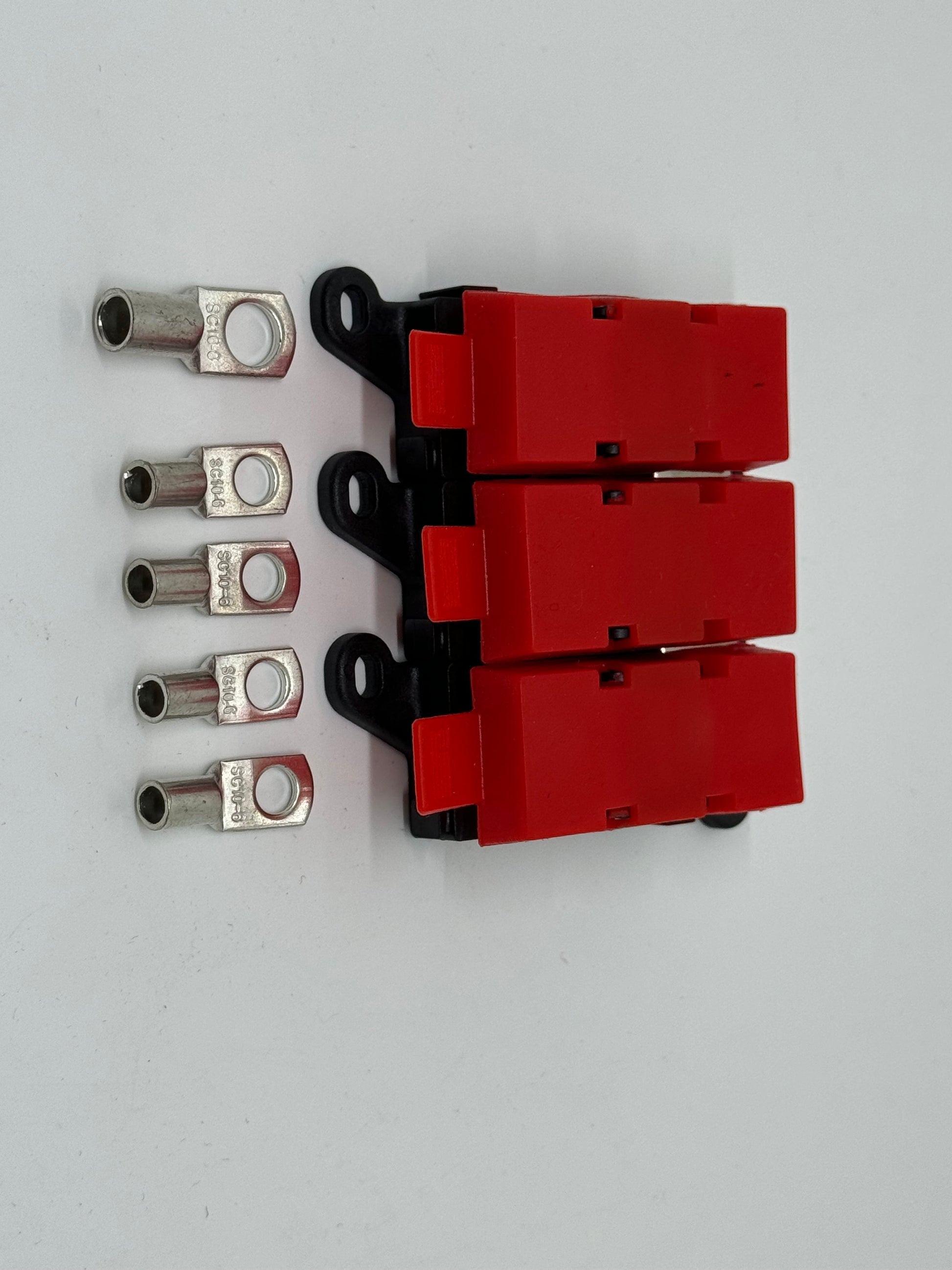

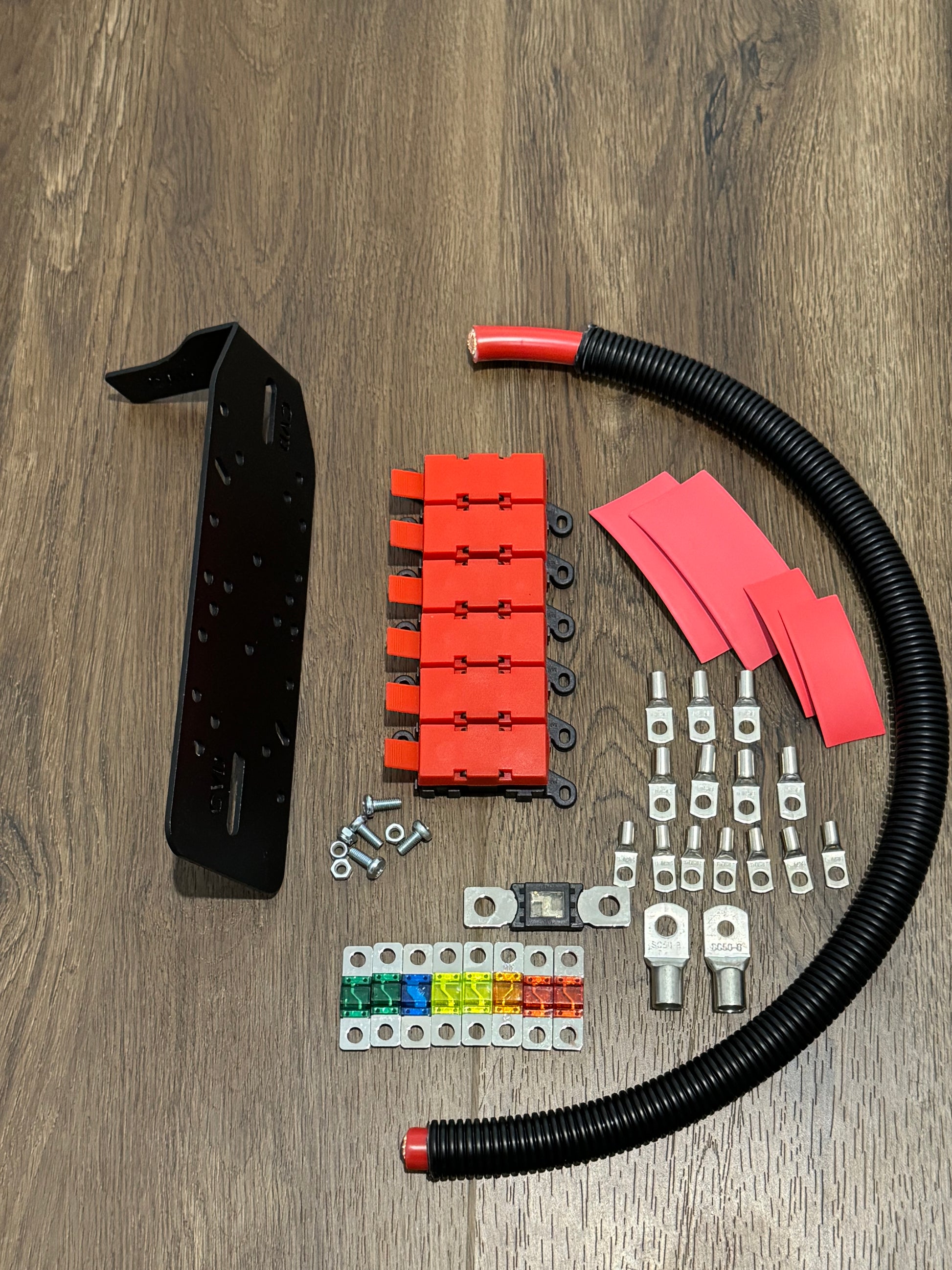

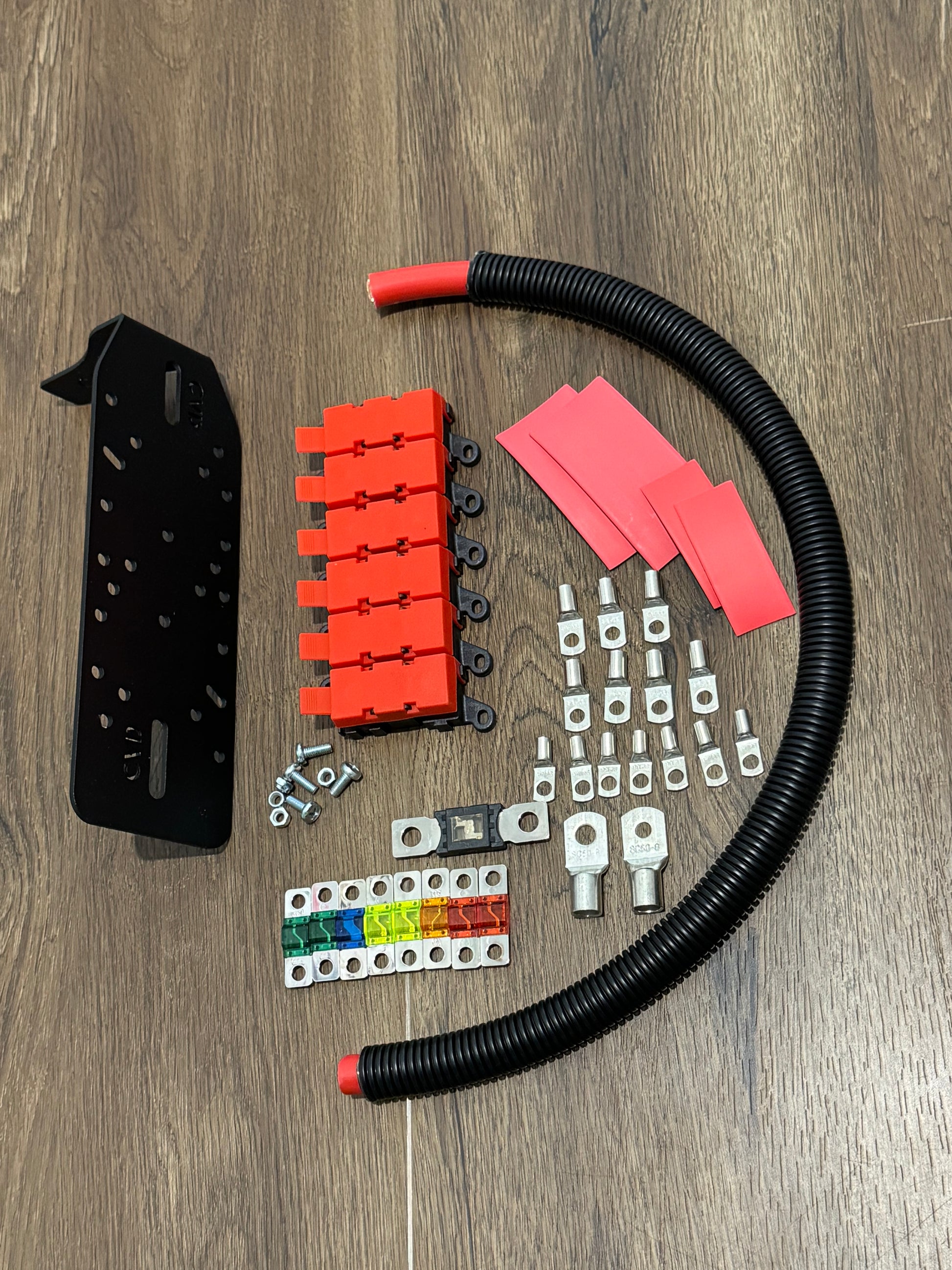

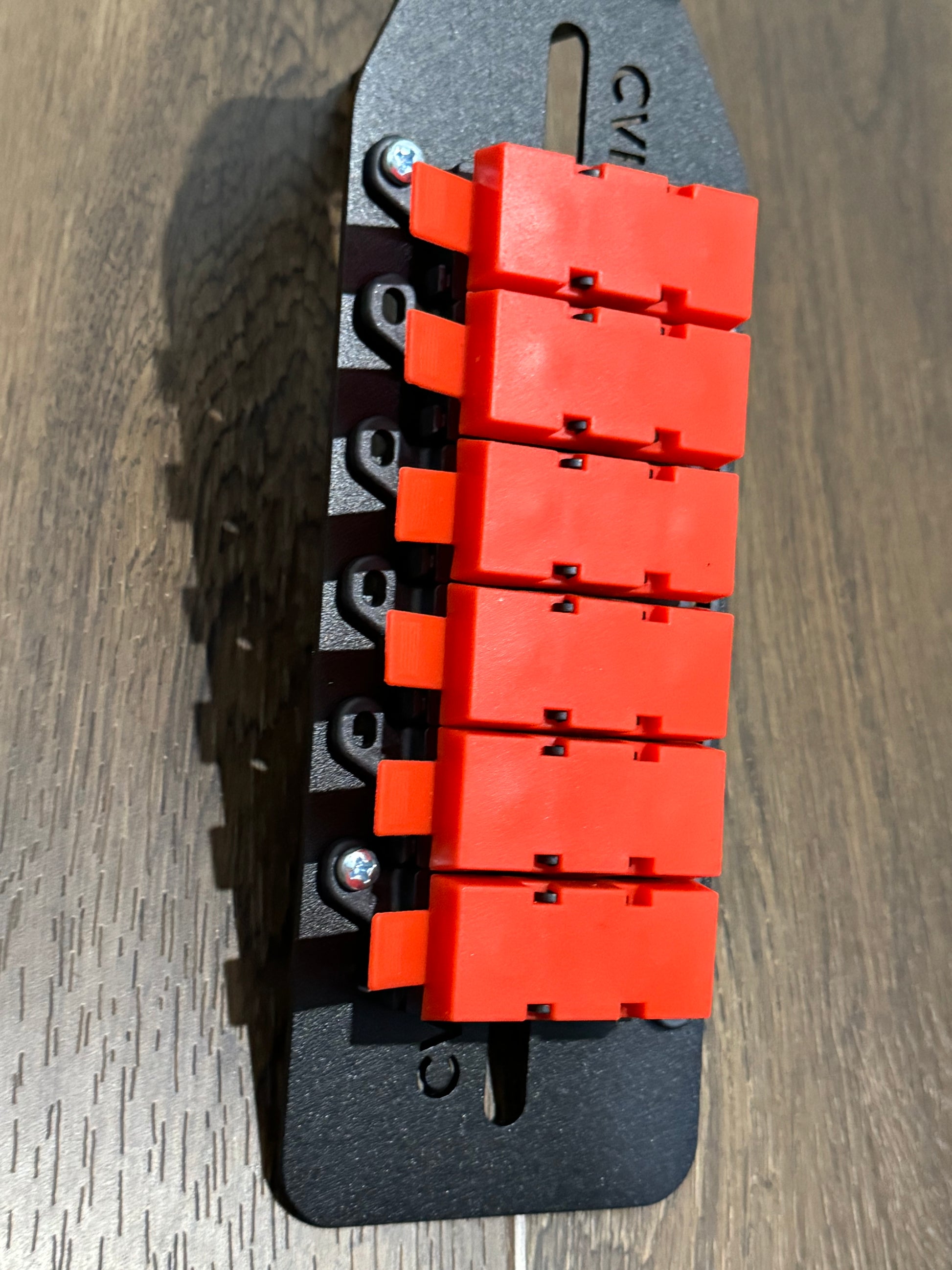

3-6 Way Package/s Include:

• 1 x Custom Rough Textured Powdercoat Finished Mounting Bracket

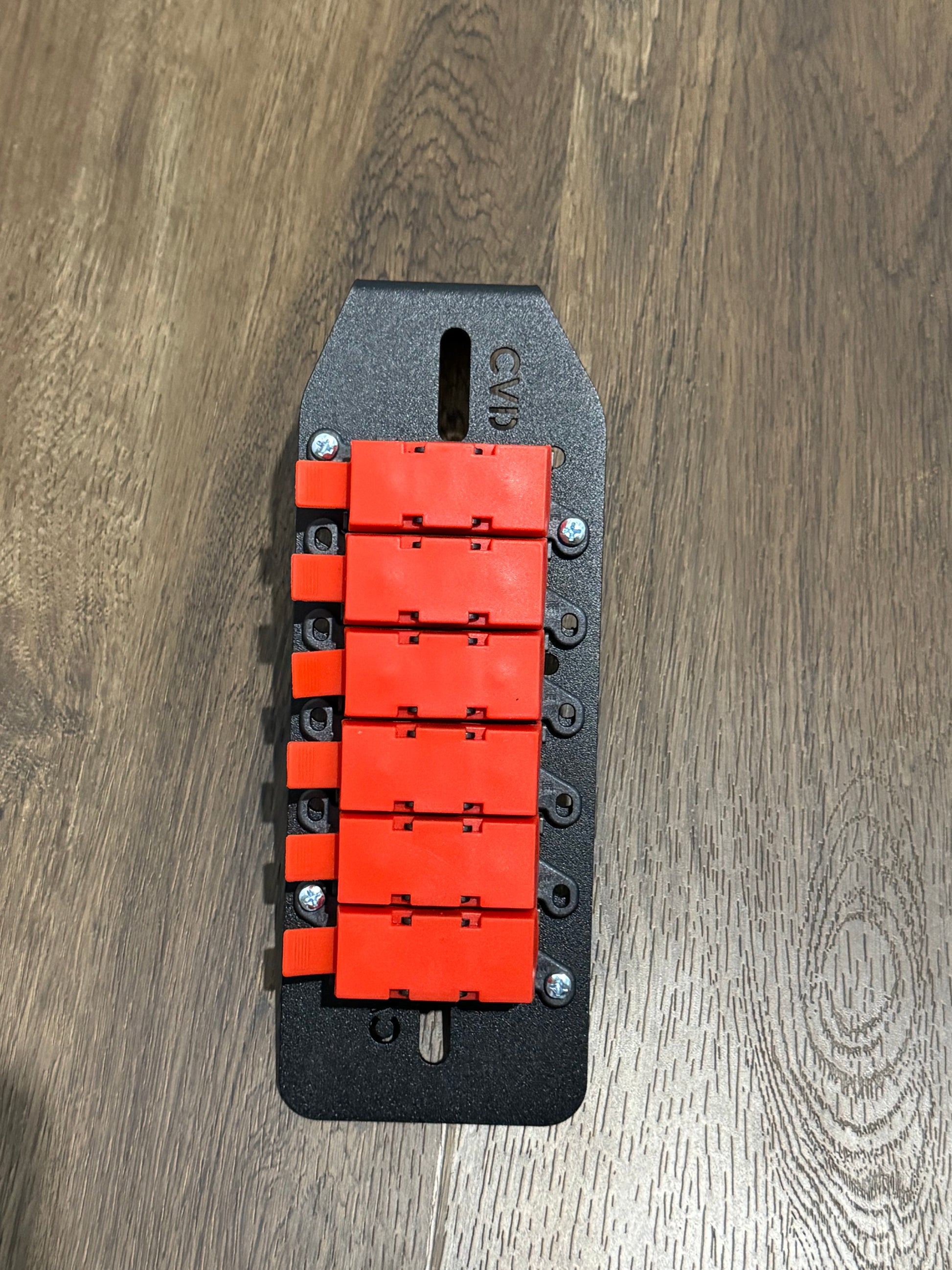

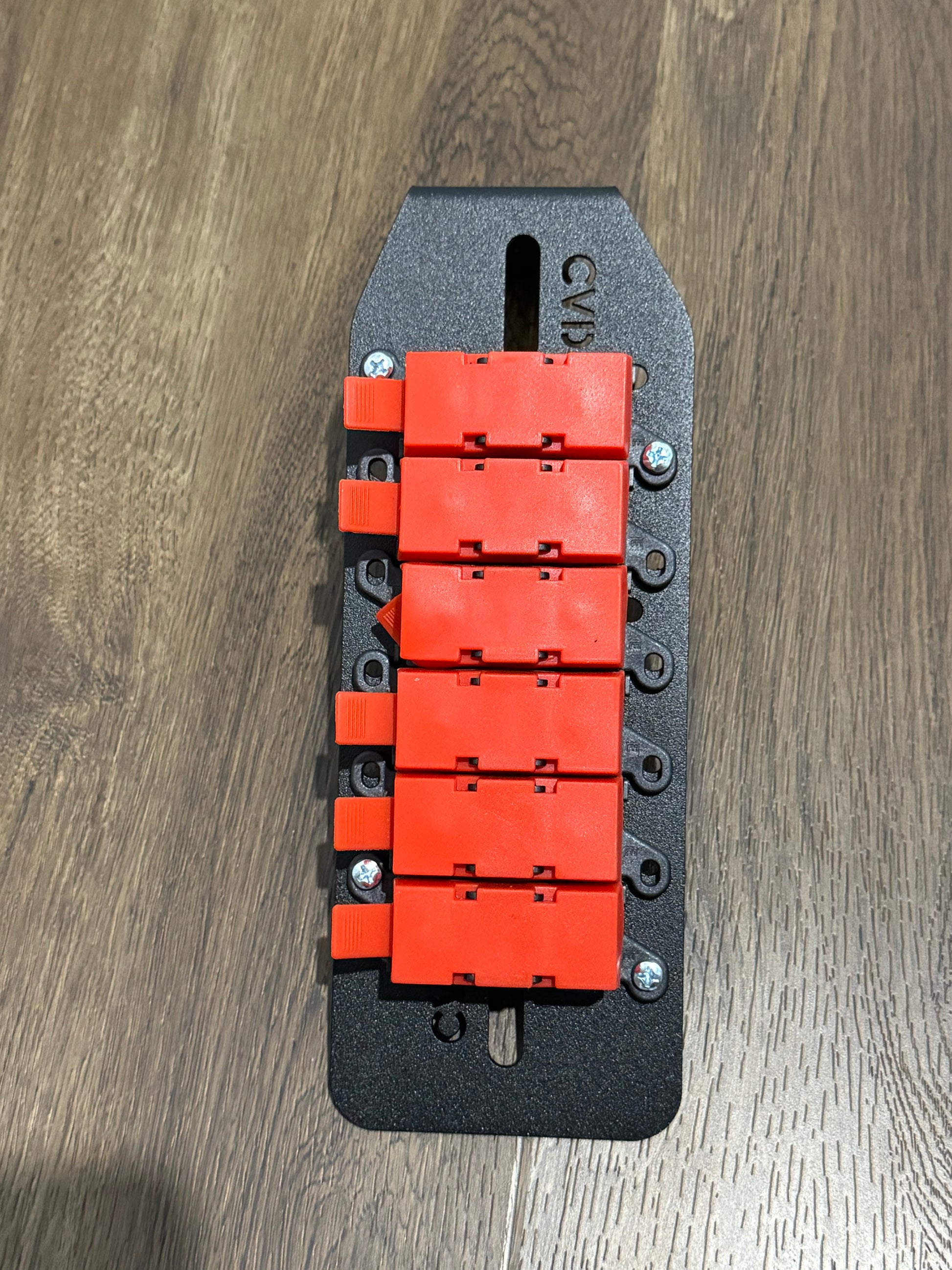

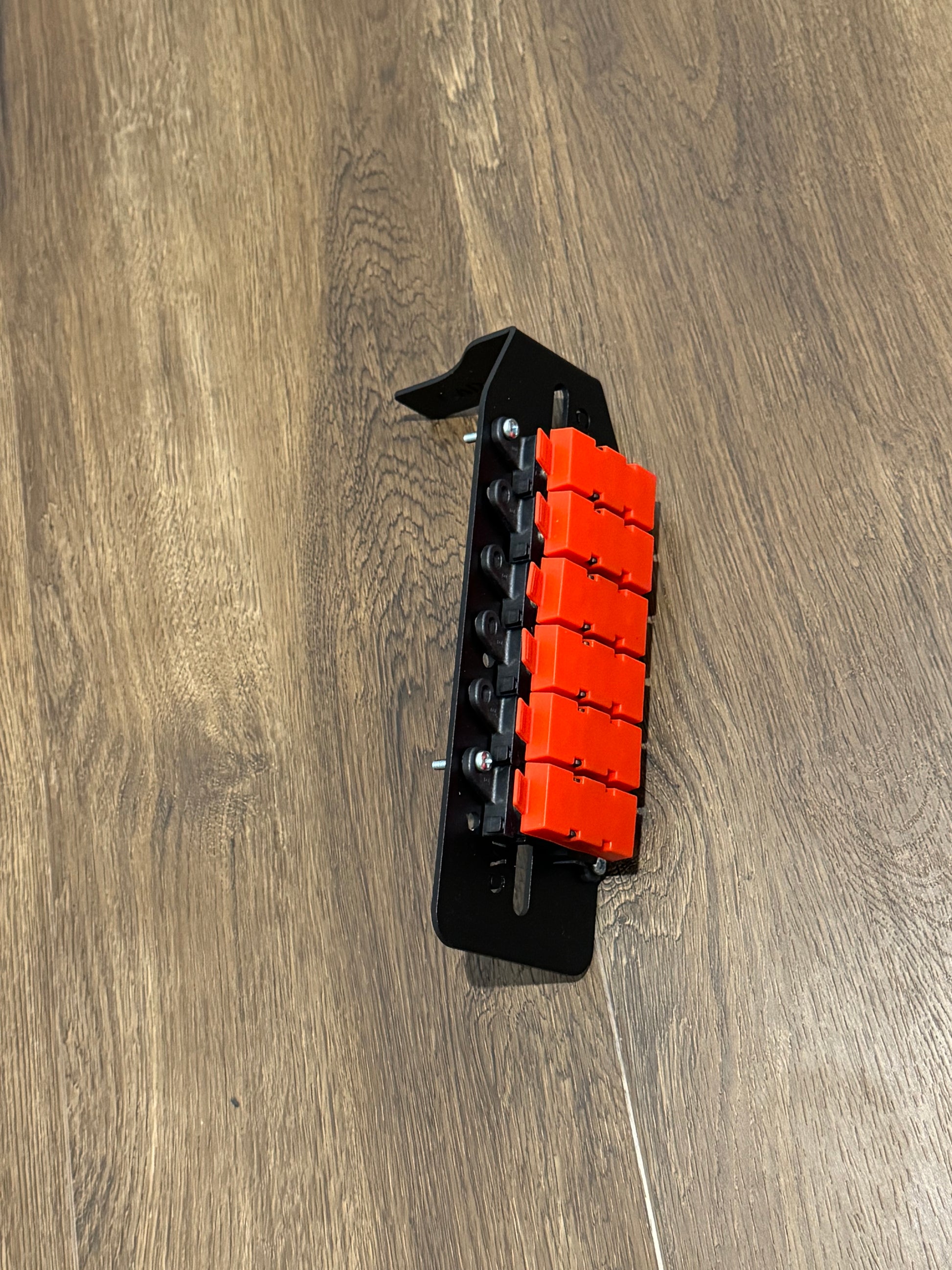

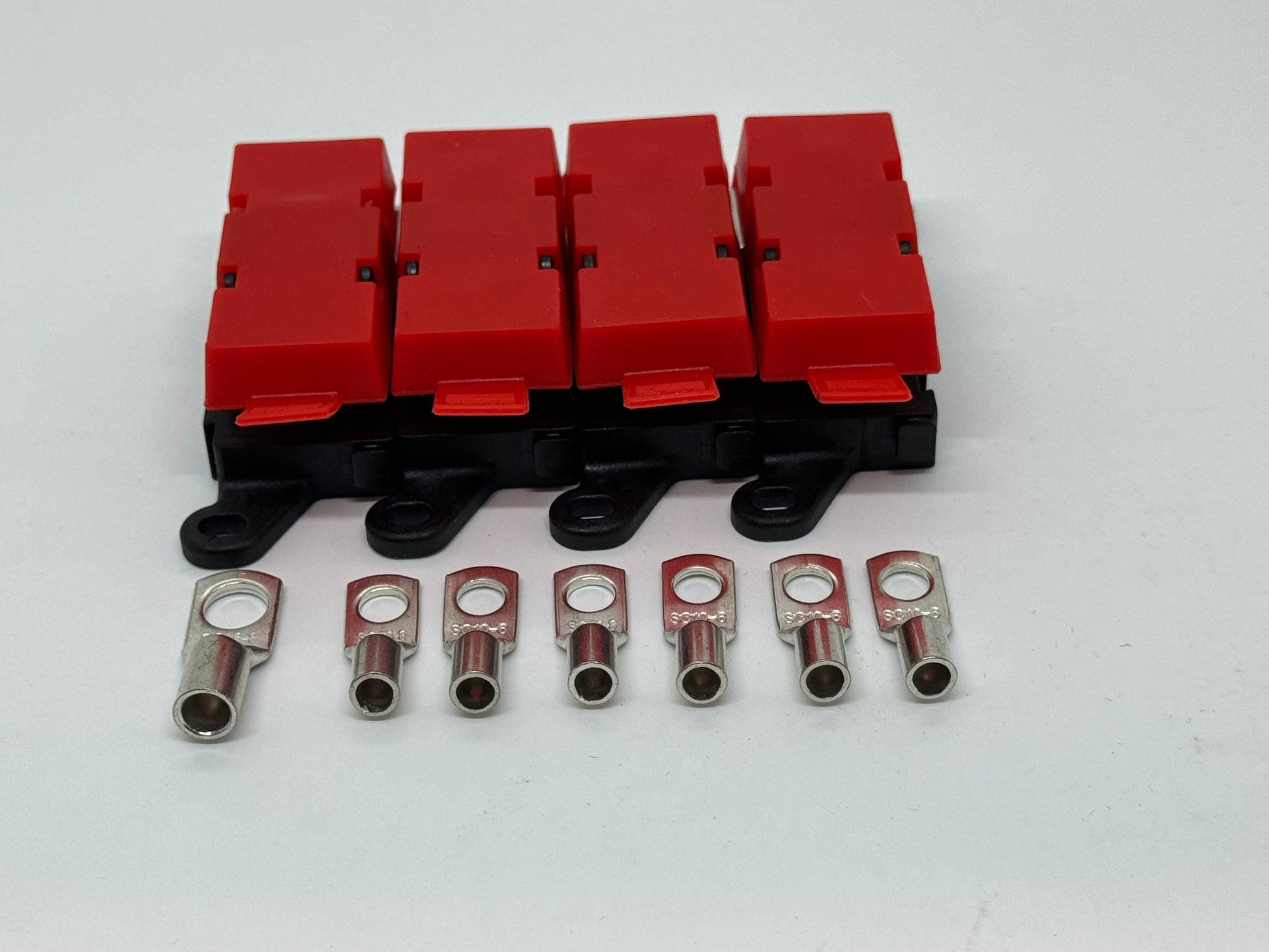

• 3-6 Joinable Midi Fuse Holders with Busbar

• 3-6 x Midi Fuses (Standard Supply is 50A & 40A Midi Fuses unless stated otherwise at Checkout (Notes to Seller). Options from 20A-200A
• 1 x 50-8 Lug Positive Connection to Battery
• 1 x 50-8 Lug Connecting Power Cable to Midi Fuses
  Note: Connection on Midi Fuse is 6mm (but 8mm Works with supplied flanged nuts)
• 3-6 x 10-6 Lugs (Suits 10mm2 cable)
• 3-6 x 16-6 Lugs (Suits 13-16mm2 (6B&S Cable))
• 1 x 40cm Double Insulated 0 B&S rated to 330A Power Cable
• 1 x 40cm Corrugated Split Tubing
• 4 x 5cm Heat Shrink to Suit Corrugated Tubing on Power Cable
• 4 x M5 x 20mm Mounting Bolts to hold Midi Fuses to plate

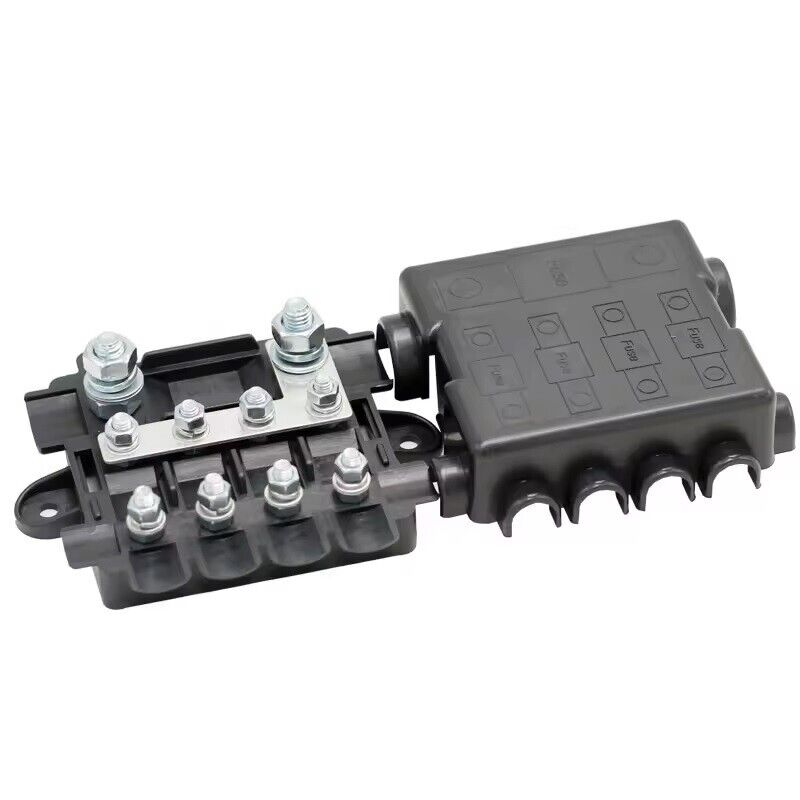

4+1 Way Package/s Include:

• 1 x Custom Rough Textured Powdercoat Finished Mounting Bracket
• 1 x 4+1 Combi Fuse Box (Midi & Mega Fuse)

• 4 x Midi Fuses (Standard Supply is 50A & 40A Midi Fuses unless stated otherwise at Checkout (Notes to Seller). Options from 20A-200A
• 1 x 200A Mega Fuse
• 2 x 50-8 Lug Positive Connection to Battery
• 1 x 50-6 Lug Connecting Power Cable to Midi Fuses

• 4 x 10-6 Lugs (Suits 10mm2 cable)
• 4 x 16-6 Lugs (Suits 13-16mm2 (6B&S Cable))
• 1 x 400mm 0B&S Double Insulated 330A Power Cable & Tubing
• Heat Shrink



Installation:

Easy installation Process.

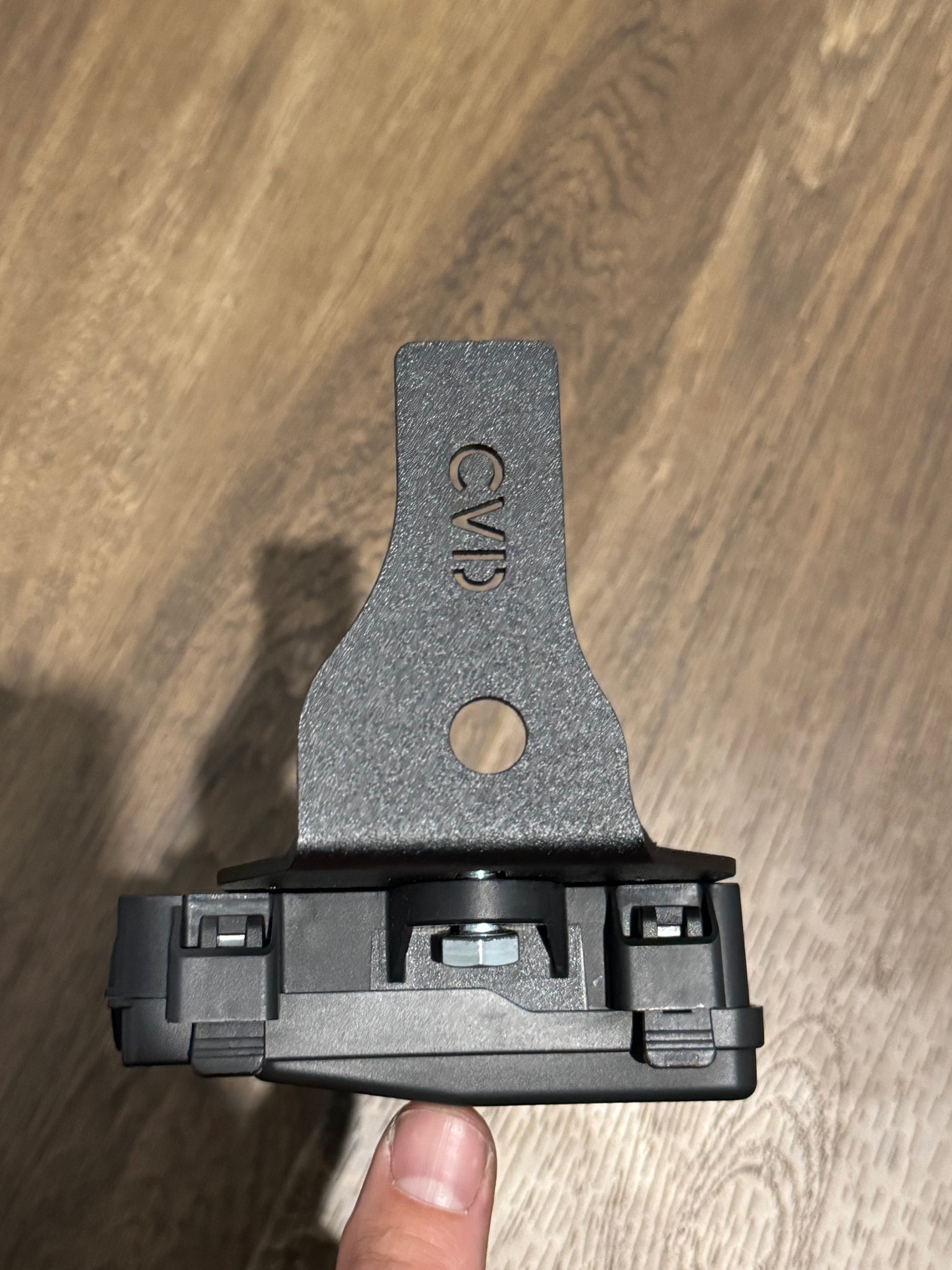

1. Fit Midi Fuse Holder to plate using provided M8 x 20mm Bolts

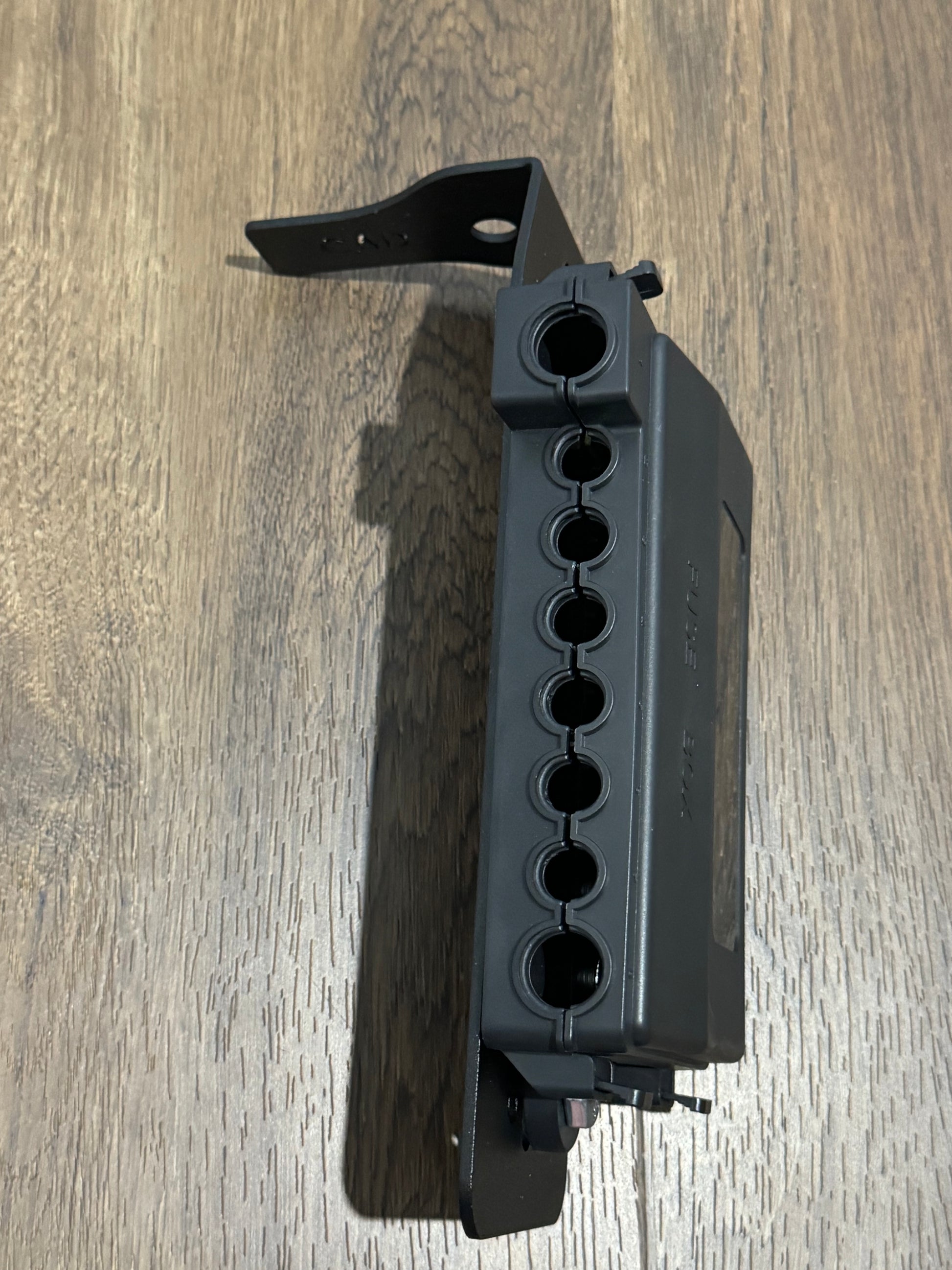

   • For best fitment have the power outlets facing backwards, with the input for the main power lead at the top.

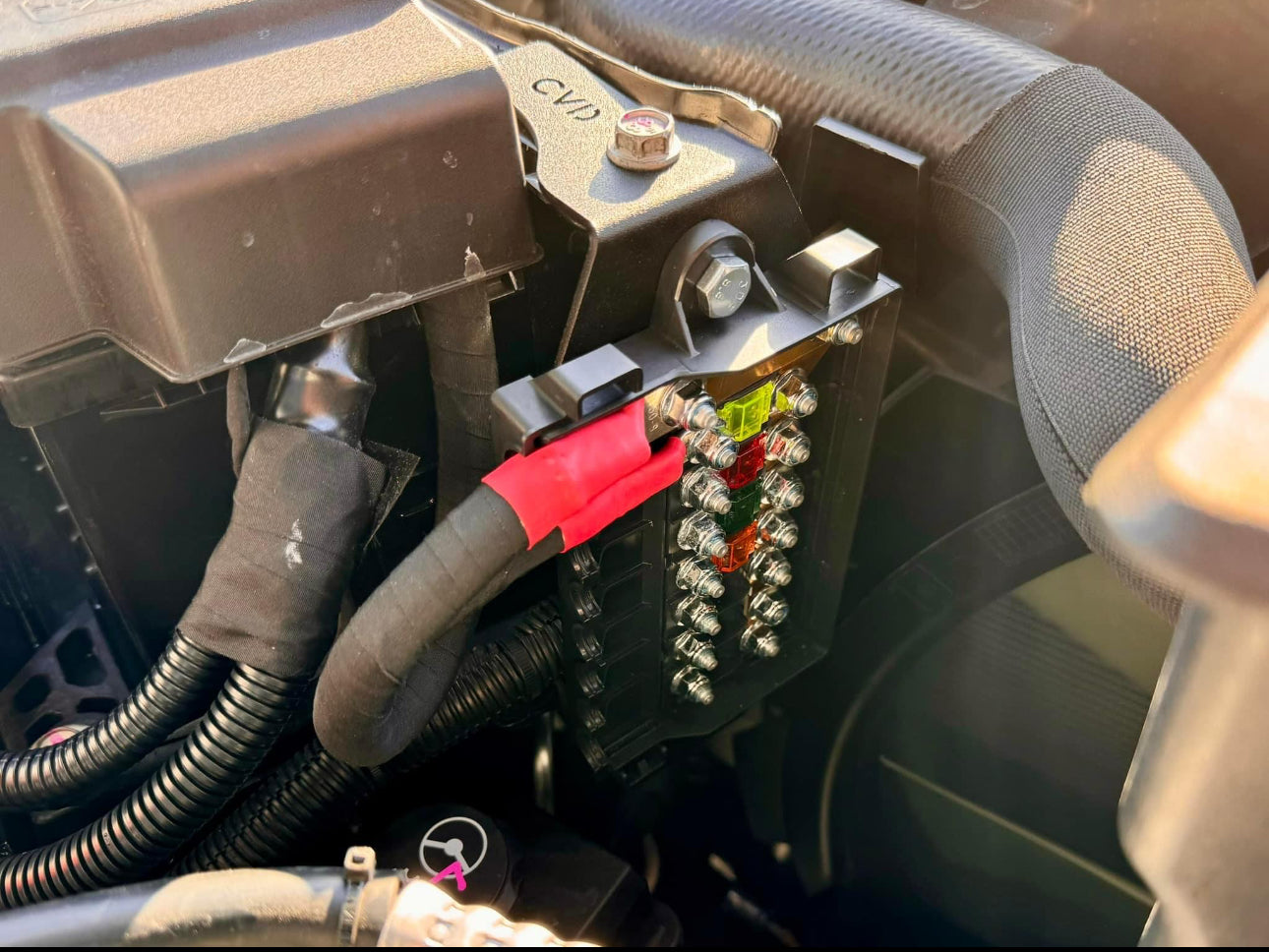

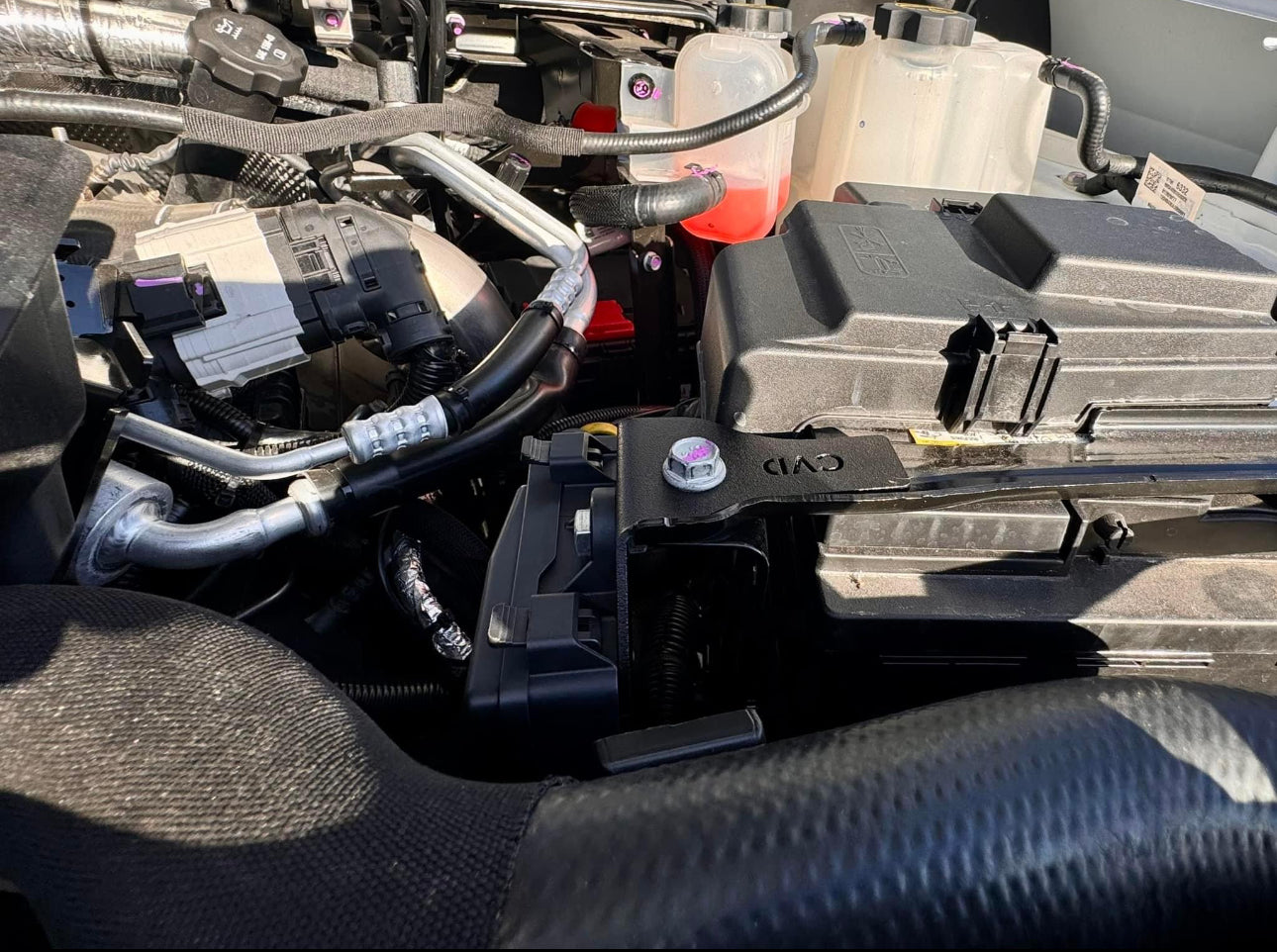

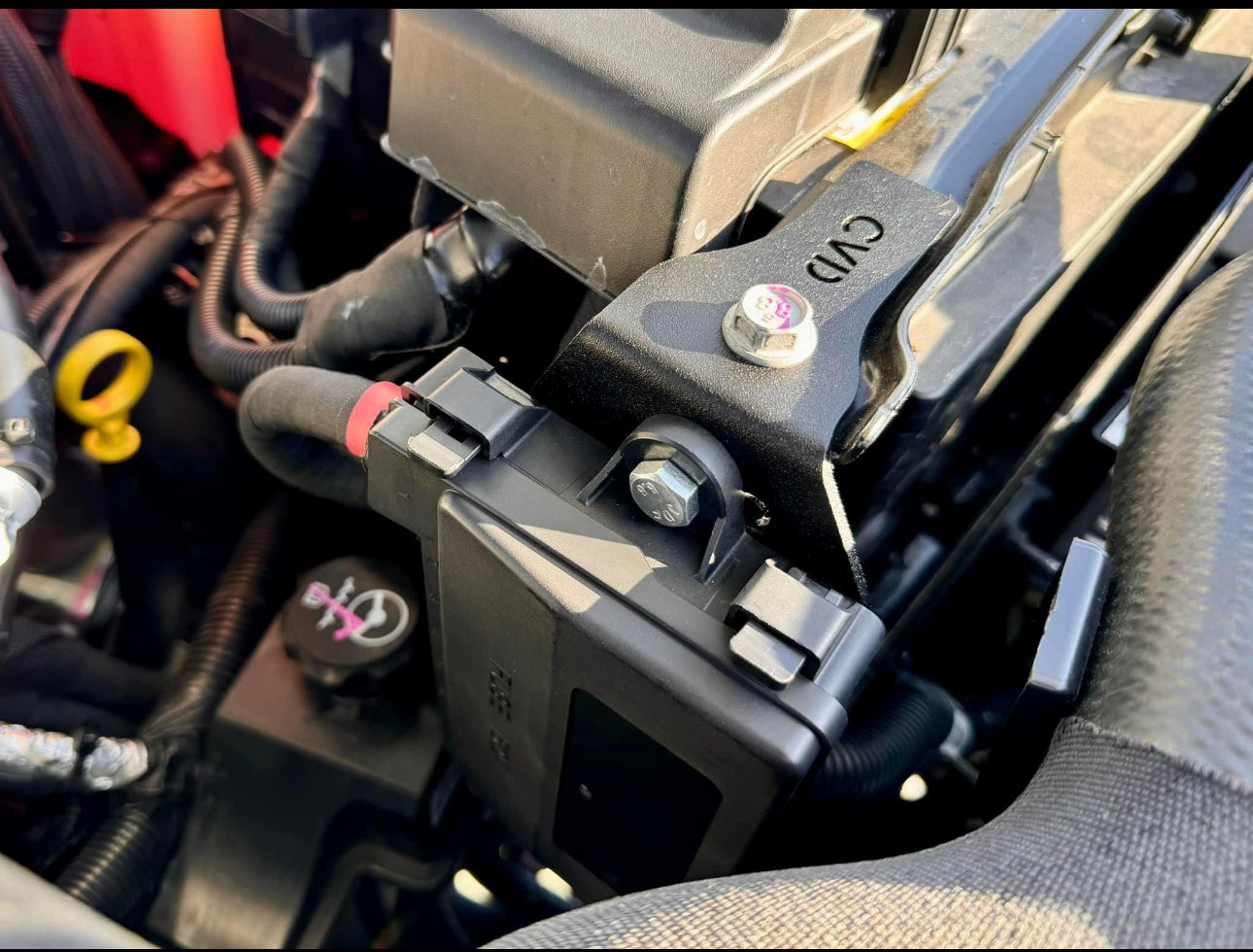

        2. Remove Bolt on top of Battery Claim, place CVD mounting plate into the contoured curve of the top factory battery brace and put the factory bolt back into the top battery brace and tighten.

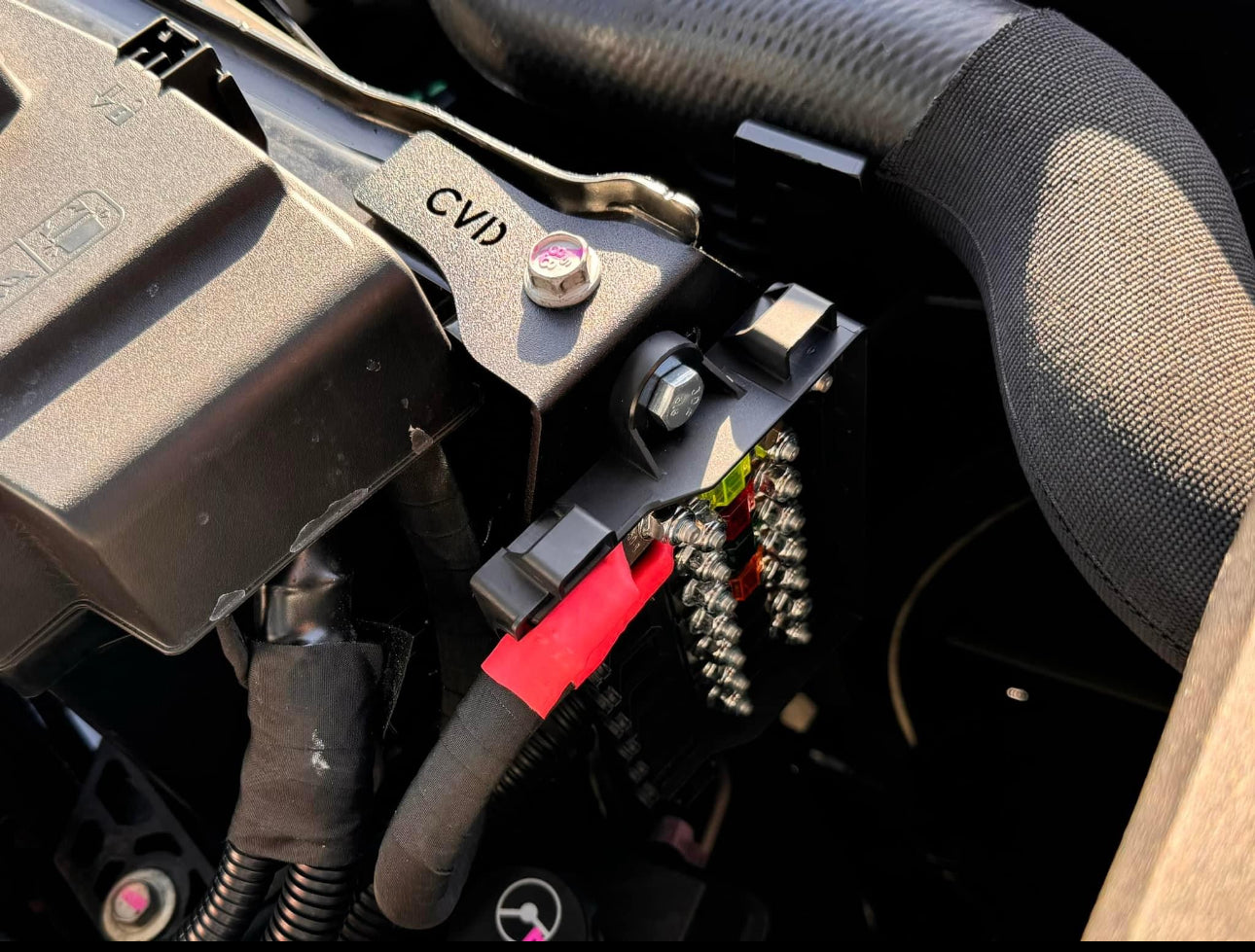

        3. Our unit should sit down the side of the factory battery and behind the radiator.

        4. If Main power cable and Mega Fuse into the fuse Holder using the provided power cable, conduit and 50-8 lug. Then install onto the factory outlet with the available 175A Mega Fuse in the Distribution Box.

Heat Shrink is included and provided for your installation as well as corrugated conduit to protect your cabling.

Note:

Please check the size measurement and the picture carefully before making payment.
