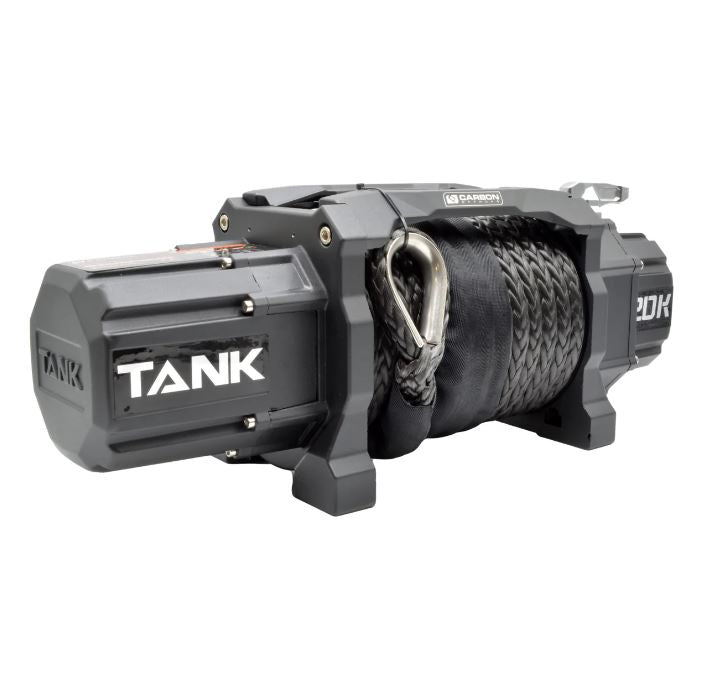

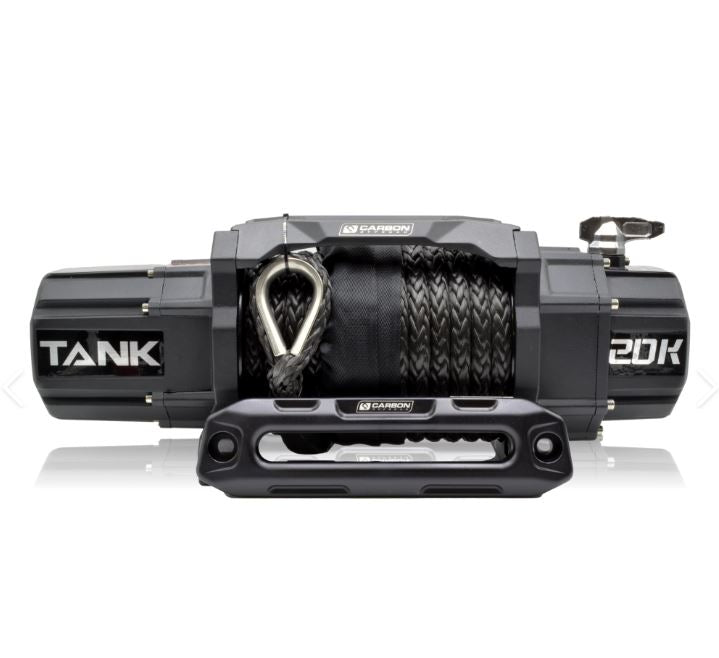

Carbon Winch TANK 20,000lb 12V Electric Winch – Heavy Duty Offroad Recovery

The Carbon Winch TANK 20,000lb is a true powerhouse in the Carbon Winch lineup, engineered for the heaviest recovery situations. Built tough but designed to be lighter than traditional steel winches, the Carbon Winch TANK delivers unmatched pulling power for American trucks, large SUVs, and 4x4s running both 12V and 24V systems.

Unlike cheap, bulky steel winches, the Carbon Winch TANK uses billet alloys, CNC machining, and precision cast housings to achieve maximum strength without excessive weight. The steel drum ensures durability under full load, while the cast alloy control box and fairlead give it a premium, rugged finish.

Waterproof Strength for Extreme Offroading

Every Carbon Winch TANK undergoes pressure testing to 20 PSI (equal to 14m underwater) before leaving the factory. Combined with a dual o-ring sealed gearbox, this winch is certified to IP69K waterproof standards—ensuring long-term reliability in mud, water, and harsh environments.

Engineered for Performance

Equipped with a 7.8HP series wound motor and an oversized 4-stage planetary gear train with a 440:1 ratio, the Carbon Winch TANK delivers smooth, consistent pulling power. The gear-train connected braking system prevents drum heat buildup, protecting your synthetic rope during heavy use.

Built for Versatility

With multiple mounting options, the compact alloy control box can be positioned over the drum, over the motor, or mounted remotely. The Carbon Winch TANK 20,000lb comes complete with synthetic rope, forged alloy hook, isolator switch, 2-in-1 wireless/wired remote, and all installation hardware—everything you need for a heavy-duty recovery setup.

Specifications

Rated pulling power: 20,000lb (9,072kg)
Motor: 7.8HP Series Wound, 12V/24V
Gear Train: 440:1, 4-stage planetary gearset
Rope: 21m x 14mm synthetic UHMWPE fibre
IP Rating: IP68 / IP69K sealed waterproof system
Weight (as fitted): 33.4kg
Warranty: Lifetime Geartrain / 5 Year Electrical

Designed for Australian and international offroad conditions, the Carbon Winch TANK 20,000lb is the ultimate choice for those who demand extreme pulling power, premium engineering, and bulletproof reliability.

👉 Upgrade your recovery setup with the Carbon Winch TANK 20,000lb—the strongest and most advanced Carbon Winch ever built.
