Complete Vehicle Designs

7 Way - Wide Body Battery Plate Kits with Busbar + Kit

7 Way - Wide Body Battery Plate Kits with Busbar + Kit

Regular price $57.95 AUD
Regular price Sale price $57.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Variant

WIDEBODY MIDI FUSE BATTERY PLATE
UPTO 7 JOINABLE MIDI FUSE HOLDERS
BUSBAR LINKED HOLDERS

CNC Laser Cut & Powder Coated

This suits new High Body 70 Series Landcruiser


Manufactured in Australia by Complete Vehicle Designs


FEATURES:

Joinable Midi Fuse Holders are ideal 12-32v use and fit bolt down Midi fuses with 30mm bolt spacing.

Includes a Busbar linking all Midi Fuses

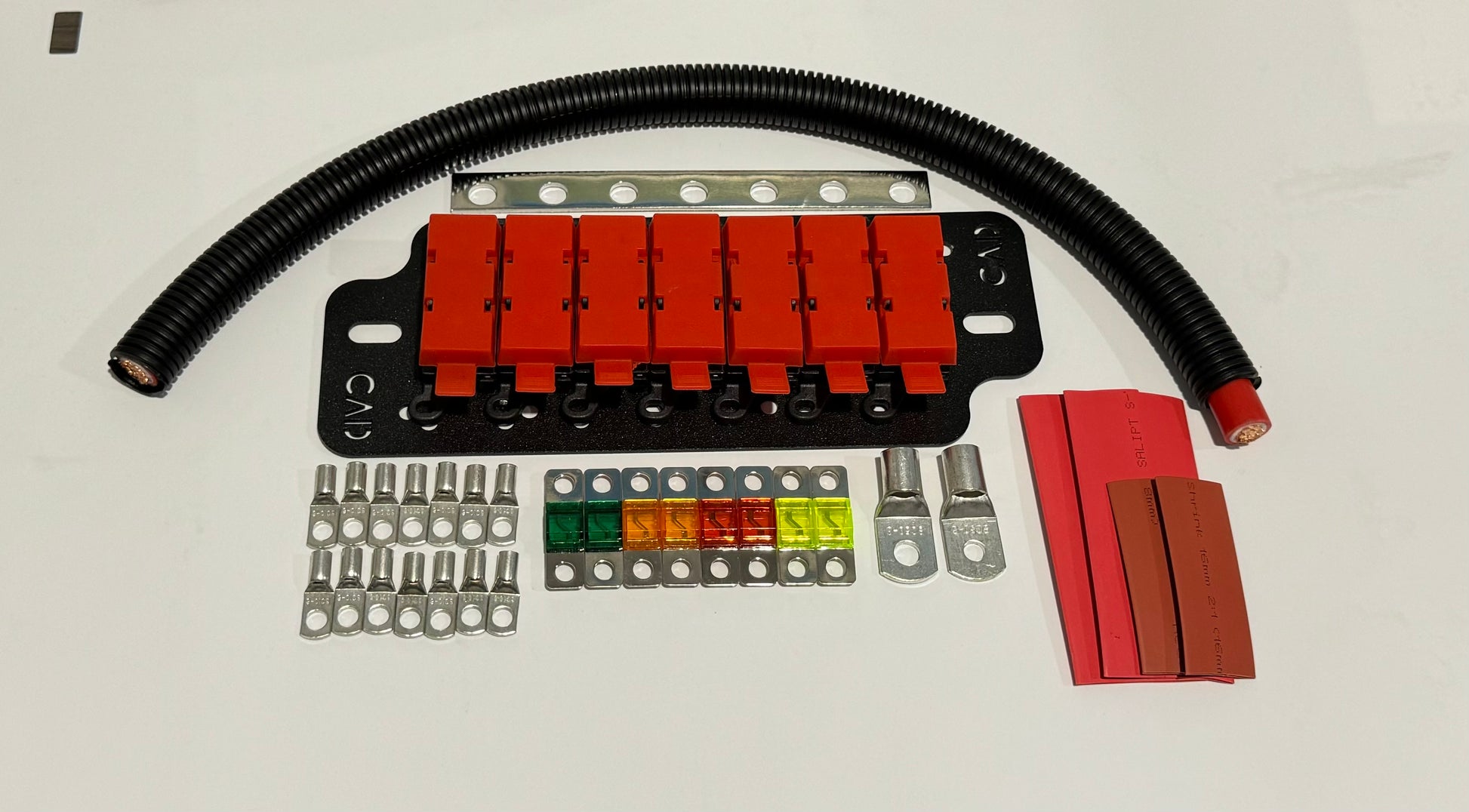

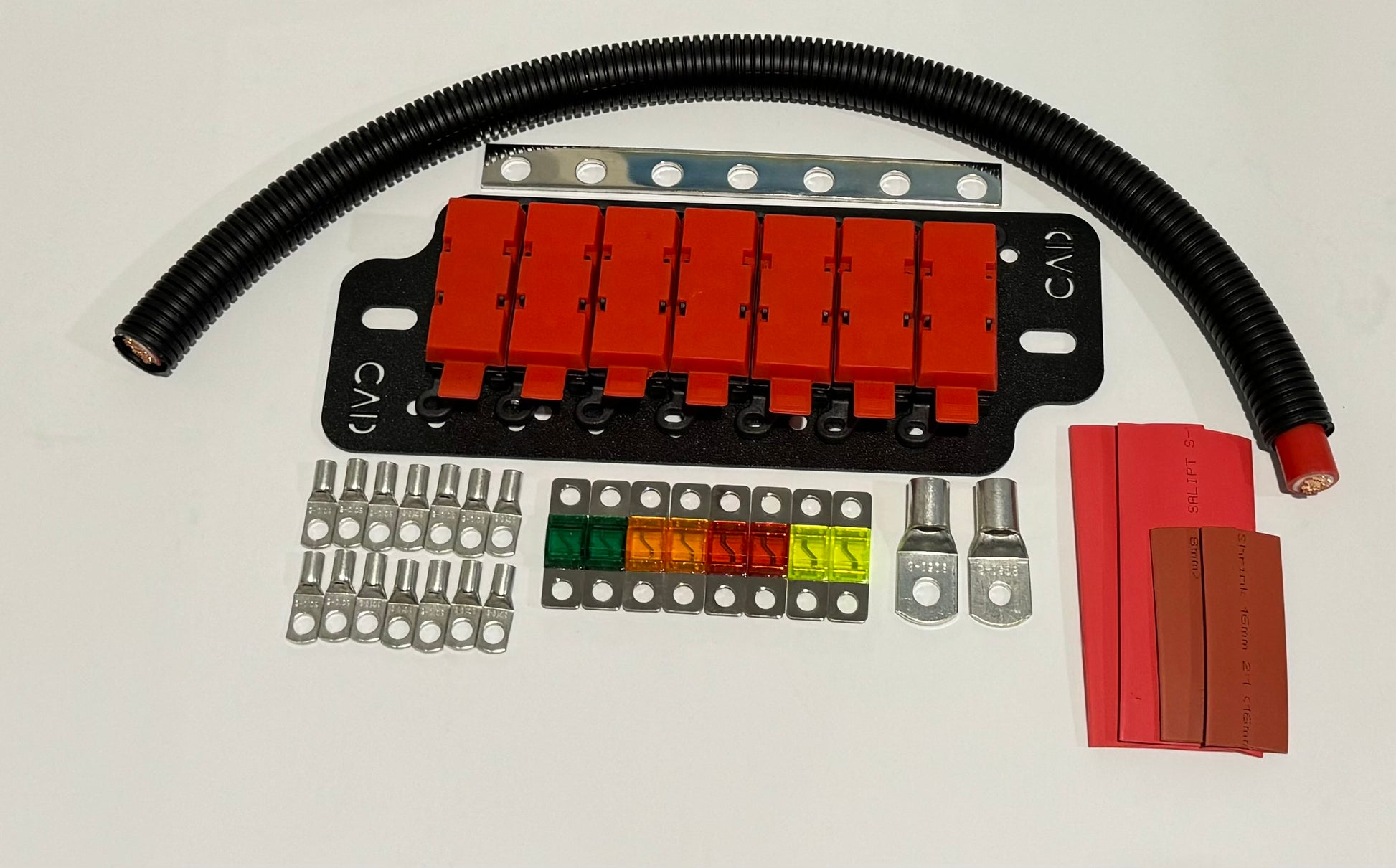

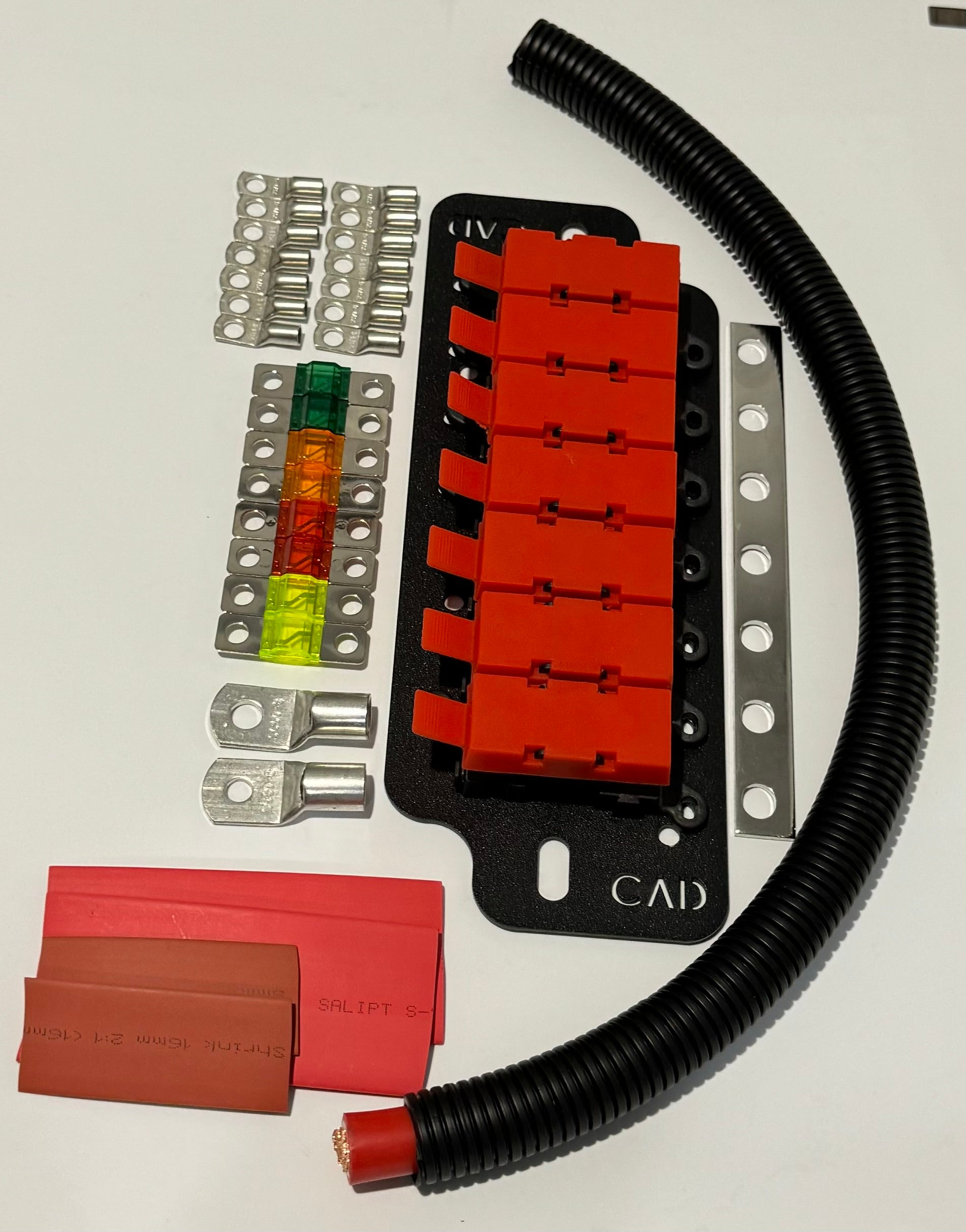

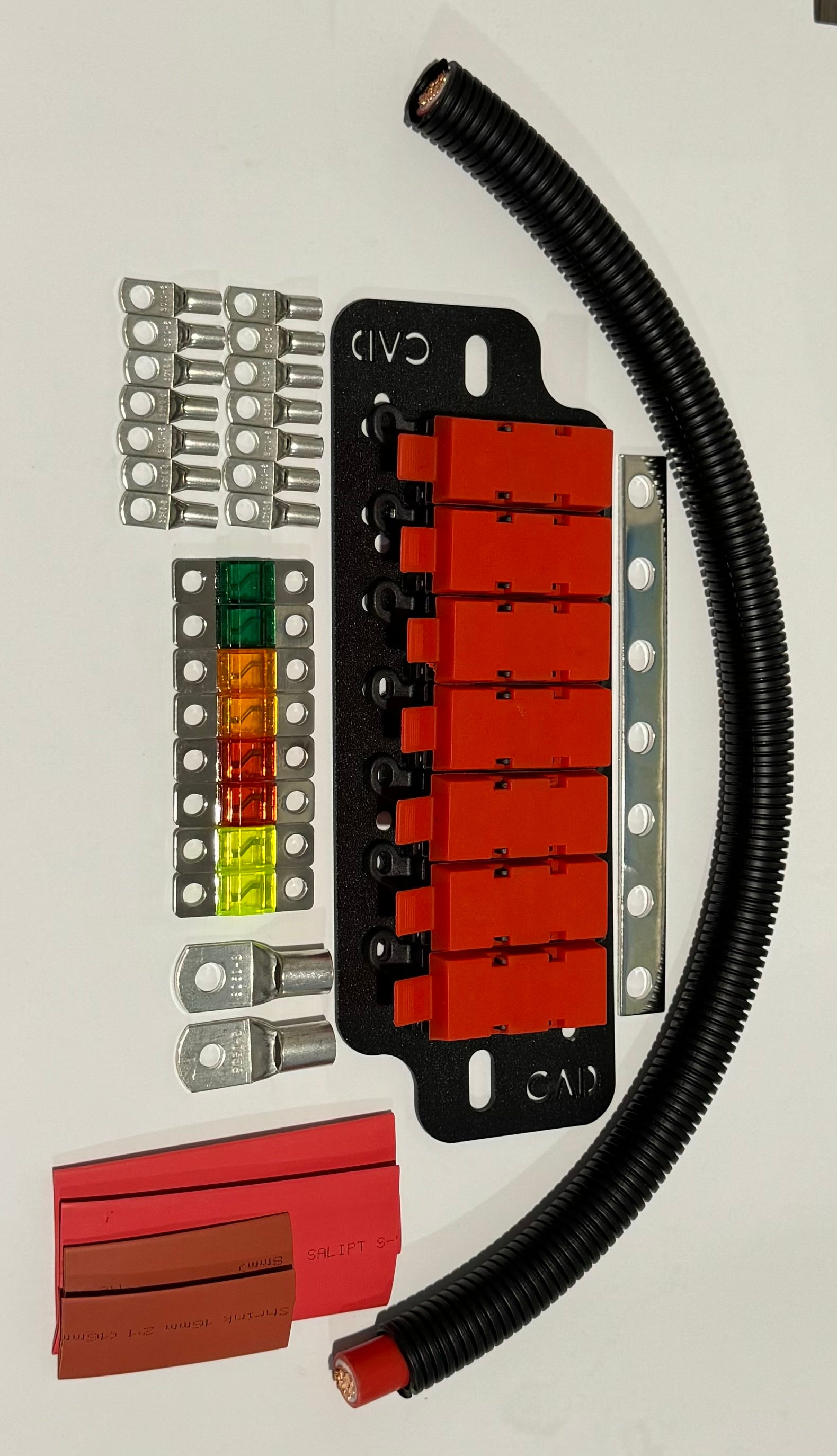

Optional Kits Below Include in this Sale:

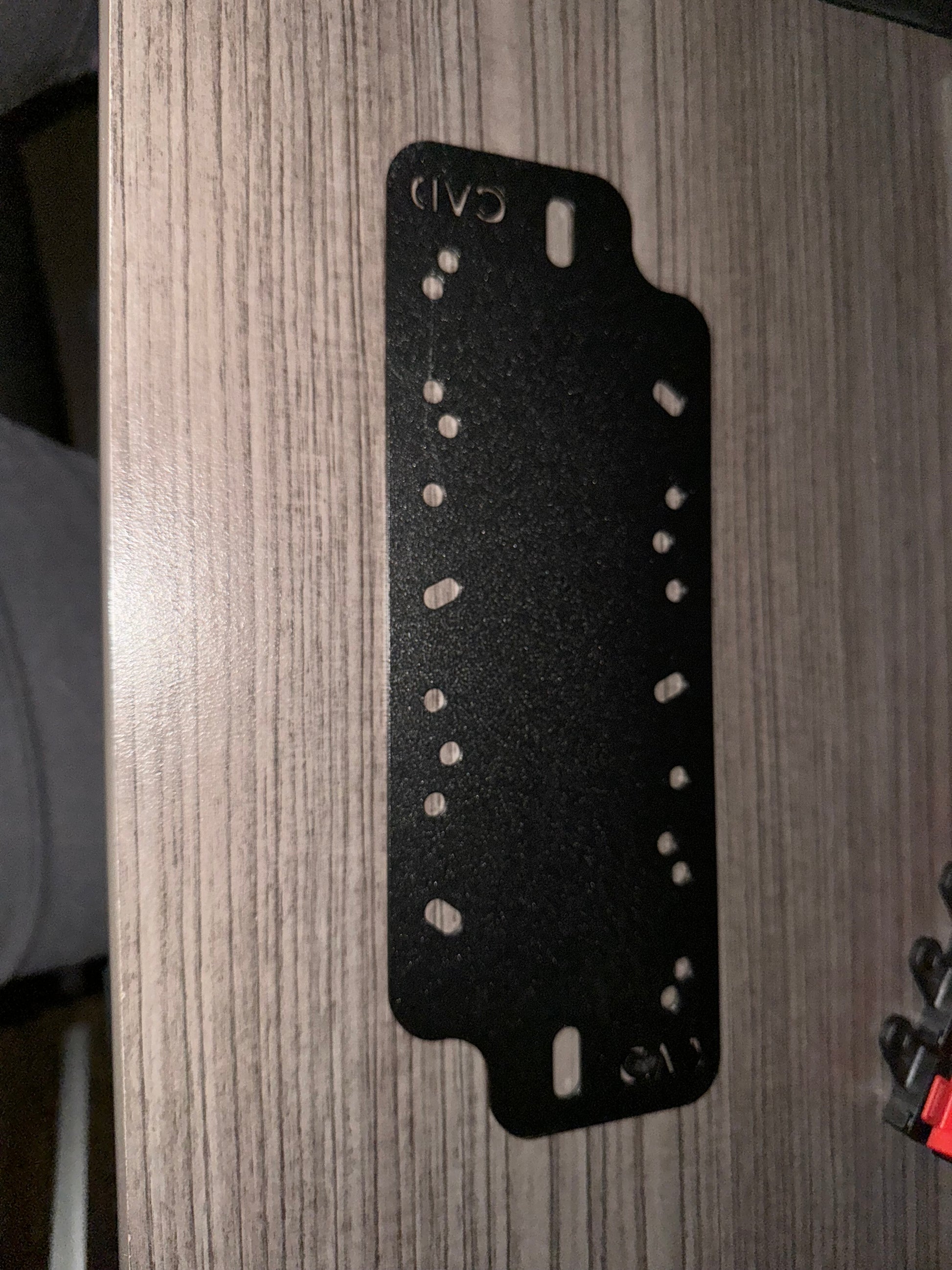

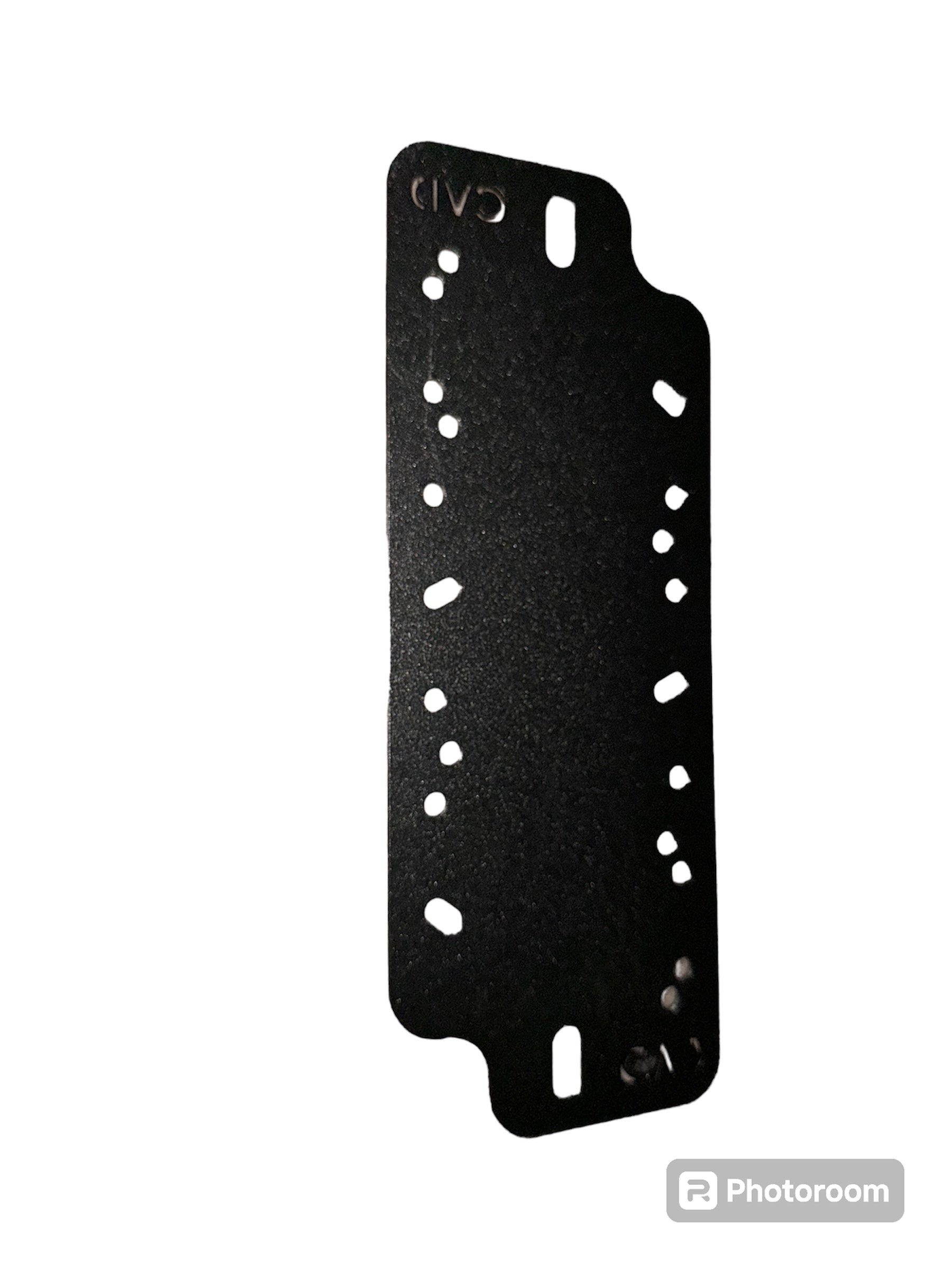

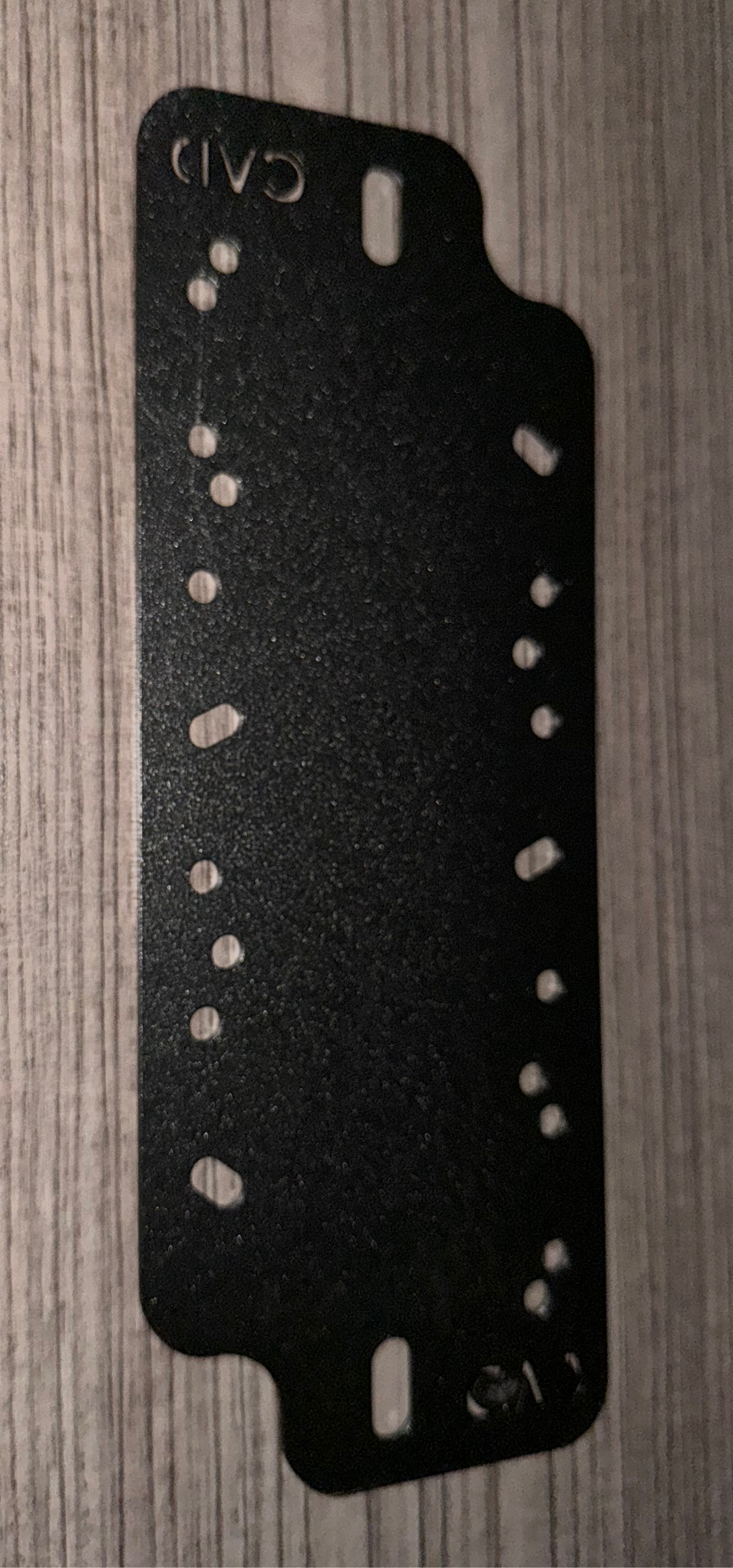

1 x Powder Coated Black Widebody Mounting Plate

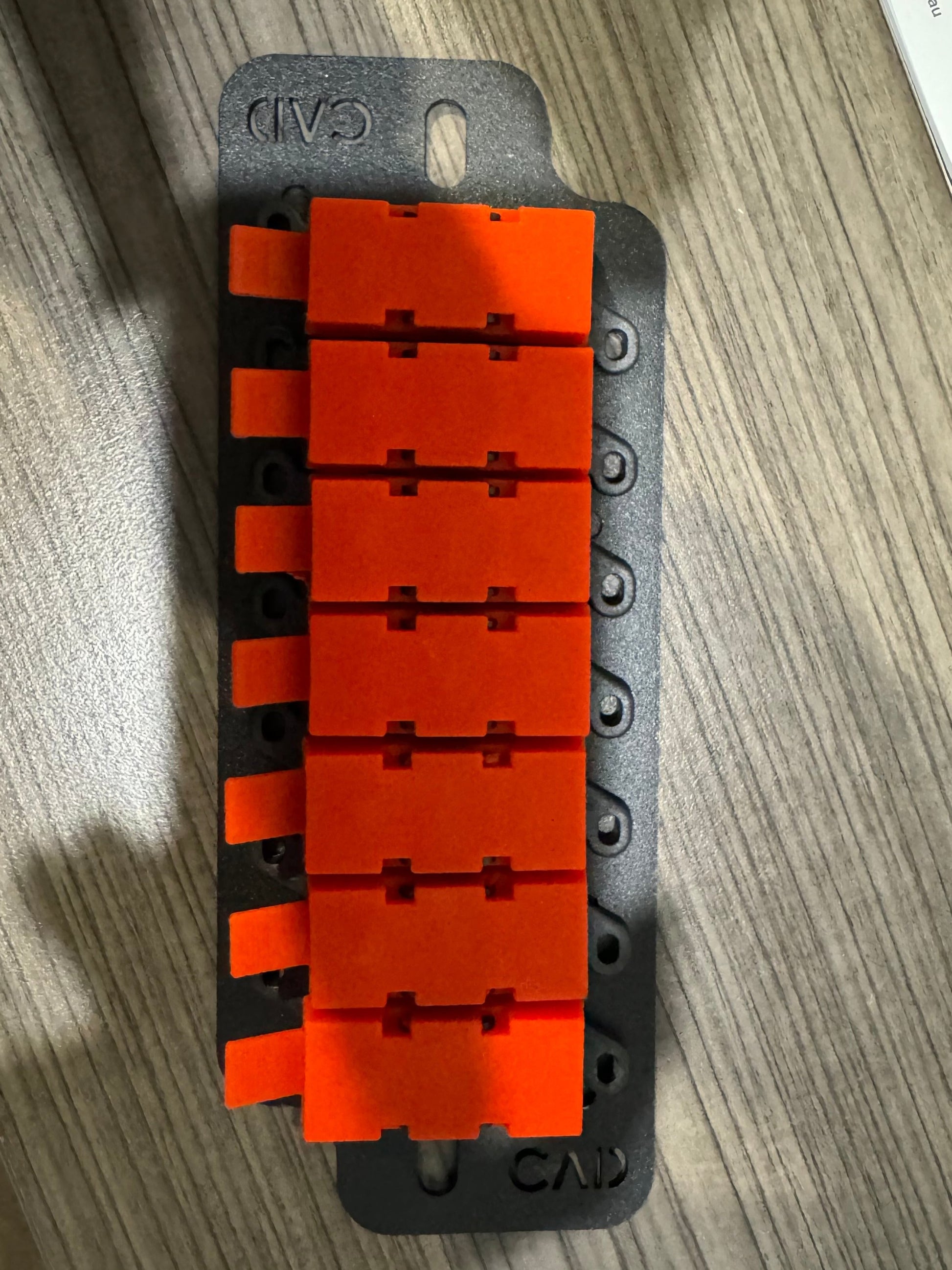

7 x Joinable Midi Fuse Holders
1 x 7 way Busbar
14 x M5x12mm Phillips Head with Nylock Nuts
8 x Midi Fuses (2 x 30A, 2 x 40A & 2 x 50A, 2 x 60A supplied) unless otherwise discussed.
14 x 10-6 Tinned Copper Lugs

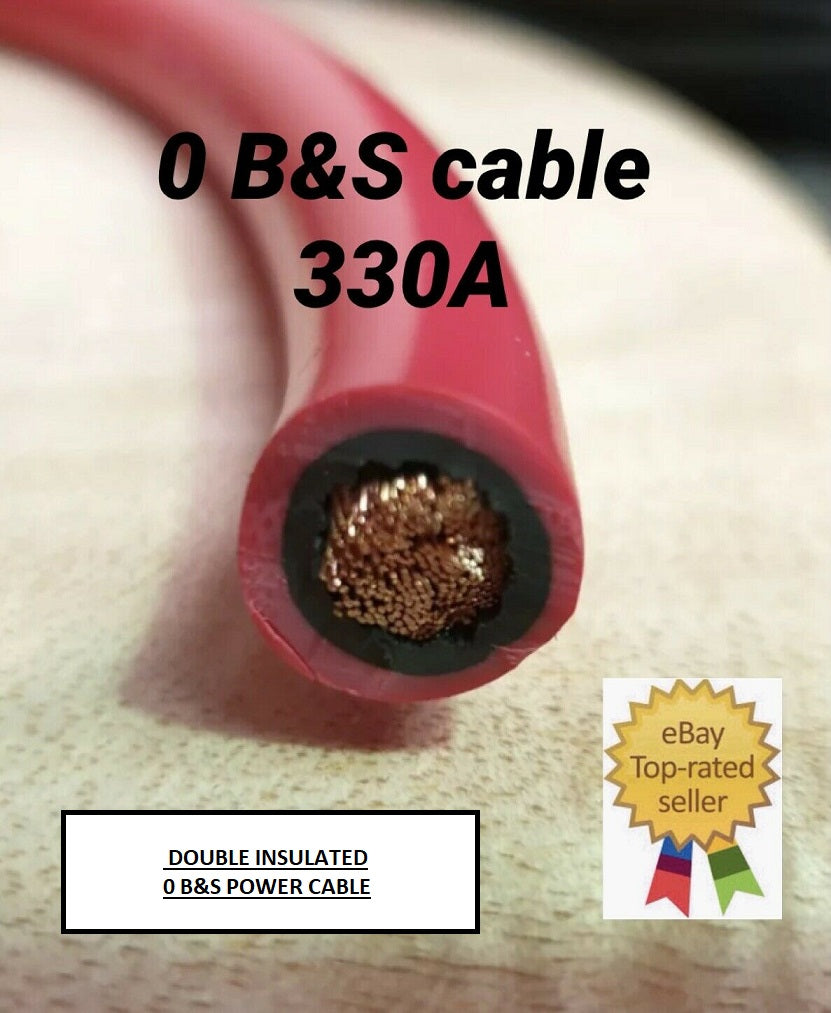

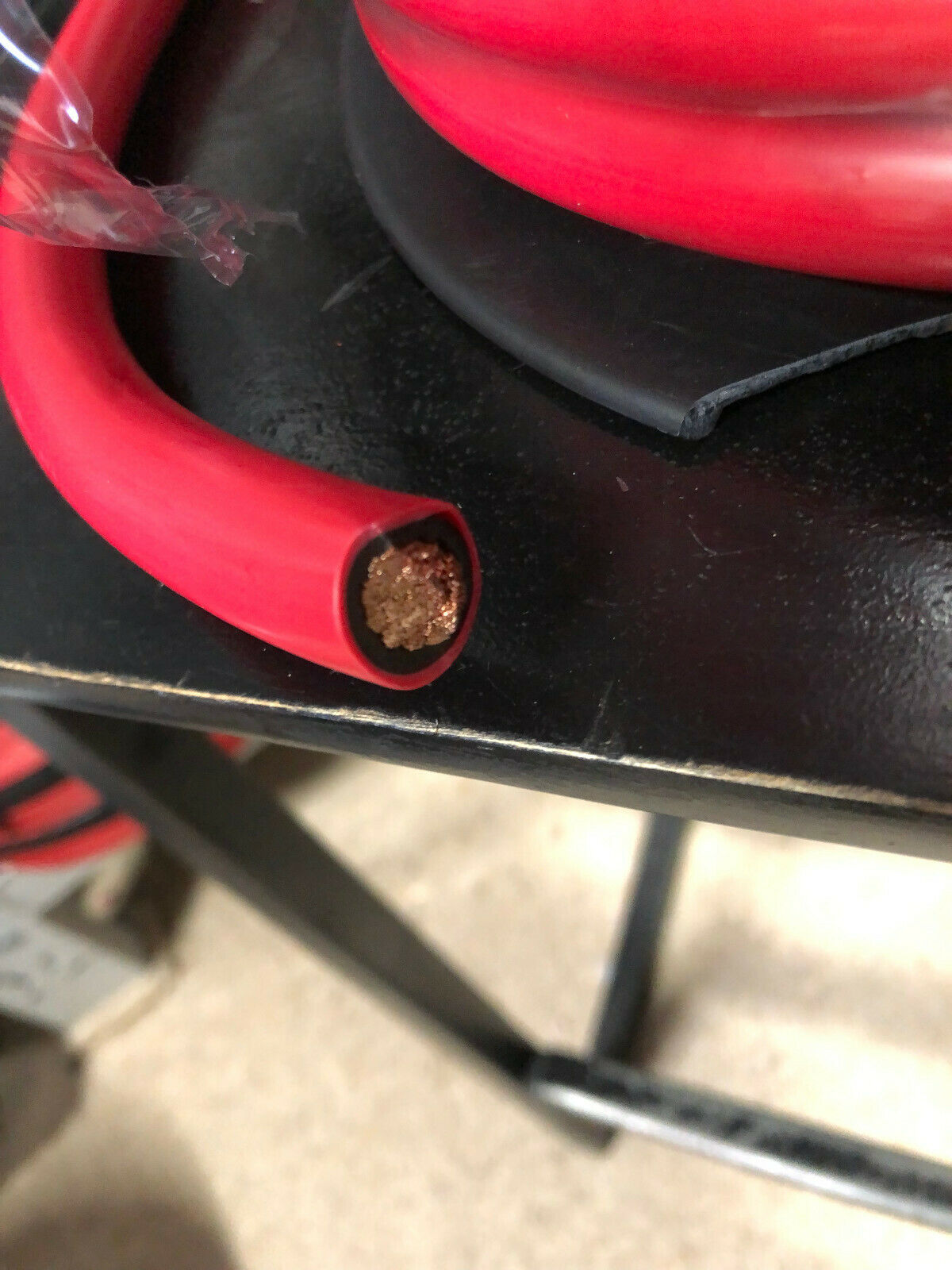

1 x 500mm Long 50mm Double Insulated Battery Cable 330A
1 x 500mm Corrugated Tubing
1 x 50-6 Lug
1 x 50-8 Lug
1 x 255mm upright rod

Mounting Bolts
2 x 5/16 Nuts & 2 x 5/16 Nylock Nuts + 2 washers
2 x 1/4 Nuts & 2 x 1/4 Nylock Nuts + 2 Washers



* Plate will mount to most aftermarket battery brackets suited to N70 or similar size and can also be fitted to Control Panels, Canopies etc...
** Upright battery tie down rods not included and are for demonstration purposes only**

Description:

Material: 2mm Plate Steel
Colour: Black
Paint Type: Powder Coated
Description: CNC Laser Cut
Suitable for: upto 7 Joinable Midi Fuse Holders
Battery Type: 12V
Battery Dimensions : 243mm
(Will suit smaller batteries, however the above dimensions are the min-max adjustment in the plate)

This suits new High Body 70 Series Landcruisers
