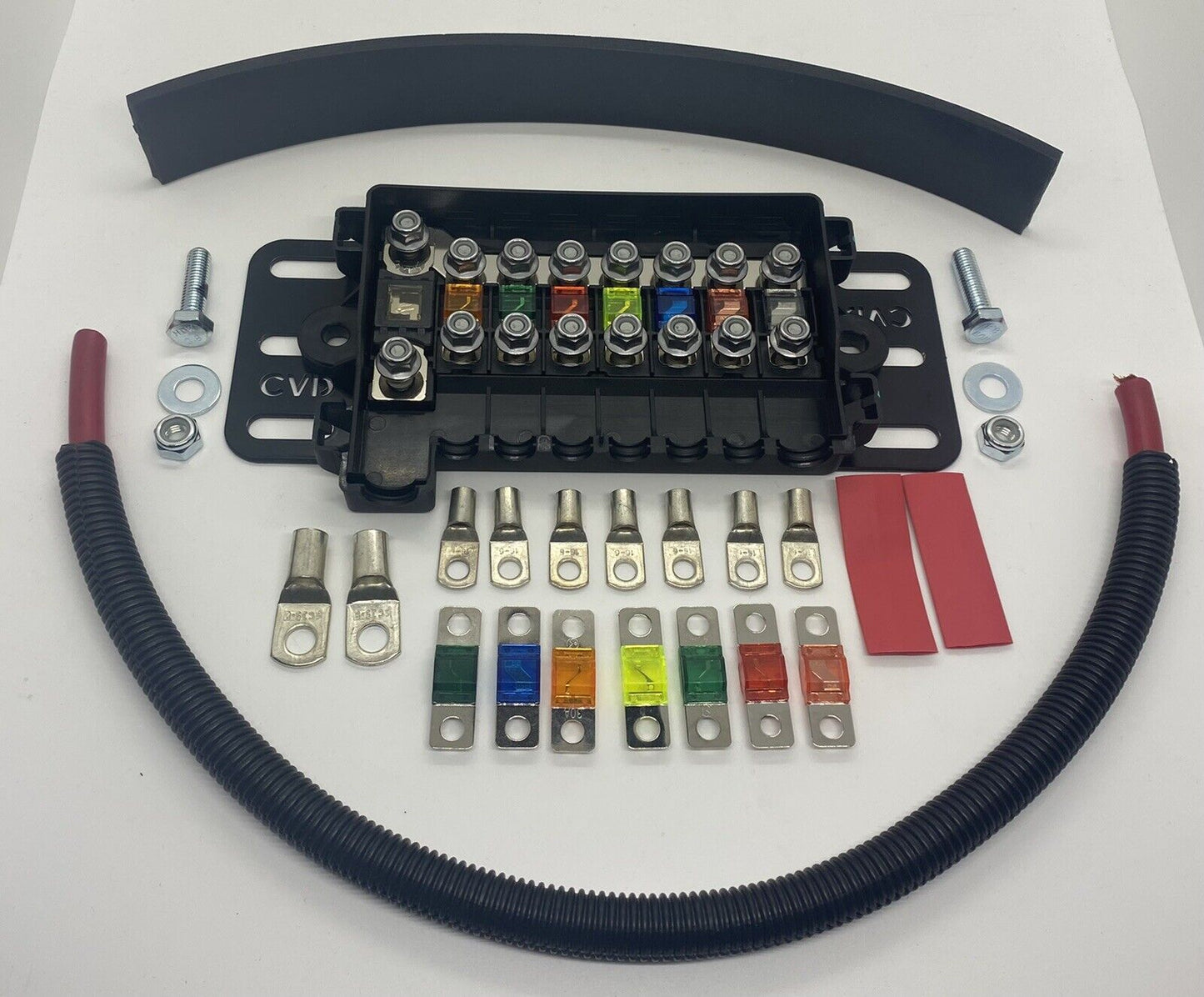

• A 7 way midi fuse holder with battery mounting plate, including various fuses, cable lugs, a power cable, and heat shrink tubing, all laid out on a white background.

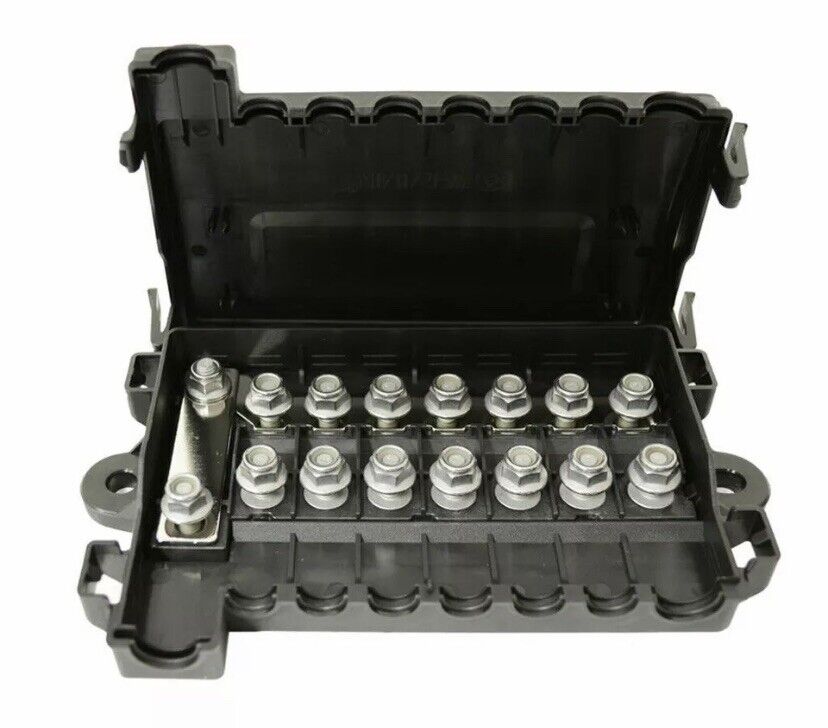

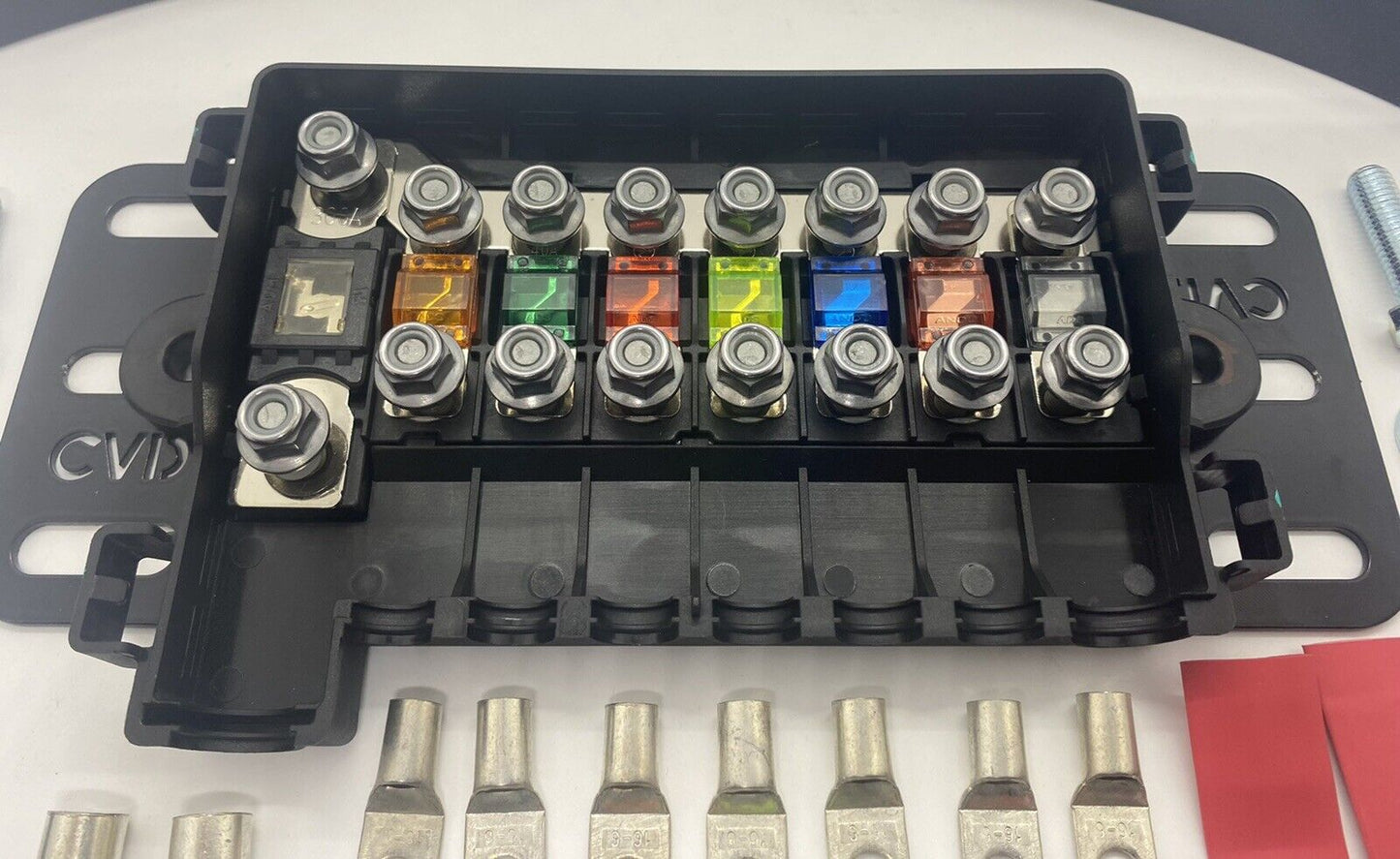

  • 7 Way Midi Fuse Box open top with fuses
  • 7 Way Midi Fuse Kit in Engine Bay

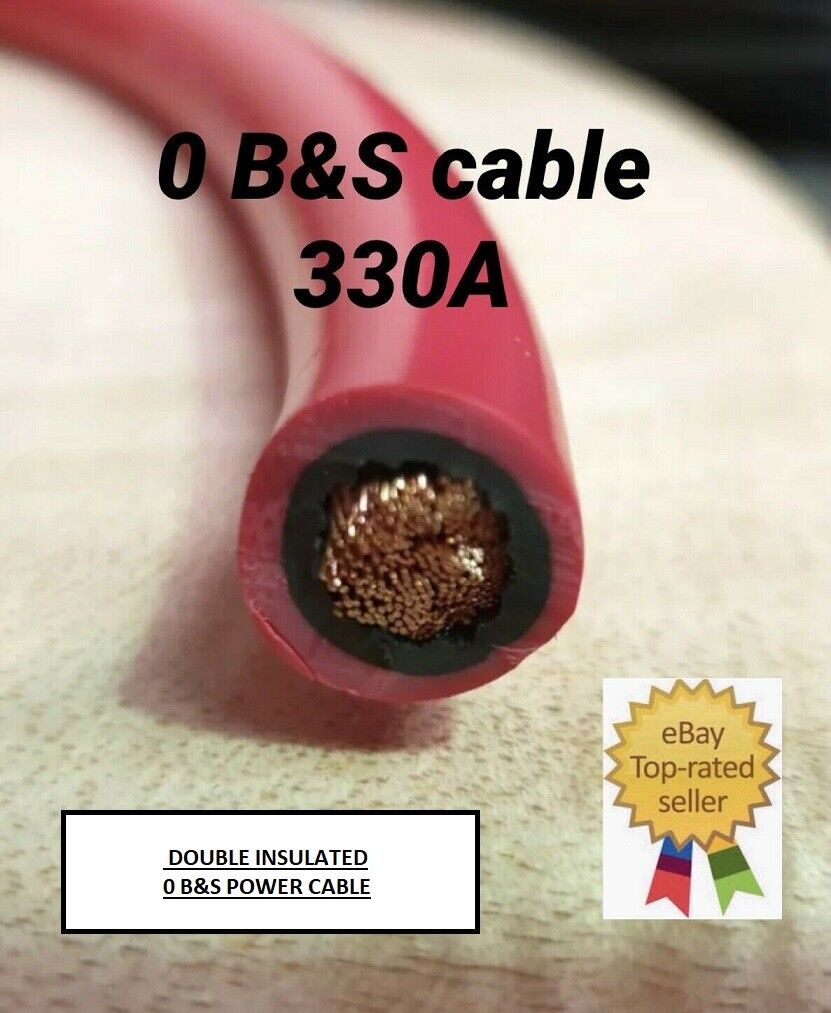

  • 0 B&S Red Double Insulated Power Cable 330A Rating

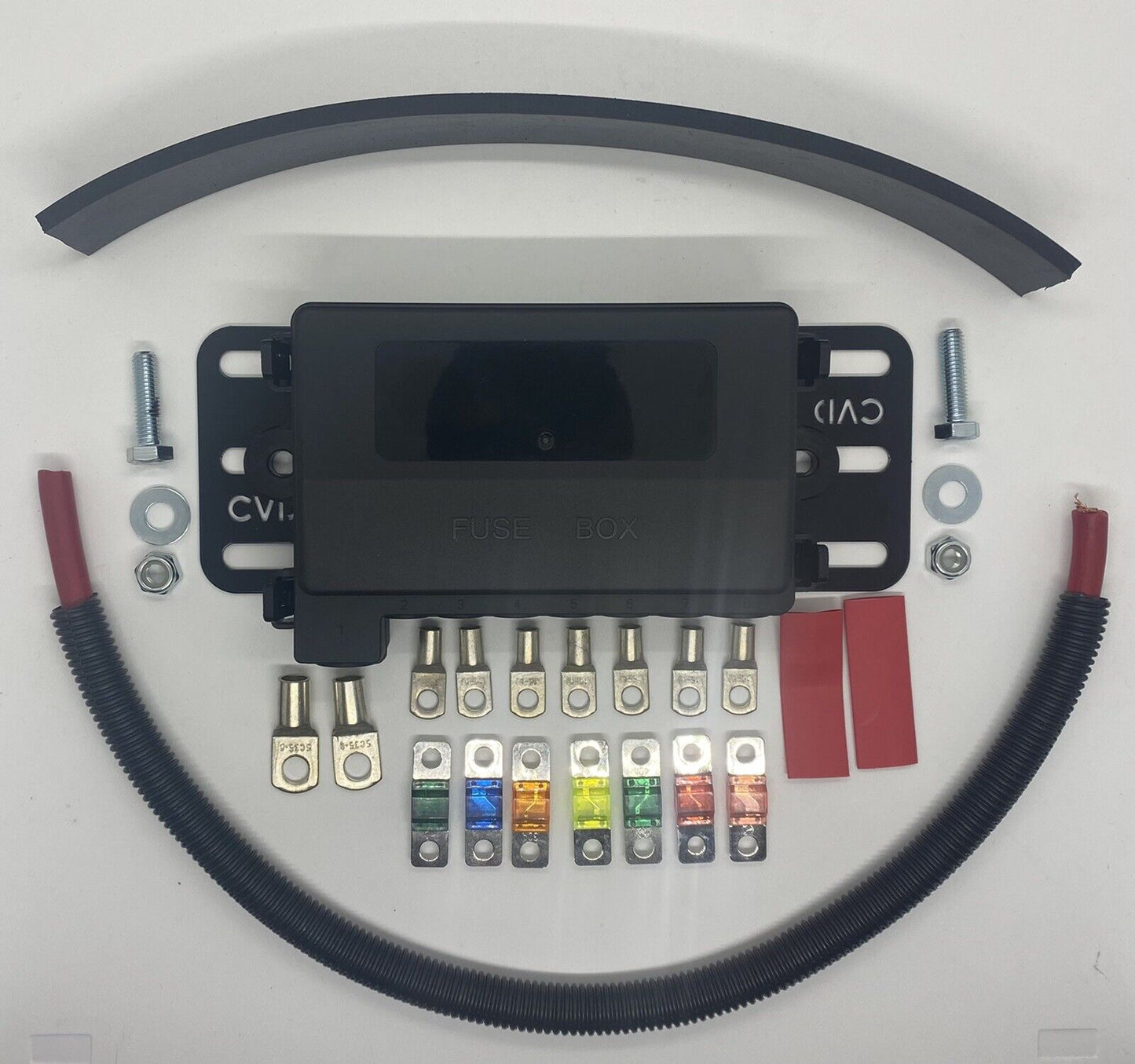

  • 7 Way Midi Fuse Box with Battery Mounting Plate and accessories
  • 7 Way Midi Fuse Box with Battery Mounting Plate and accessories
  • 7 Way Midi Fuse Box with Battery Mounting Plate and accessories in engine bay
  • 7 Way Midi Fuse Box

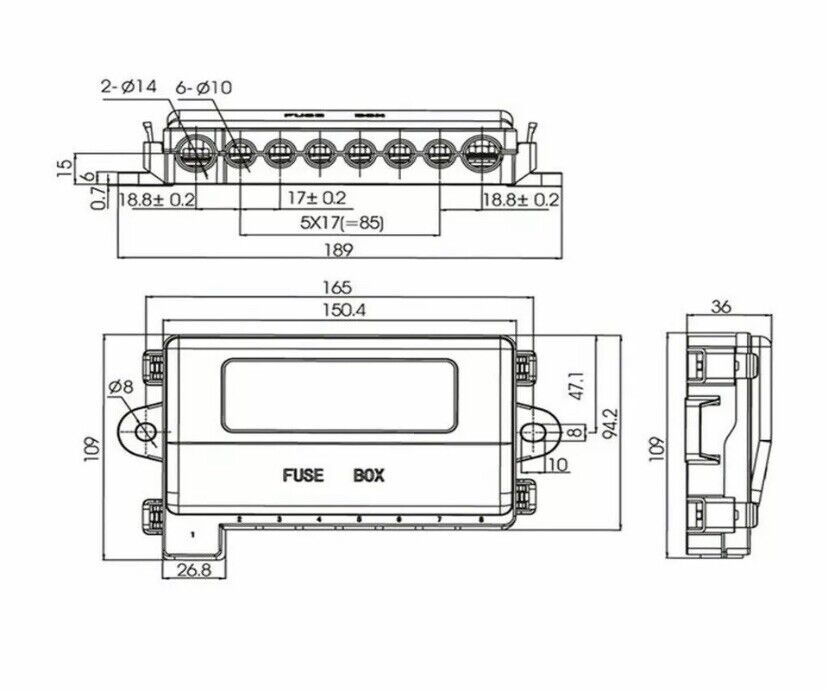

  • Midi Fuse Box diagram
  • 7 Way Midi Fuse Box with Battery Mounting Plate and accessories
  • Midi Fuse mounting Plate
  • 7 Way Midi Fuse Box with Battery Mounting Plate and accessories in engine bay
1 12

Complete Vehicle Designs

7 Way - Midi Fuse Holder + Battery Mounting Plate

7 Way - Midi Fuse Holder + Battery Mounting Plate

$232.95 AUD
$232.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

7-Way Inbuilt MIDI Fuse Holder Kit with Battery Mounting Plate

Product Description

Upgrade your electrical setup with this 7-Way Inbuilt MIDI Fuse Holder Kit, complete with a heavy-duty battery mounting plate and everything you need for a clean, reliable installation. Perfect for 12V and 24V applications, this kit is engineered for durability, conductivity, and multiuse combinations.

The included 300A Mega Fuse (ANM) provides robust protection for your main power feed, while the 7 MIDI fuses (ANS) allow for customizable outputs ranging from 20A–200A, making it versatile for powering multiple accessories. Constructed from high-quality plastic and metal with a powder-coated battery plate, this kit is designed to withstand harsh conditions and provide long-lasting performance.

With easy installation and a compact design, this MIDI fuse box kit is ideal for 4WD setups, caravans, boats, and custom electrical projects.

Specifications

  • Material: Plastic & Metal

  • Dimensions: 167mm x 105mm x 35mm

  • Input Fuse Type: MEGA Fuse (ANM) – 300A included

  • Output Fuse Type: MIDI Fuse (ANS) – 7 slots (20A–200A options)

  • Fuse Voltage: 32V DC

  • Holder Voltage: DC 58V–32V

  • Durable powder-coated battery plate with CNC precision finish

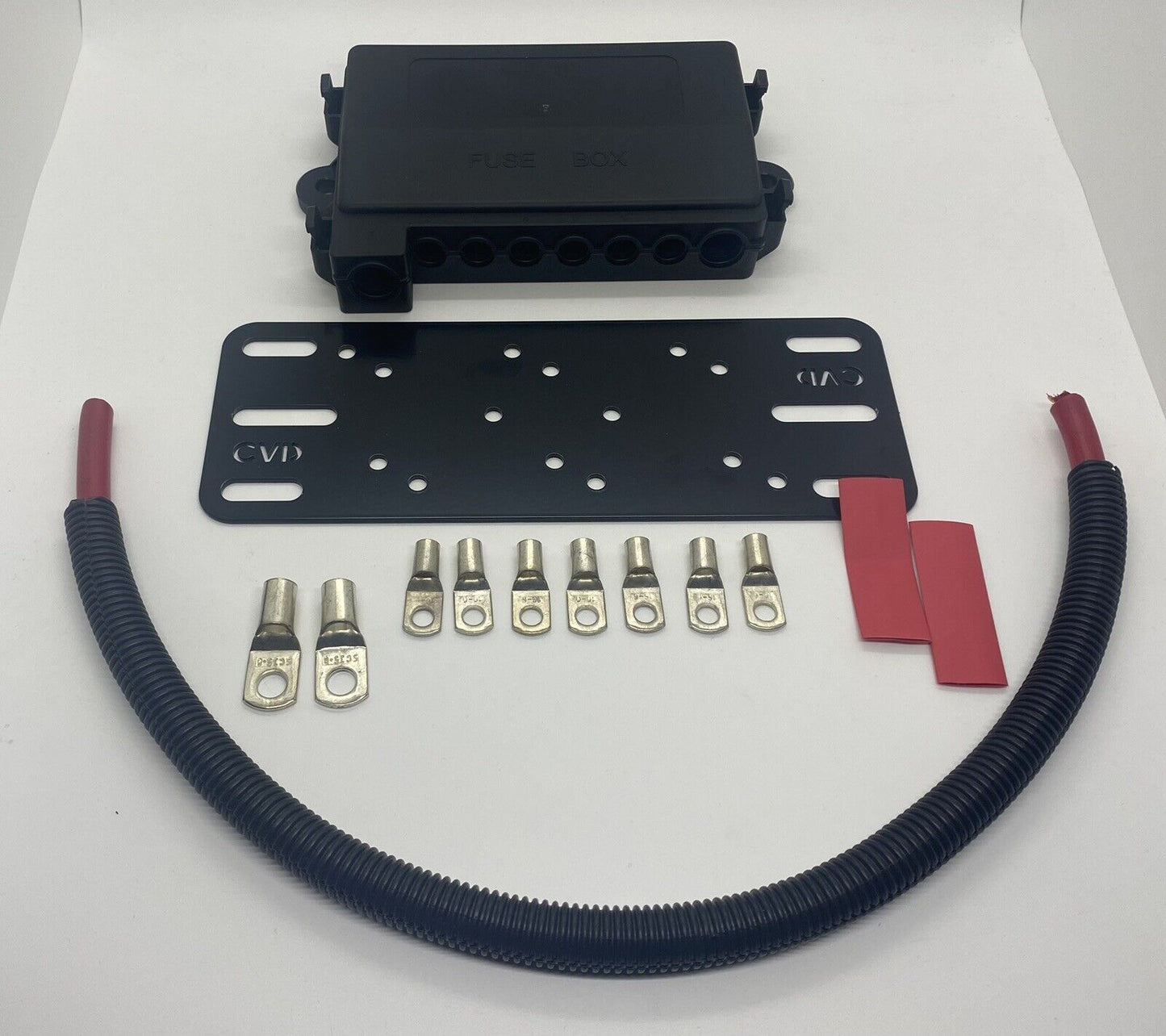

Package Includes

  • 1 x 2mm CNC Multi-Fit Powder Coated Battery Plate with Mounting Bolts & Rubber Underlay

  • 1 x 7-Way MIDI Fuse Box Holder

  • 1 x 300A Mega Fuse (ANM)

  • 7 x MIDI Fuses (Standard Supply: 4 x 50A & 3 x 40A – custom options available 20A–200A)

  • 2 x 50-8 Cable Lugs (Positive Connection from Battery to MIDI Fuse Holder)

  • 7 x 10-6 Cable Lugs (Suits 8 B&S Cable)

  • 1 x 48cm Double Insulated 0 B&S Power Cable rated to 330A

  • 1 x 48cm Corrugated Split Tubing

  • 2 x 5cm Heat Shrink (to suit corrugated tubing on power cable)

Key Benefits

  • Complete MIDI fuse holder kit with battery plate

  • Supports up to 7 MIDI fuse connections (20A–200A)

  • Includes 300A Mega Fuse for main power protection

  • Durable powder-coated plate with easy installation design

  • Ideal for 4x4, caravans, marine, and custom DC setups
