UNIVERSAL 6 WAY MIDI FUSE HOLDER WITH OFFSET BATTERY PLATE MOUNTS + KIT BUSBAR LINKED HOLDERS
CNC Laser Cut & Powder Coated
Manufactured in Australia by Complete Vehicle Designs
FEATURES:
Offset Mounting Positions make this bracket even more universal. Some vehicles come with offset mounts such as: Colorado, Nissan Navara, Prado 150 Series, 2020+ Hilux & Isuzu D-Max are a few.
Joinable Midi Fuse Holders are ideal 12-32v use and fit bolt down Midi fuses with 30mm bolt spacing.
Includes a Busbar linking all 6 Midi Fuses (5 Midi Fuses Holders when using the M8 Front Post Unit - recommended for consistent Amperage over 200A)

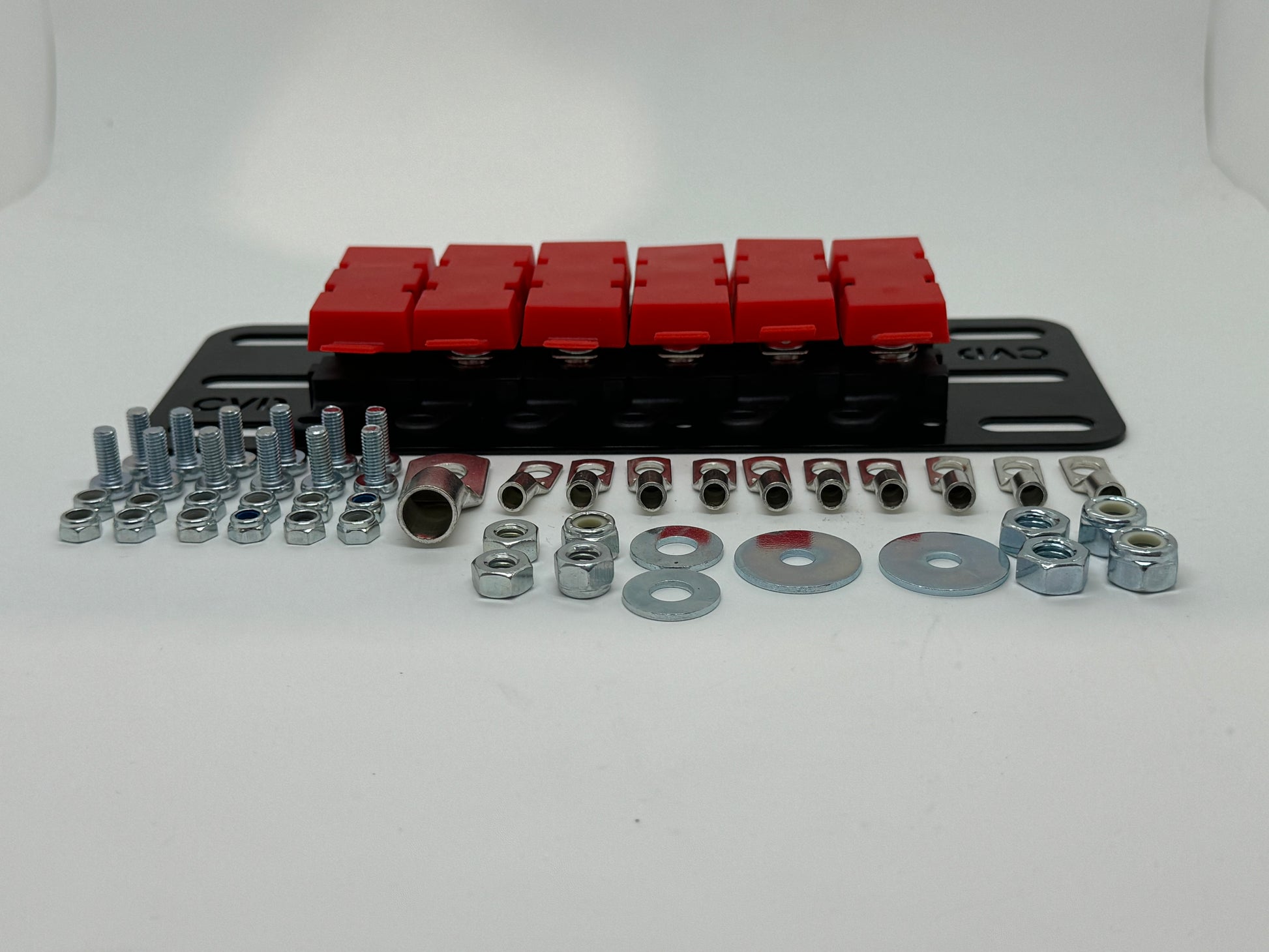

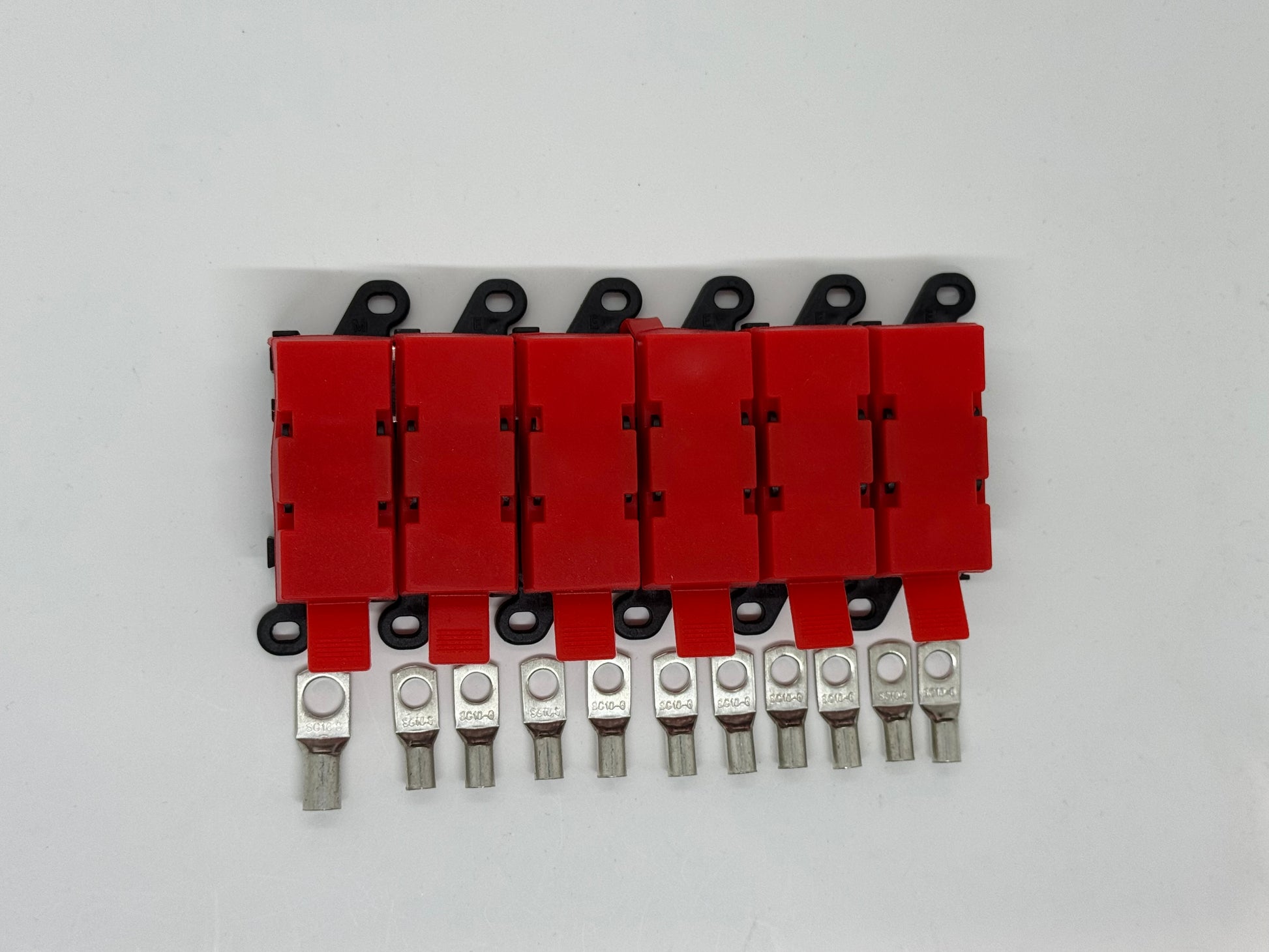

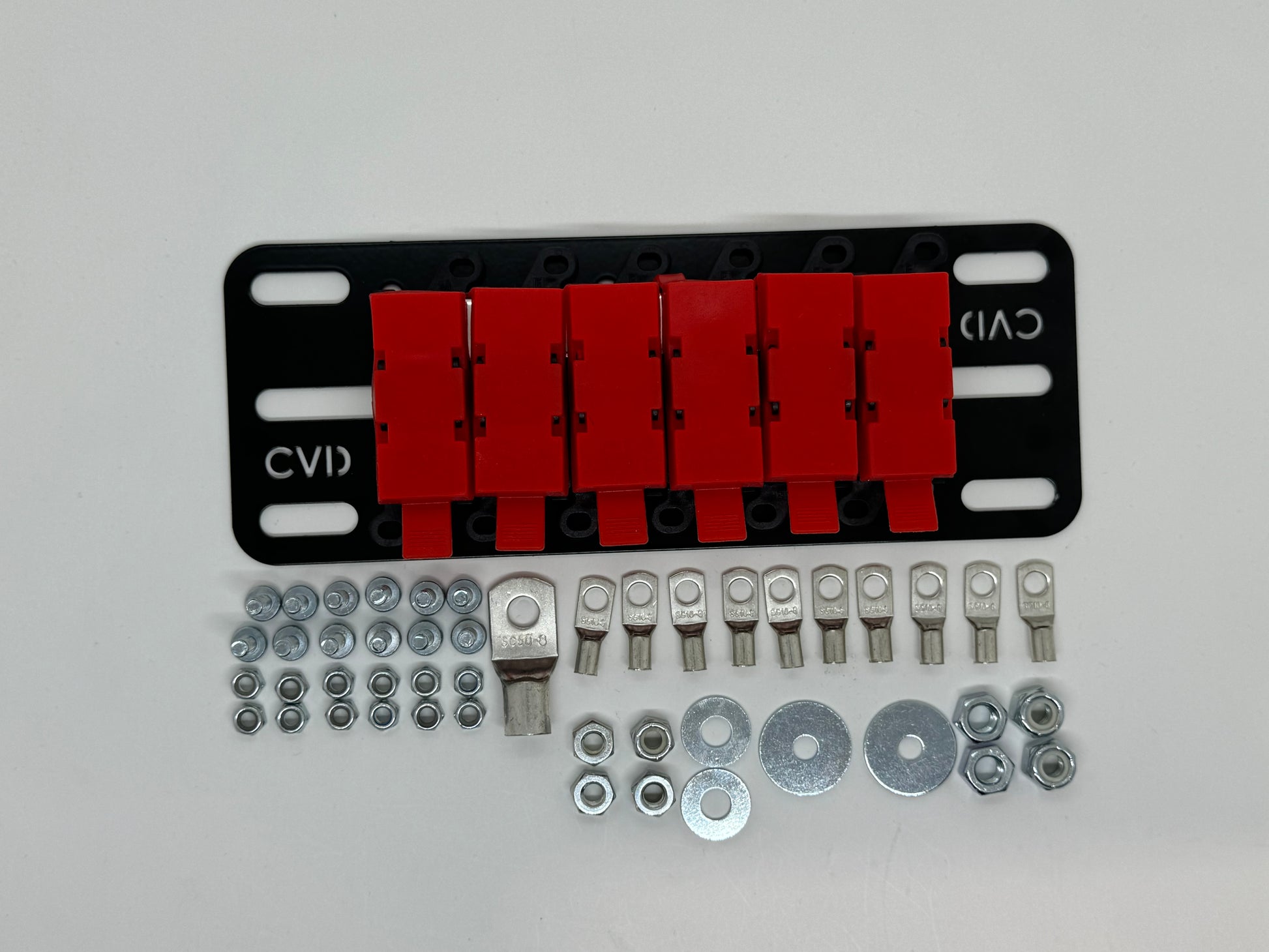

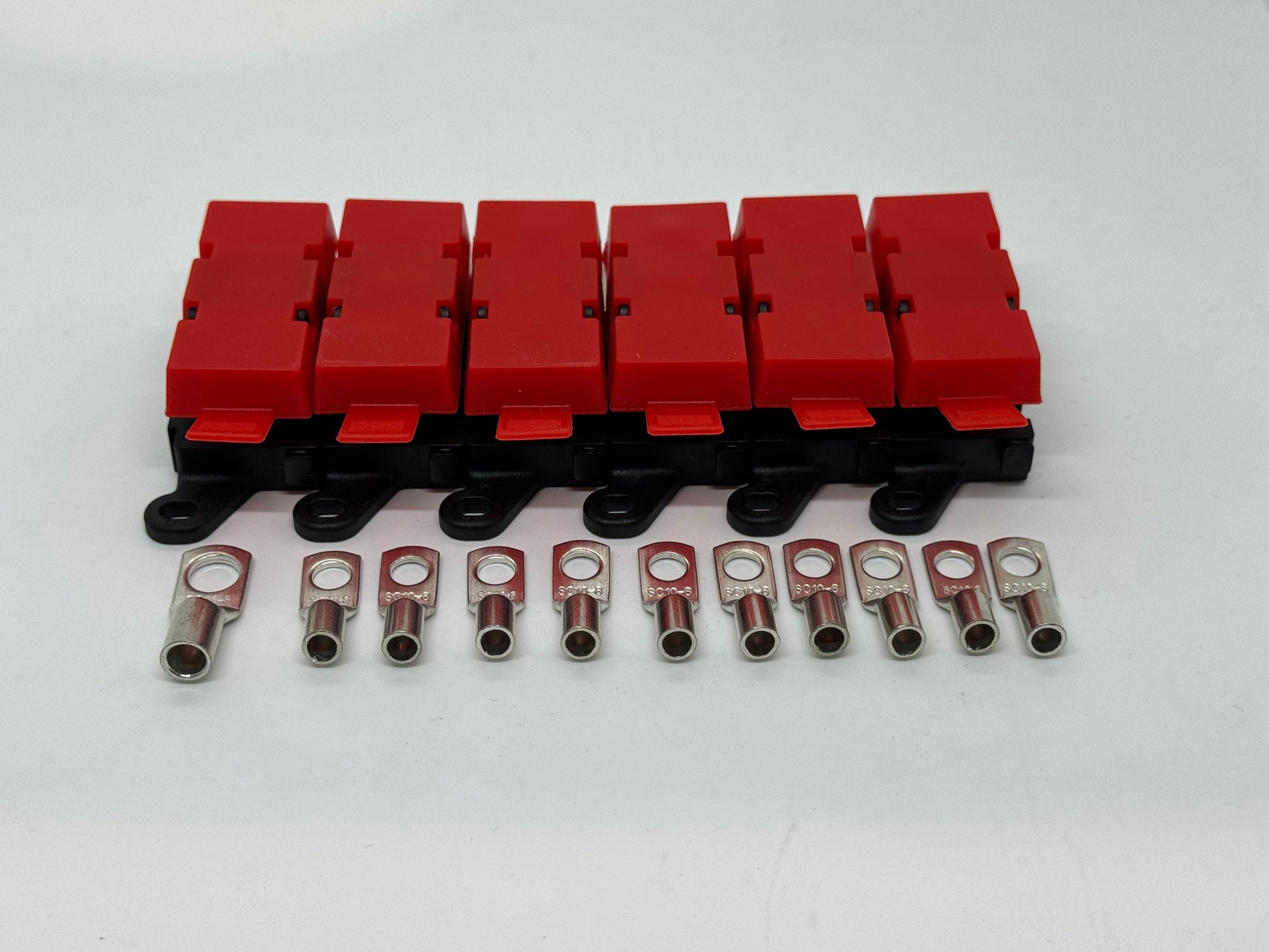

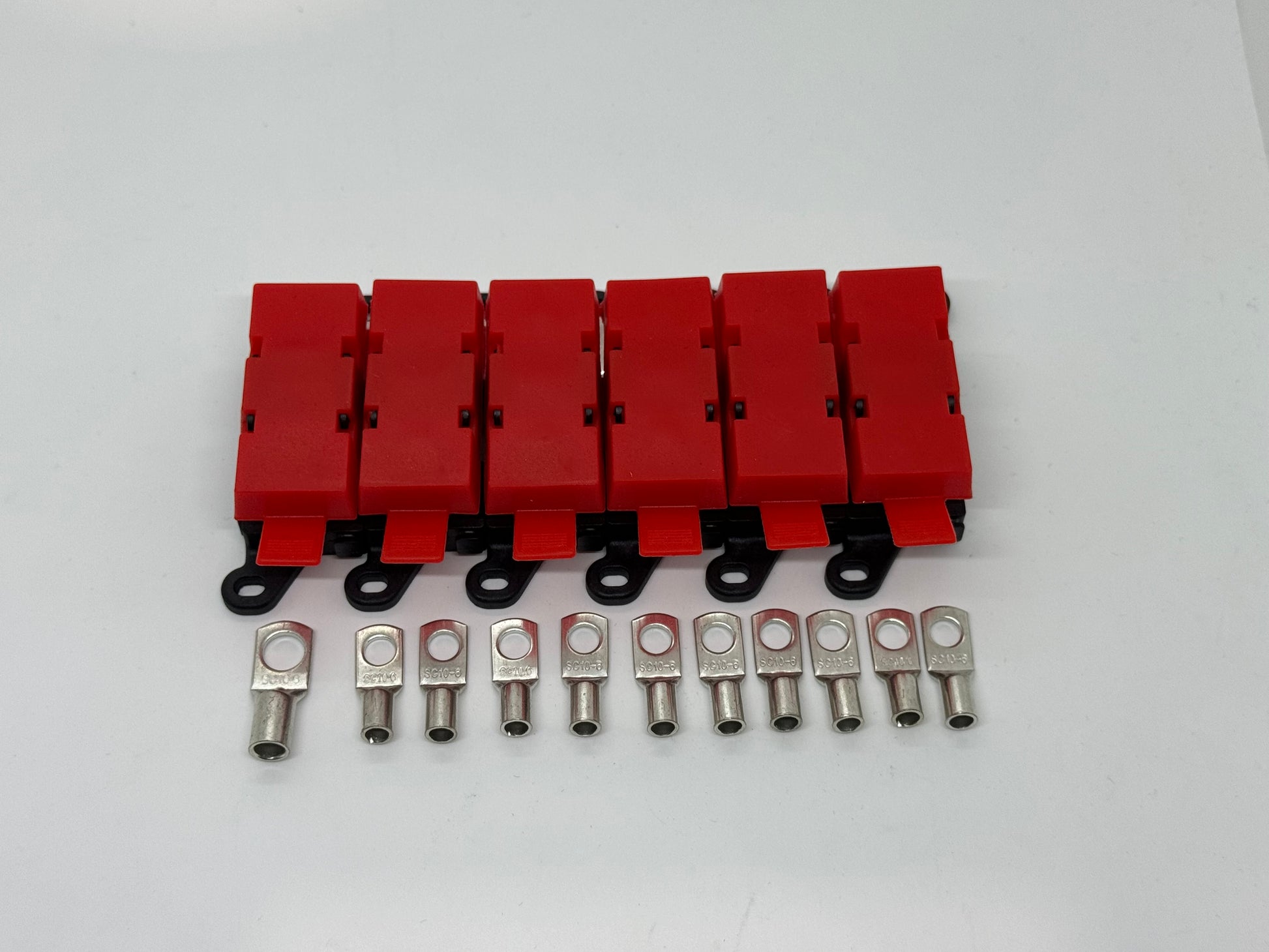

Included in this Sale: 1 x Powder Coated Black Offset MK-III Mounting Plate 6 x Joinable Midi Fuse Holders or 5 Joinable Midi Fuse Holders + 1 M8 Post Holder 12 x M5x12mm Phillips Head with Nylock Nuts 8 x Midi Fuses (2 x 30A, 2 x 40A & 2 x 50A, 2 x 60A supplied) unless otherwise discussed. 12 x 10-6 Tinned Copper Lugs
Mounting Bolts 2 x 5/16 Nuts & 2 x 5/16 Nylock Nuts + 2 washers 2 x 1/4 Nuts & 2 x 1/4 Nylock Nuts + 2 Washers
* Plate will mount to most aftermarket battery brackets suited to N70 or similar size and can also be fitted to Control Panels, Canopies etc... ** Upright battery tie down rods not included and are for demonstration purposes only**
Description:
Material: 2mm Plate Steel Colour: Black Paint Type: Powder Coated Description: CNC Laser Cut Suitable for: 3 x Double Midi Fuse Holders Battery Type: 12V Battery Dimensions : 175-187mm (wide) (Will suit smaller batteries, however the above dimensions are the min-max adjustment in the plate)

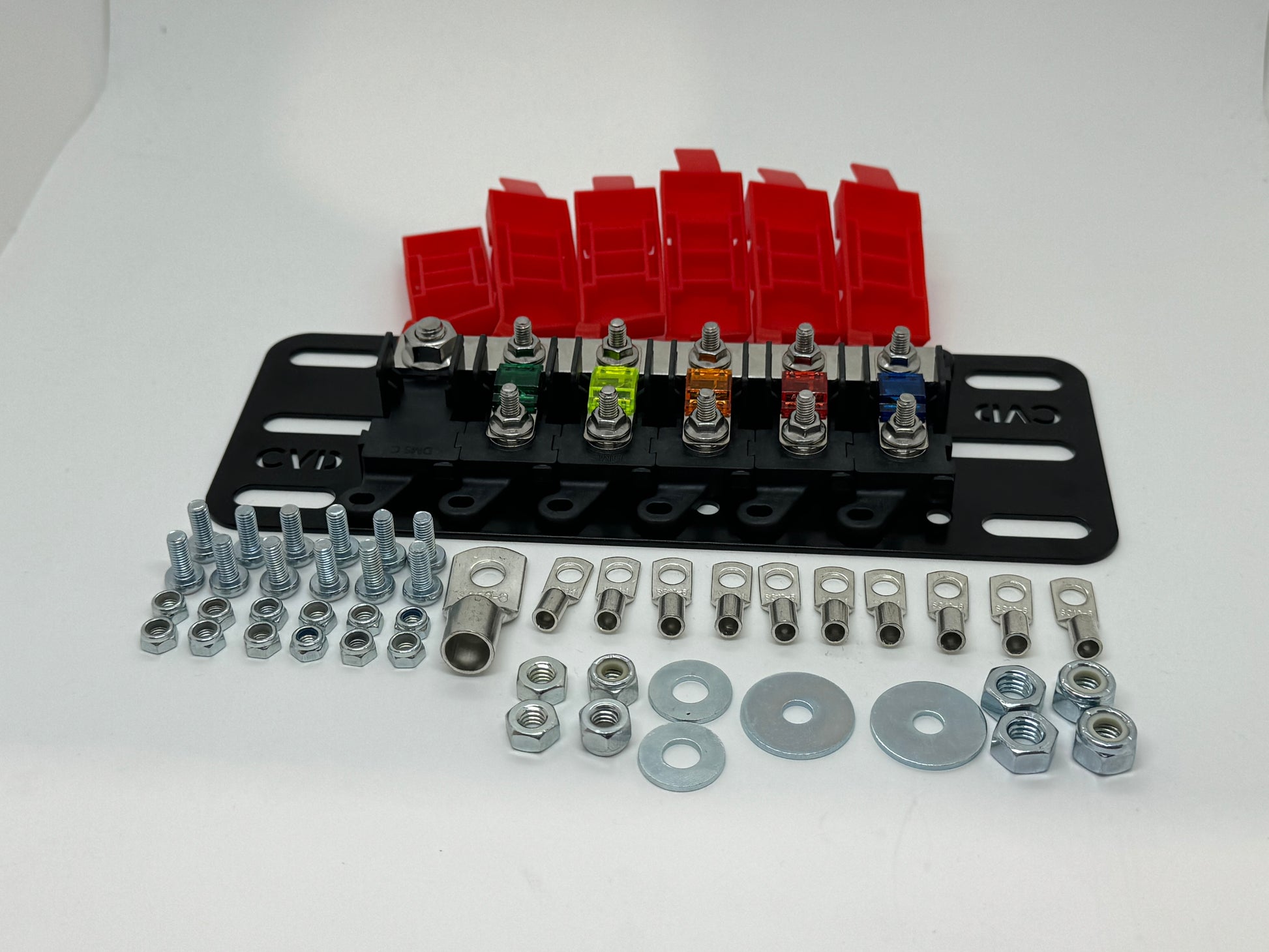

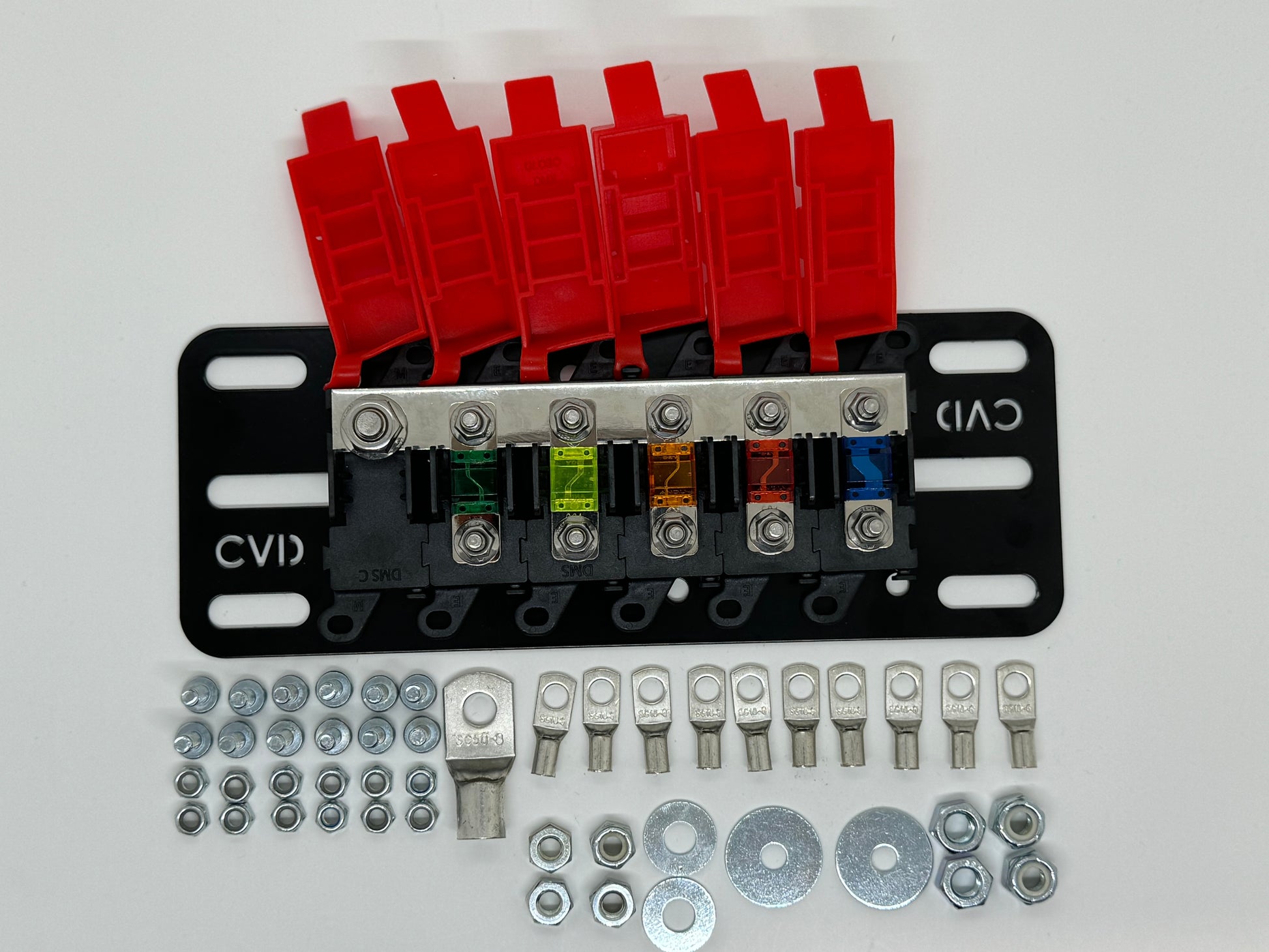

Pictures attached show 5 Midi Fuse Holders + 1 x M8 Post Holder Ideal for over 200A continuous draw across all Midi Fuses
