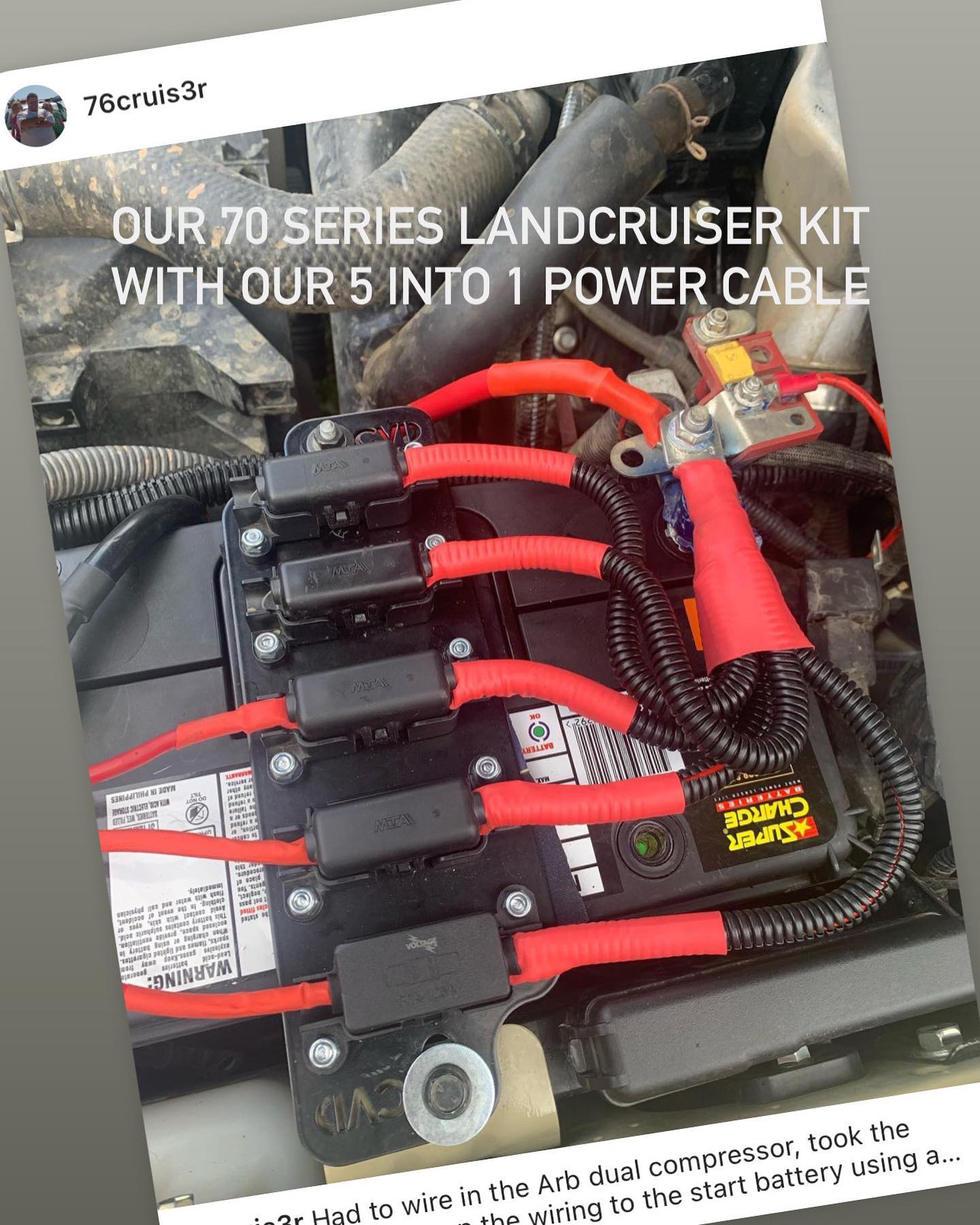

5 Way - Single Midi Fuse Holder - Battery Plate Only

5 Way - Single Midi Fuse Holder - Battery Plate Only

Regular price $48.50 AUD
Regular price Sale price $48.50 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.


(Holds 5 x Single Fuse Holders)

CNC Laser Cut & Powder Coated

Manufactured in Australia

Single Midi Fuse Holders are ideal 12-32v use and fit bolt down Midi fuses with 30mm bolt spacing

Included in this Sale:
1 x Satin Black Fuse Holder Plate
5 x Single Midi Fuse Holders
10 x M6x20mm Phillips Head with Nylock Nuts

Includes both size bolt kits for securing plate to vertical tie-down rods:
2 x 5/16 Nuts & 2 x 5/16 Nylock Nuts + 2 washers
2 x 1/4 Nuts & 2 x 1/4 Nylock Nuts + 2 Washers

1 x Strip of Neoprene Rubber 200mm x 30mm
This Plate can be used as a replacement bracket by using the Neoprene rubber under the plat and removing the factory bracket.

This bracket is for the factory Start battery where it mounts into the internal guard...

Plate will mount to most aftermarket battery brackets suited to N70 or similar size and can also be fitted to Control Panels, Canopies etc...
** Upright battery tie down rods not included and are for demonstration purposes only**

Not suited for Battery with top filler mounts for the 70 Series Landcruiser's.
Suits Flat Top Sealed Batteries due to lower profile and clearance for the bonet...
Please always Check your clearance between fuse holders and the bonnet as each vary slightly and/or have it installed professionally.

Item Descriptions:

Battery Plate
Material: 2mm Plate Steel
Colour: Satin Black
Paint Type: Powder Coated
Description: CNC Laser Cut
Suitable for: 5 x Single Midi Fuse Holders
Battery Type: 12V
Battery Dimensions : 175-187mm (wide)
(Will suit smaller batteries, however the above dimensions are the min-max adjustment in the plate)

Midi Fuse Holders

Material: Black Nylon
Voltage: 32V
Rating: Up to 200A
Studs: M5
Complete with easy clip down cover, Brass Bolts, Flat Washers and Spring Washers

*** Sale is only for Plate and Bolt mounting kit ***
