5 Way - 70 Series Start Battery Midi Fuse Plate Kits
5 Way - 70 Series Start Battery Midi Fuse Plate Kits
Regular price
$150.00 AUD
Regular price
Sale price
$150.00 AUD
Unit price
/
per
SUITS TOYOTA LANDCRUISER 70 SERIES 2007-2024 START BATTERY
CNC Laser Cut & Powder Coated
Manufactured in Australia
Single Midi Fuse Holders are ideal 12-32v use and fit bolt down Midi fuses with 30mm bolt spacing

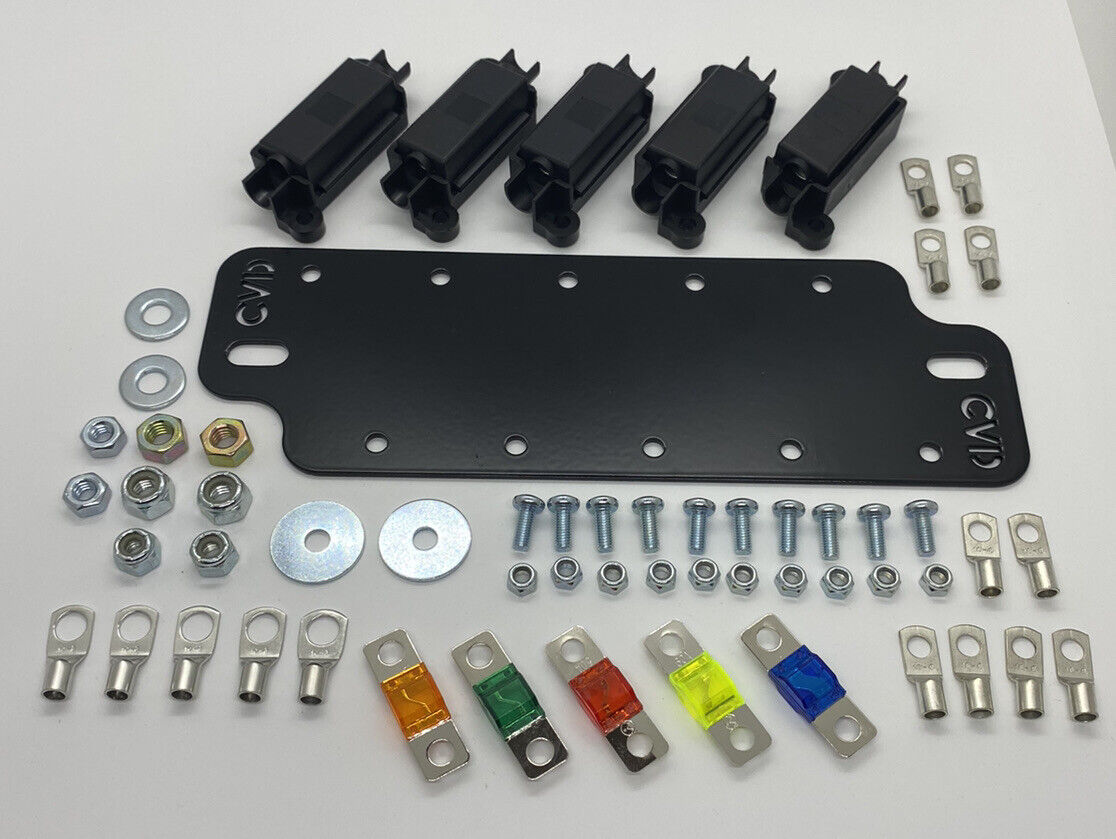

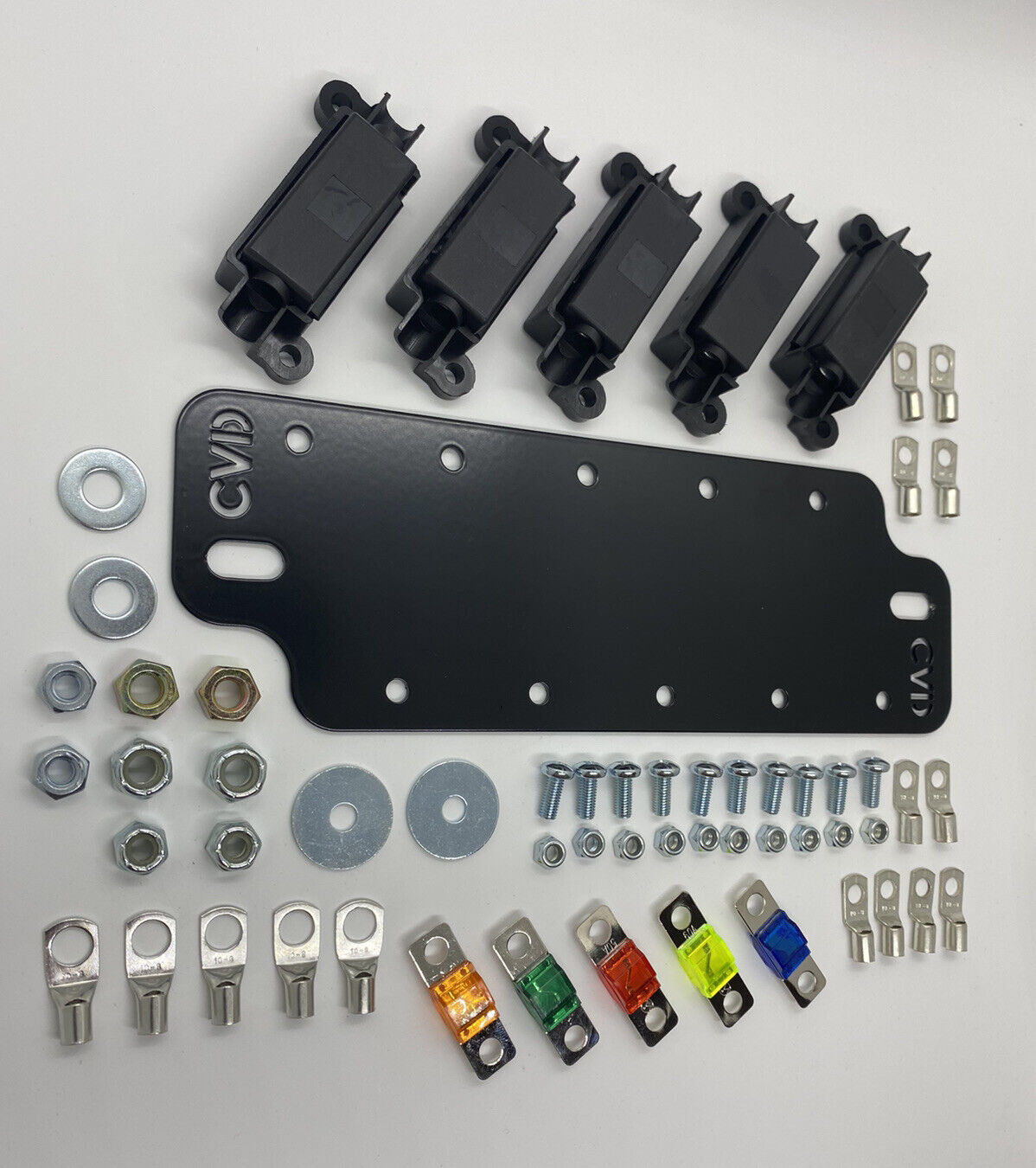

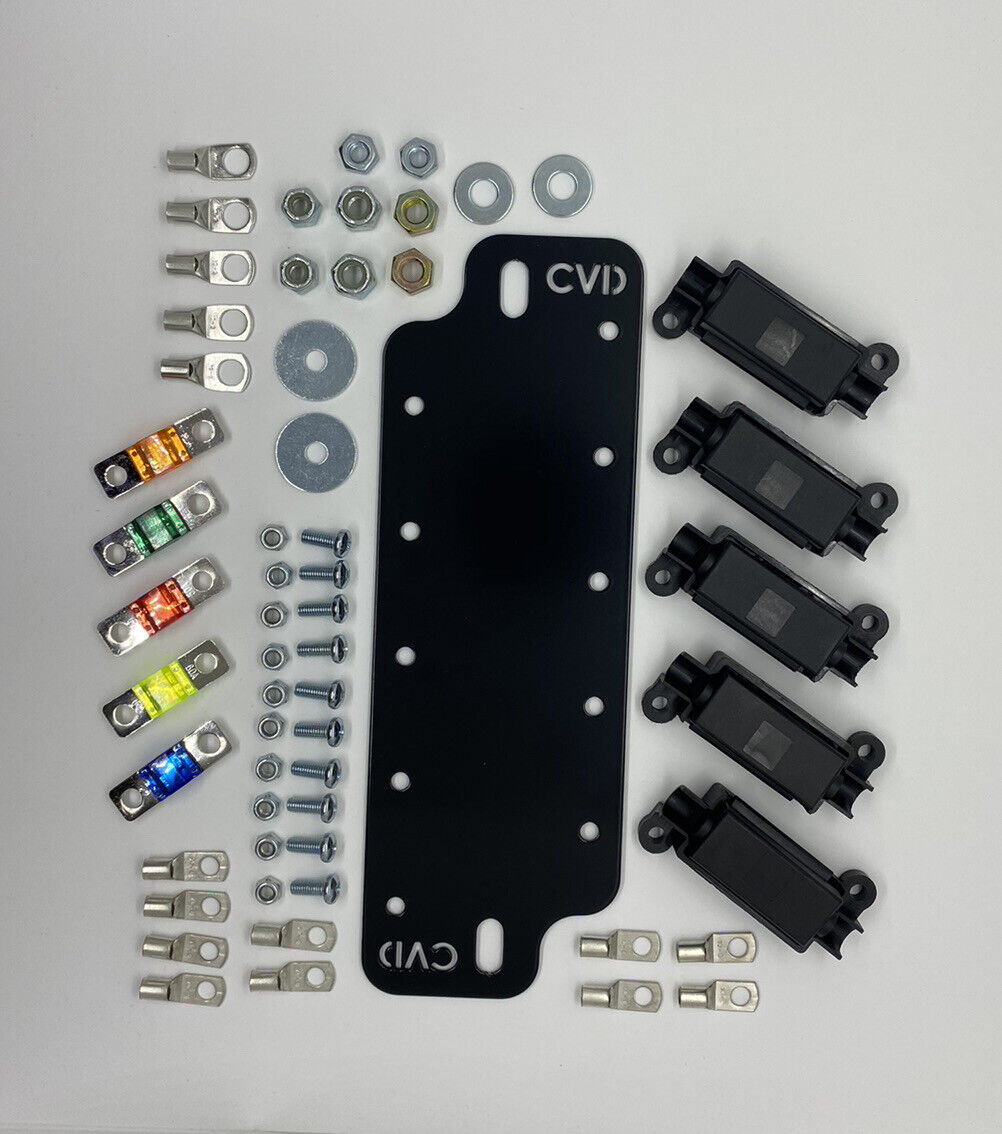

Included in this Sale:
1 x Satin Black Fuse Holder Plate
5 x Single Midi Fuse Holders
5 x Midi Fuses (50A unless requested otherwise) (20,30,40,50,60,100,125,150 & 200A available)
20 x Midi Fuse Connector Lugs (10 x 10-6 & 10 x 16-6)
10 x Battery Terminal Connectors (5 x 10-8 & 5 x 16-8)
10 x M6x20mm Phillips Head with Nylock Nuts
Includes both size bolt kits for securing plate to vertical tie-down rods:
2 x 5/16 Nuts & 2 x 5/16 Nylock Nuts + 2 washers
2 x 1/4 Nuts & 2 x 1/4 Nylock Nuts + 2 Washers
1 x Strip of Neoprene Rubber 200mm x 30mm
This Plate can be used as a replacement bracket by using the Neoprene rubber under the plat and removing the factory bracket.
NOTES:
* This Bracket is for the Factory Start Battery in the VDJ Model 70 Series
* Not suited for Battery with top filler mounts.
Suits Flat Top Sealed Batteries due to lower profile and clearance for the bonet...
* For under bonnet Auxiliary Batteries our standard 4 x Single or 3 x Double Battery plates should suit.
Please always Check your clearance between fuse holders and the bonnet as each vary slightly and/or have it installed professionally.
Item Descriptions:
Battery Plate
Material: 2mm Plate Steel
Colour: Satin Black
Paint Type: Powder Coated
Description: CNC Laser Cut
Suitable for: 5 x Single Midi Fuse Holders
Battery Type: 12V
Battery Dimensions : 194-226mm (wide)
(Will suit smaller batteries, however the above dimensions are the min-max adjustment in the plate)

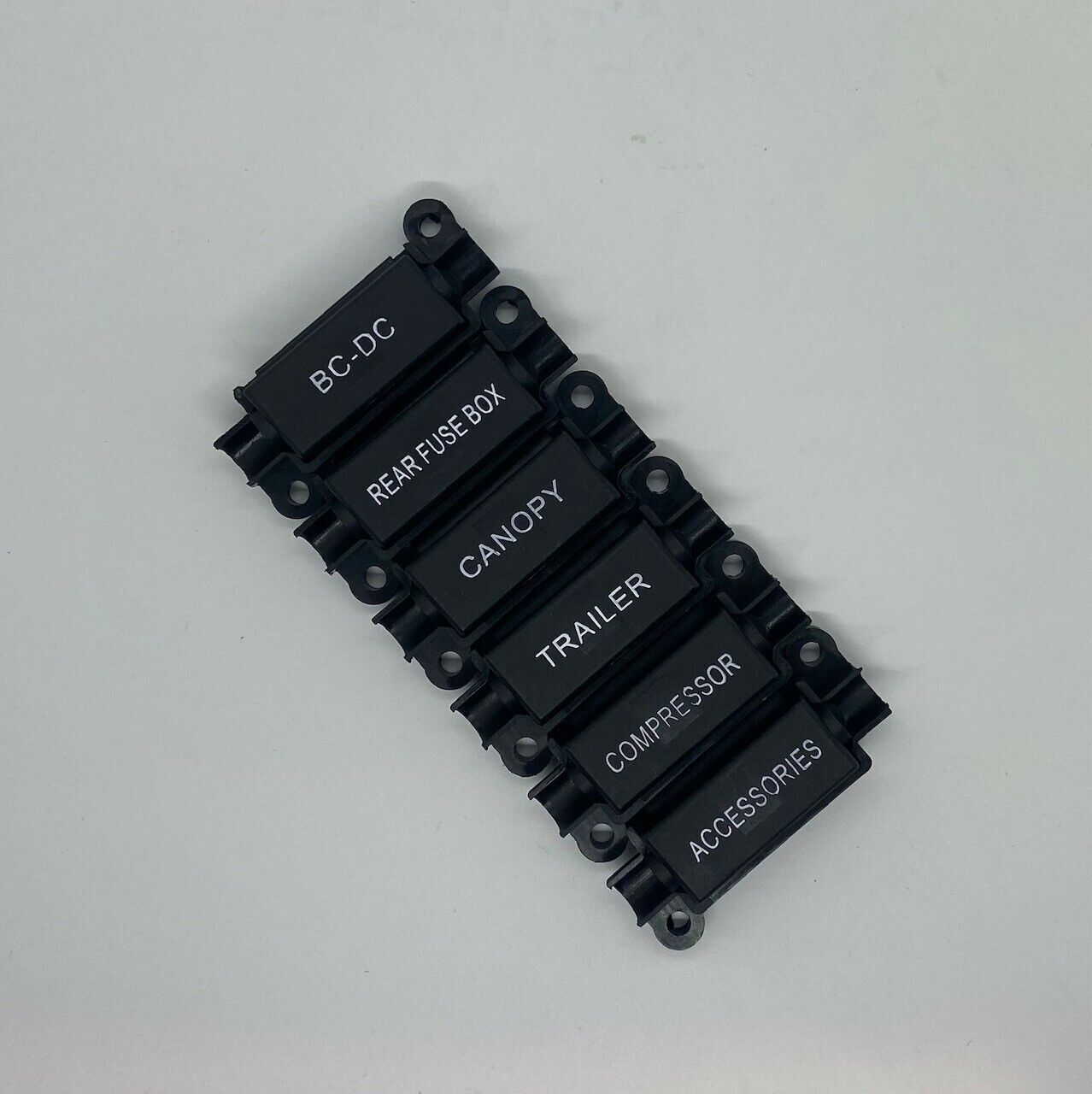

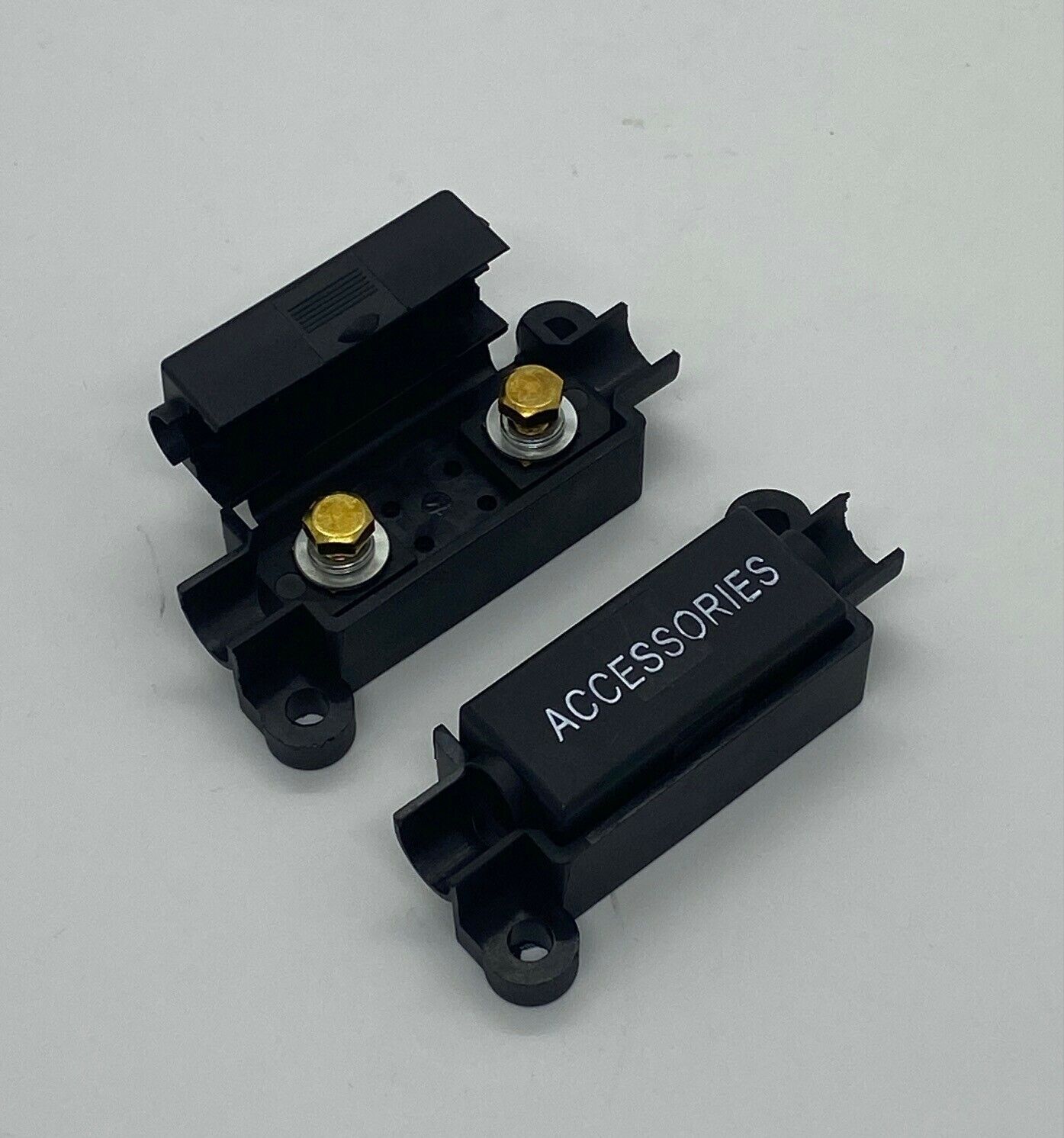

Midi Fuse Holders
Material: Black Nylon
Voltage: 32V
Rating: Up to 200A
Studs: M5
Complete with easy clip down cover, Brass Bolts, Flat Washers and Spring Washers
Additional items you might require can purchased on our additional 'Items for Sale' and shipped with these kits therefore: Tinned Copper Straight joiners, Anderson Plugs, Spare Fuses etc...
