Universal Offset Mounts – MIDI Fuse Holder Plate

(Fits 3 x Double Fuse Holders)

• CNC Laser Cut & Powder Coated

• Proudly Manufactured in Australia

Overview

This Universal Offset Mounting Plate is designed to hold 3 x Double MIDI Fuse Holders, providing a clean and professional solution for managing high-current fusing in 12–32V setups. The plate is precision CNC laser-cut from durable steel and finished in a tough satin black powder coat for long-lasting protection.

Originally designed to suit the offset bracket on the Isuzu D-Max & Holden Colorado, the universal design also makes it suitable for a wide range of battery setups, aftermarket brackets, control panels, and canopies.

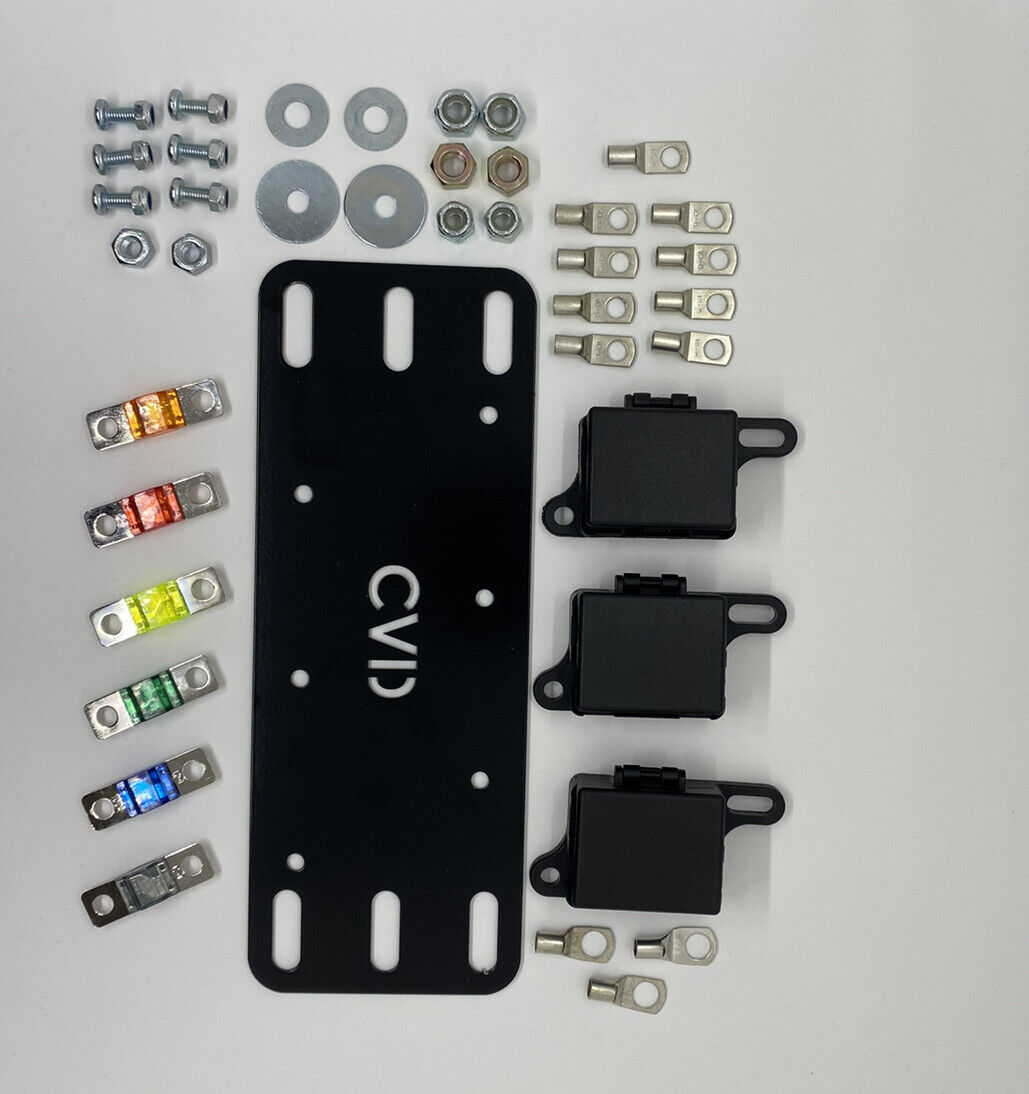

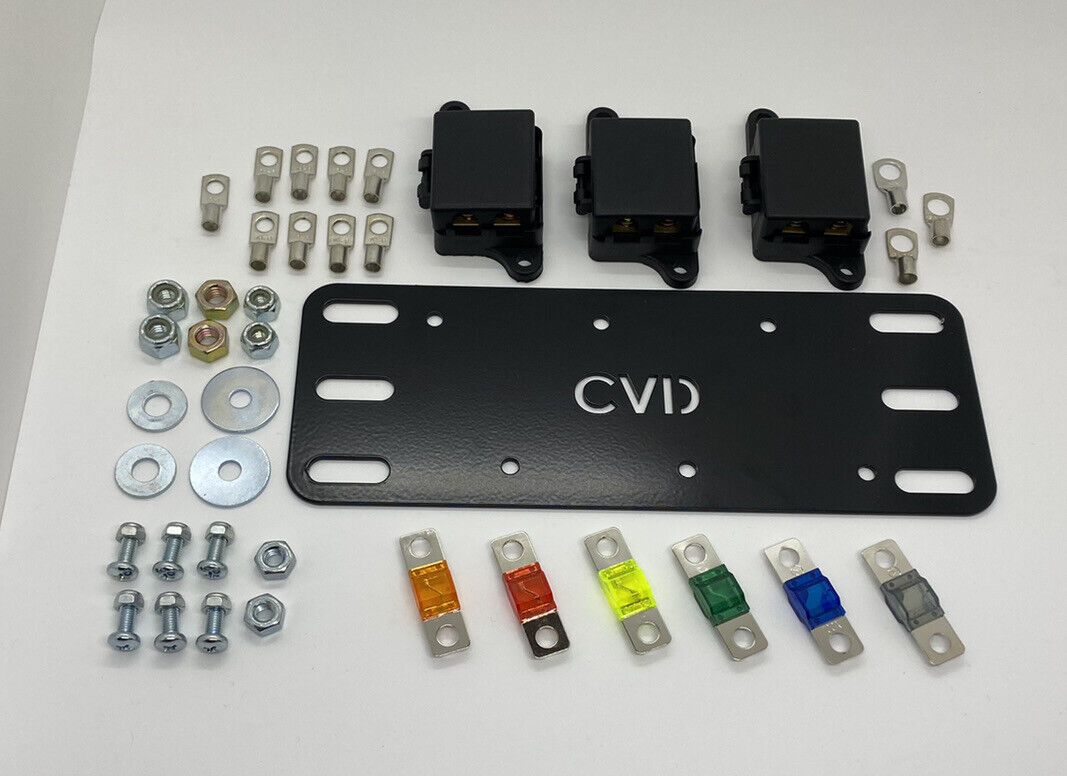

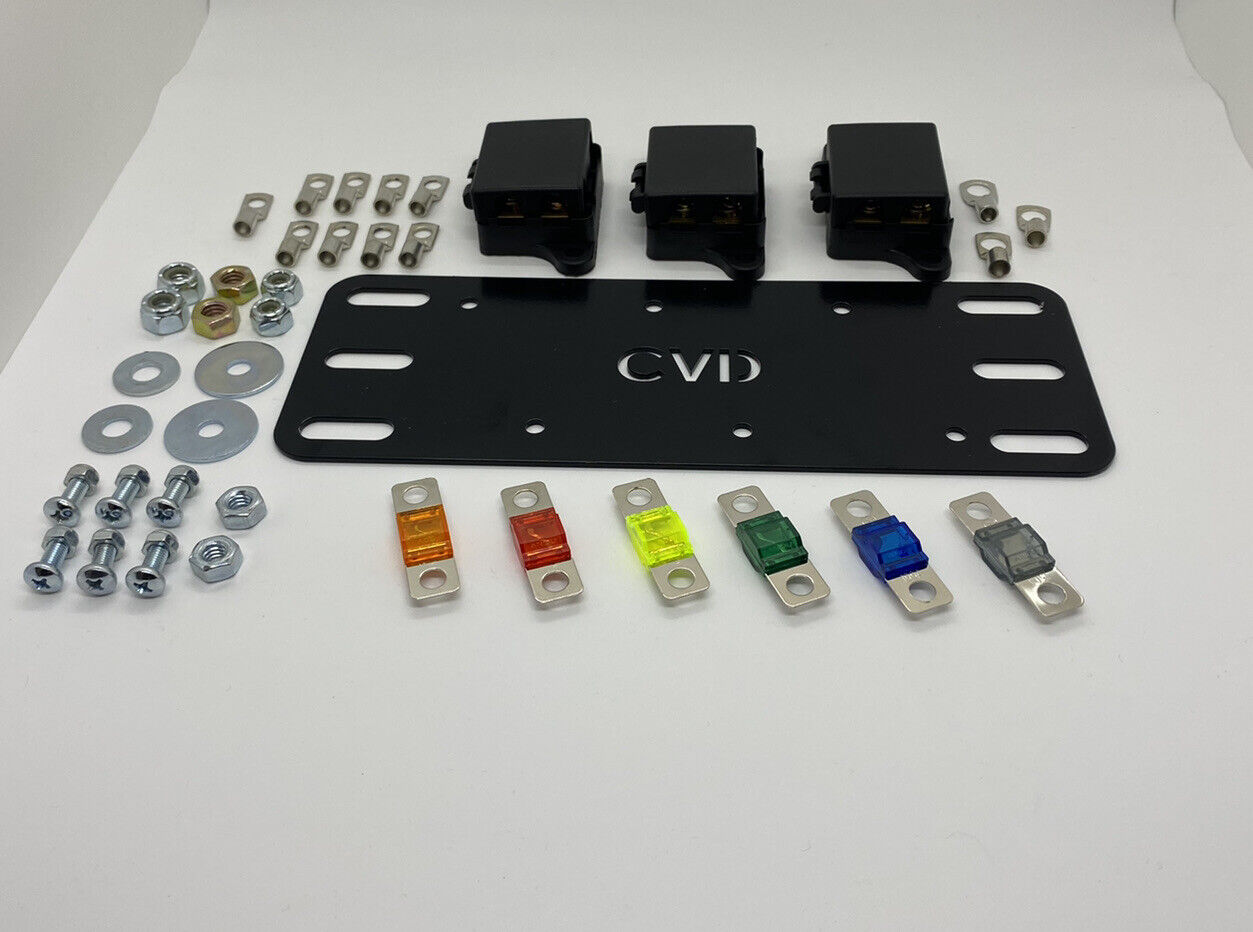

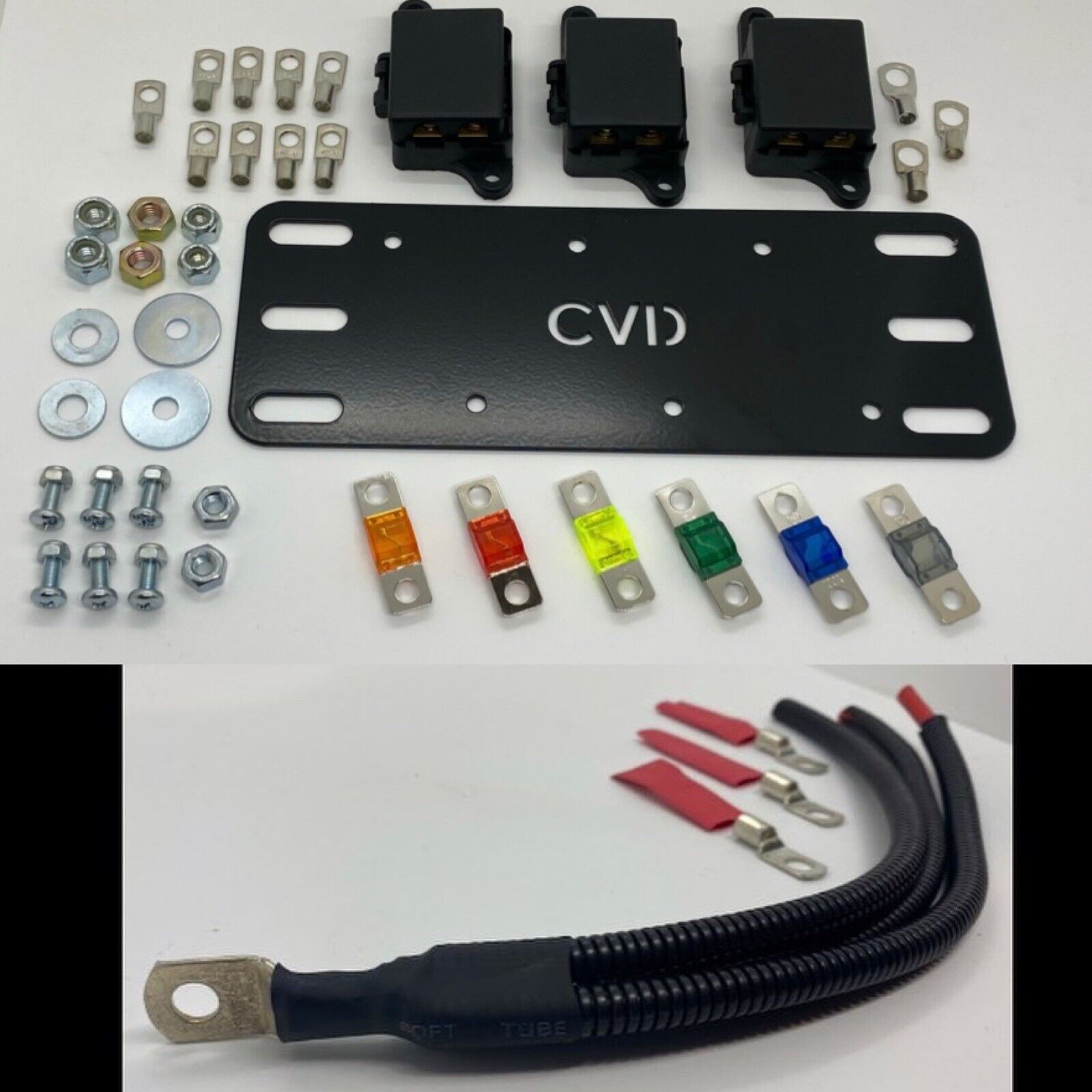

What’s Included

• 1 x Satin Black Quad Fuse Holder Plate

• 3 x Double Offset MIDI Fuse Holders

• 6 x MIDI Fuses (choice of 30A, 40A, 50A, 60A, 100A, 150A)

• 9 x MIDI Fuse Connector Lugs (choice of 10-6 or 16-6)

• 3 x Battery Terminal Connectors (choice of 10-8 or 16-8)

• 6 x M6 x 20mm Phillips Head Bolts with Nylock Nuts

• 2 x 255mm Vertical Upright Tie-Downs

• Bolt Kits for Vertical Tie-Down Rods:

  • 2 x 5/16 Nuts + 2 x 5/16 Nylock Nuts + 2 Washers

  • 2 x 1/4 Nuts + 2 x 1/4 Nylock Nuts + 2 Washers

• 1 x Neoprene Strip (30mm x 6mm) – to be placed between the plate and battery when used as a top bracket replacement.

⚠️ Note: Upright battery tie-down rods are not included and shown for demonstration only.

Specifications

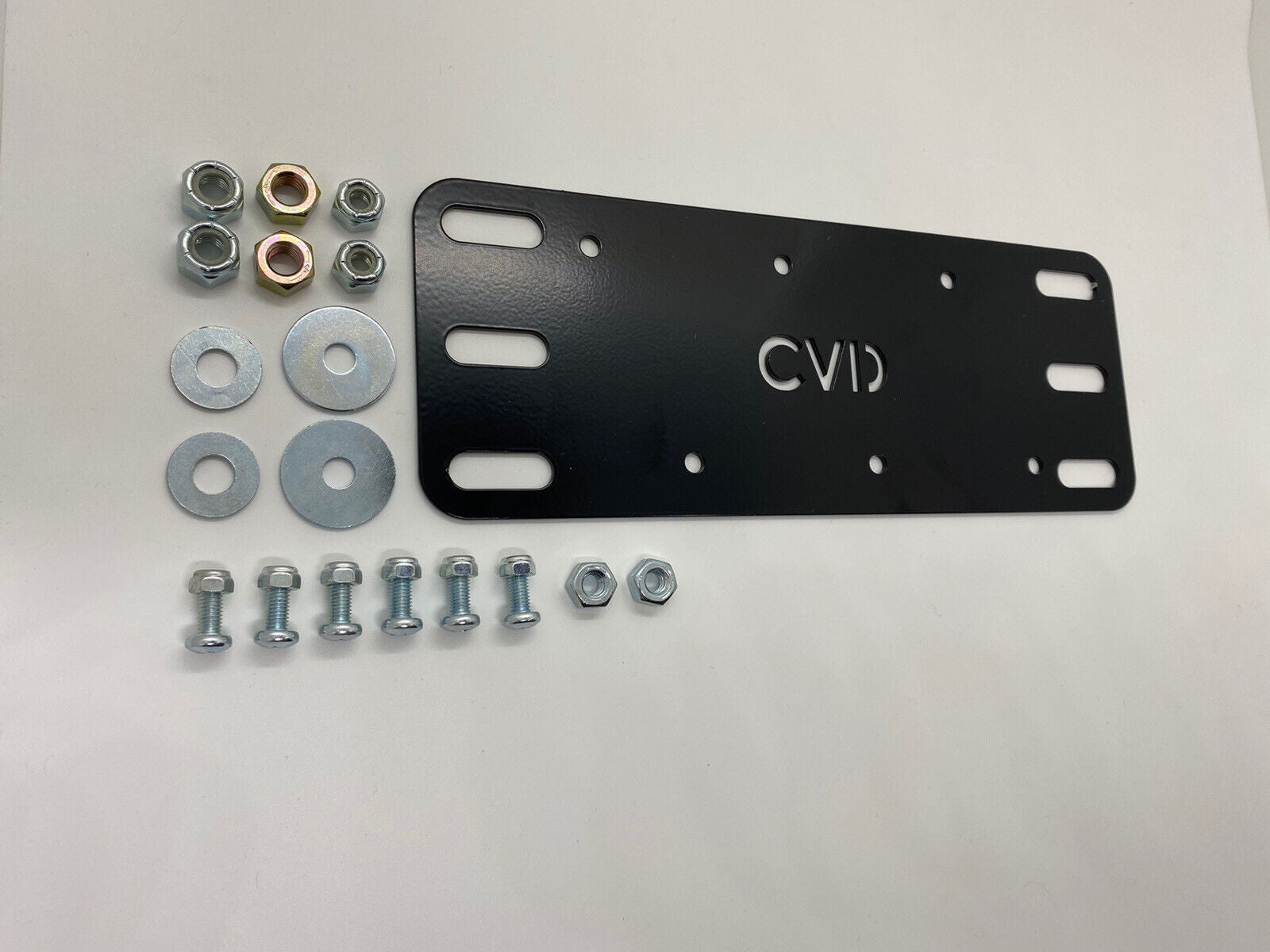

Battery Plate

• Material: 2mm Plate Steel

• Colour: Satin Black

• Finish: Powder Coated

• Process: CNC Laser Cut

• Fuse Holder Capacity: 3 x Double MIDI Fuse Holders

• Suitable Battery Type: 12V

• Battery Dimensions: Adjustable 165–205mm (width)

• Plate Dimensions: 220mm x 84mm

MIDI Fuse Holders

• Material: Black Nylon

• Voltage Rating: Up to 32V

• Current Rating: Up to 200A

• Studs: M5

• Includes: Clip-down protective cover, brass bolts, flat washers, and spring washers

Installation & Compatibility

• Suits most aftermarket battery brackets designed for N70 or similar-sized batteries.

• Can be installed on battery setups, control panels, canopies, or other custom applications.

• Provides additional mounting options compared to standard plates.

Important Notes

• Fuse & Lug Selection: At checkout, specify your preferred fuse ratings and lug sizes.

• Default Supply (if no selection is made):

  • 3 x 40A Fuses + 3 x 50A Fuses

  • 9 x 10-6 MIDI Fuse Lugs

  • 3 x 10-8 Battery Terminal Lugs

• Once a package has been picked and marked as sent, changes cannot be made.
